TM070JDHG30 TIANMA LVDS Interface Industrial TFT Display 7.0Inch 1280x800 Dots WXGA
| Diagonal Size: | 7.0 Inch | Brand: | TIANMA |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 WXGA | View Direction: | Symmetry |
| Outline Dimension: | 161(H)×107(V) Mm | Active Area Size: | 149.76(H)×93.6(V) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) |
| Operating Temp.: | -20 ~ 70 °C | Storage Temp.: | -30 ~ 80 °C |
Model TM070JDHG30
Diagonal Size 7.0 inch
Type a-Si TFT-LCD, LCM
Pixel Format 1280(RGB)×800 [WXGA] 217PPI
Configuration RGB Vertical Stripe
Active Area 149.76(H)×93.6(V) mm
Outline Dim. 161(H)×107(V) mm
Bezel Area 152.76(H)×96.6(V) mm
Treatment Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
View Direction Symmetry
Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Left / Right / Up / Down
Operating Mode SFT, Normally Black, Transmissive
Support Color 16.7M 50% NTSC
Light Source WLED [3S7P] , 30K hours , W/O Driver
Weight 120g (Typ.)
Designed For Industrial , Medical Imaging , VOIP Phone
Frame Rate 60Hz
Touch Panel Without
Interface Type LVDS (1 ch, 8-bit) , 40 pins FPC
Power Supply 3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TM070JDHG30 TIANMA 7.0Inch 1280*800 Dots WXGA Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
TM070JDHG30 TIANMA 7.0Inch 1280*800 Dots WXGA Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
TM070JDHG30 TIANMA 7.0Inch 1280*800 Dots WXGA Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

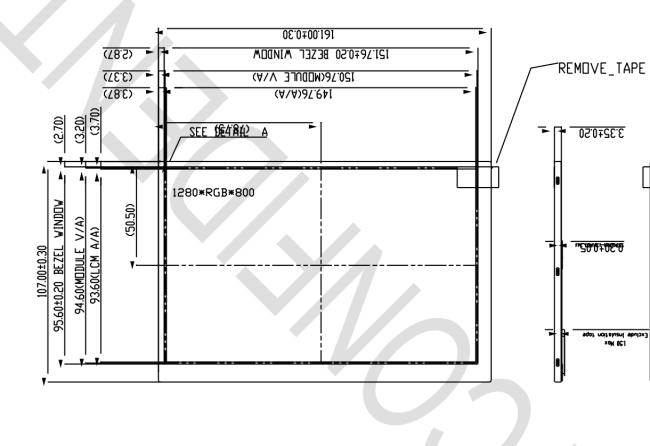

TM070JDHG30 TIANMA 7.0Inch 1280*800 Dots WXGA Industrial TFT Display Mechanical Drawing
