SVGA Industrial TFT lcd display screen EJ080NA-05B CHIMEI INNOLUX 8.0 Inch 800x600 Dots
Panel Size 8.0"
Resolution 800(RGB)×600, SVGA, 125PPI
Display Area 162(W)×121.5(H) mm
Outline Size 183(W)×141(H) ×5.9(D) mm
Brightness 250 cd/m² (Typ.)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Left / Right / Up / Down
Best View on
Display Colors 262K/16.7M 50% NTSC
Frequency 60Hz
Weight 241g (Typ.)
Panel Model EJ080NA-05B
Panel Type a-Si TFT-LCD , LCM
Pixel Format RGB Vertical Stripe
Bezel Opening 164.8(W)×124.3(H) mm
Surface Antiglare
Contrast Ratio 500:1 (Typ.) (TM)
Display Mode TN, Normally White, Transmissive
Response Time 10/15 (Typ.)(Tr/Td)
Lamp Type 3S9P WLED , 20K hours , Without Driver
Touch Screen Without
Application Digital Photo Frame , Portable DVD Player
Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC
Input Voltage 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
EJ080NA-05B CHIMEI INNOLUX 8.0 Inch 800x600 Dots SVGA Industrial TFT Display Applications
Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others
EJ080NA-05B CHIMEI INNOLUX 8.0 Inch 800x600 Dots SVGA Industrial TFT Display Packing term
Protect product with polyfoam and multi layer paper board.
Special protect carton for exporting product,
Per customer requirement.
EJ080NA-05B CHIMEI INNOLUX 8.0 Inch 800x600 Dots SVGA Industrial TFT Display Delivery term
For samples, we will finish production and ship within 7~15 working days. We usually arrange DHL, UPS, FedEx express to ship samples.
For bulk orders, usually 25~35 working days and depends on your design. For bulk orders, we support shipping by air or by sea as per customers' requirements.
Custom design OEM/ODM solutions
We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM products are warmly welcome.
Our Advantages
Prompt reply within 12 hours.
Products with top quality.
Very competitive prices.
Small MOQ accepted.
More than 10 years’ experience in LCD R&D and manufacturing.
Strong R&D term supports perfect customized projects.
Fabulous after-sale service.

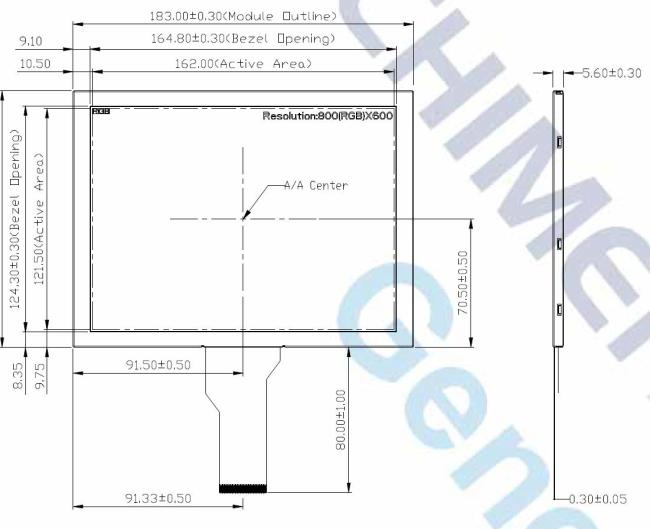

EJ080NA-05B CHIMEI INNOLUX 8.0 Inch 800x600 Dots SVGA Industrial TFT Display Mechanical Drawing
