China 12F Overhead Outdoor Fiber Optic Cable GYXFTY G655 G652D G657A Non Metallic for sale

12F Overhead Outdoor Fiber Optic Cable GYXFTY G655 G652D G657A Non Metallic

Price Negotiable

Price: Negotiable

MOQ: 10000 meter

Delivery Time: Negotiable

Brand: Hochiry

Product Description

Nonmetal G655 G652D G657A 12F Overhead Outdoor Round Fiber Optic Drop Cable GYXFTY

Description:

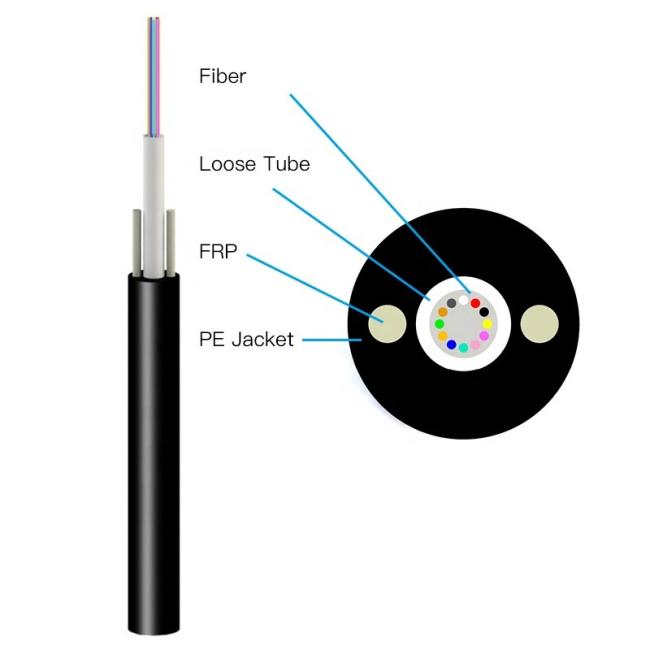

GYXFTY fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member. the cable is completed with a PE sheath. GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application

Features:

1. GYXFTY cable complies with Standard YD/T 769-2003.

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. PSP enhancing moisture-proof

6 . Two parallel steel wires ensure tensile strength

7. Small diameter, light weight and friendly installation

8. Long delivery length

Technical Parameters:

Cable Type	Fiber Count	Cable Diameter	Cable Weight	Tensile Strength	Crush Resistance	Bending Radius
				Long/Short Term	Long/Short Term	Static/Dynamic
		mm	kg/km	N	N/100mm	mm
GYXS/GYXTW-2~12	2~12	10	105	600/1500	300/1000	10D/20D
GYXS/GYXTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-26~36	26~36	14	190	1000/3000	1000/3000	10D/20D
GYXS/GYXTW-38~48	38~48	15	216	1000/3000	1000/3000	10D/20D
