1 Convoluted Industrial Air Springs Holland Neway 90557226 Firestone W013587008
Holland(Neway) 90557226 Firestone W013587008 One Convoluted Industrial Air Springs
Cross Reference
Holland(Neway) 90557226
Firestone:W01-358-7008
Firestone: W01 358 7008
Firestone: W013587008
Firestone: WO13587008
Firestone: WO1 358 7008
Firestone: WO1-358-7008
Firestone: w013587008
Firestone: w01 358 7008
Firestone: w01-358-7008
Contitech: FS 330-11 474
Contitech: FS 330 11 474
Contitech: FD 33011474
Good Year: 1B12-300
Good Year: 1B12-313
Triangle: 6374
Triangle: 4474
The detailed Specifications and techical paremeters:1B5330
Blind Nut
Top plate screw(nut) teeth: 2 x 3 / 8-16UNC
Bottom plate screw(nut) teeth: 2 x 3 / 8-16UNC
Screw center distance: 157.5mm
Cover Plate
Top cover diameter: 9.00 inches / 231 mm
Bottom cover diameter: 9.00 inches / 231 mm
Air Inlet/Air Hole/Air Fittings
1/4 N P.T.F.
The air hole distance between the nuts: 73mm
Rubber Bellows
The Max. diameter: 325mm
Height/Working stroke
Minimum height: 55mm
Maximum height:160mm
Bumper block
Without
Belt loop/Girdle ring/Girdle hoop
Without
Min. pressure: 0 bar
Return force to min. height: ≤300N
Overall weight with clamped plates: 4.1kg
|
Vibration isolation - dynamic characteristic values Design height H: recommended 130mm, minimum 100mm |
|||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Force (Load) [kN] | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29 | 7 |
| Spring rate [N/mm] | 264.5 | 329 | 393.5 | 458 | 522.5 | 587 | 7 |
| Natural frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 | 7 |
|
1B5530 Pneumatic application - static characteristic values Force F [kN] |
|||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | |
| Height H [mm] | 140 | 9.46 | 12.7 | 15.8 | 19.5 | 22.8 | 26 |
| 120 | 11.9 | 15.7 | 19.6 | 23.8 | 27.8 | 31.8 | |
| 100 | 13.6 | 18.1 | 22.7 | 27.6 | 32.1 | 36.7 | |
Other types of Firestone replacement we could provide
W01-358-7995 W01-358-9106 W01-M58-0780 W01-095-0207 W01-358-7996 W01-358-9113 W01-M58-0781 W01-095-0211 W01-358-8006 W01-358-9116 W01-M58-0918
W01-095-0212 W01-358-8008 W01-358-9118 W01-M58-0919 W01-095-0226 W01-358-8010 W01-358-9121 W01-M58-6165 W01-095-0228 W01-358-8016 W01-358-9122 W01-M58-6166
W01-095-0229 W01-358-8025 W01-358-9135 W01-M58-6223 W01-095-0244 W01-358-8027 W01-358-9141 W01-M58-6224 W01-095-0245 W01-358-8030 W01-358-9144 W01-M58-6237
W01-095-0294 W01-358-8050 W01-358-9148 W01-M58-6238 W01-095-0295 W01-358-8052 W01-358-9149 W01-M58-6251 W01-095-0375 W01-358-8053 W01-358-9152 W01-M58-6252
W01-095-0382 W01-358-8058 W01-358-9156 W01-M58-6254 W01-095-0429 W01-358-8088 W01-358-9158 W01-M58-6260 W01-095-0435 W01-358-8091 W01-358-9164 W01-M58-6267

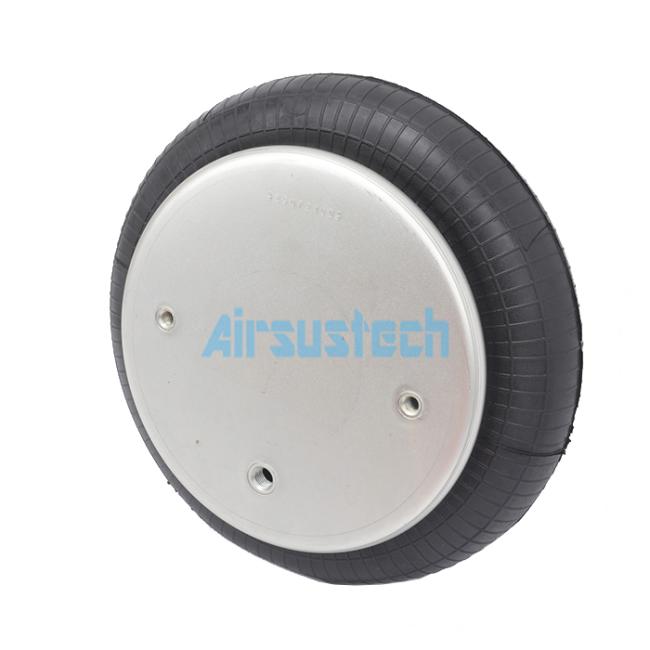

The reated picture of 1B5330 air spring/shock absorbers/air suspension spring
