SP1542 Triple Convolutions Air Spring 12''×3 Firestone W01R584062 Dunlop Spring Ride
12''×3 Firestone W01R584062 DUNLOP SPRINGRIDE SP1542 Triple Convolutions Air Spring
OEM Cross reference
Firestone W01R584062
Firestone W01 R58 4062
Firestone W01-R58-4062
Firestone WO1-R58-4062
Firstone WO1 R58 4062
Firestone WO1R584062
DUNLOP SPRINGRIDE SP1542
DUNLOP PNEURIDE 12" x 3
CONTITECH FT 412-32 DS
Contitech FT 412-32 DS G 1/2
Contitech 66339
Contitech FT412-32DSG1/2
NORGREN M/31123
PARKER 9109051
Specifications and Detailed Technical Parameters: M/31123
BELLOWS TYPE: Triple Convolutions
AIR INLET TYPE: Metric
Nut/blind nut
Top plate screw (nut) teeth: 4pcs X M10
Bottom cover plate screw (nut) teeth: 4pcs X M10
Air hole/air inlet/air fittings
Air hole/air inlet: G1/2
Rubber Bellows
Top plate diameter (width): 260mm
Diameter (width) of the bottom cover plate: 260mm
Space required ⌀D [mm]: 345
Hmin [mm]: 100
Hmax [mm]: 430
Stroke [mm]: 330
Hstat [mm]: 250
Bumper block/bumper block
Without bumper block
Belt loop/Girdle hoop/Girdel ring
Two pieces of belt loop/girdle hoop/girdle ring
Other types of similar air springs and the corresponding OEM number
|
FIRESTONE |
DUNLOP PNEURIDE |
DUNLOP SPRINGRIDE |
CONTITECH |
NORGREN |
PARKER |
|
W01R584063 |
14" 1/2 x 1 |
SP1543 |
FS 614-13 DS |
M/31141 |
9109064 |
|
W01R584064 |
14" 1/2 x 2 |
SP1556 |
FD 614-26 DS |
M/31142 |
9109061 |
|
W01R584065 |
14" 1/2 x 3 |
SP1558 |
FT 614-36 DS |
M/31143 |
9109069 |
|
W01R584066 |
16" x 1 |
|
FS 816-15 DS |
M/31161 |
9109026 |
|
W01R584067 |
16" x 2 |
SP1557 |
FD 816-30 DS |
M/31162 |
9109171 |
|
W01R584068 |
16" x 3 |
SP2141 |
FT 816-40 DS |
M/31163 |
9109177 |
|
|
21" 1/2 x 2 |
SP1408 |
|
M/31212 |
9109153 |
|
|
26" x 2 |
SP2342 |
|
M/31262 |
9109159 |
Shipping
We ship the goods by sea, by air, by railway, by express, such as UPS, FedEx, DHL and so on. Also, we could ship the goods as per your requirements.

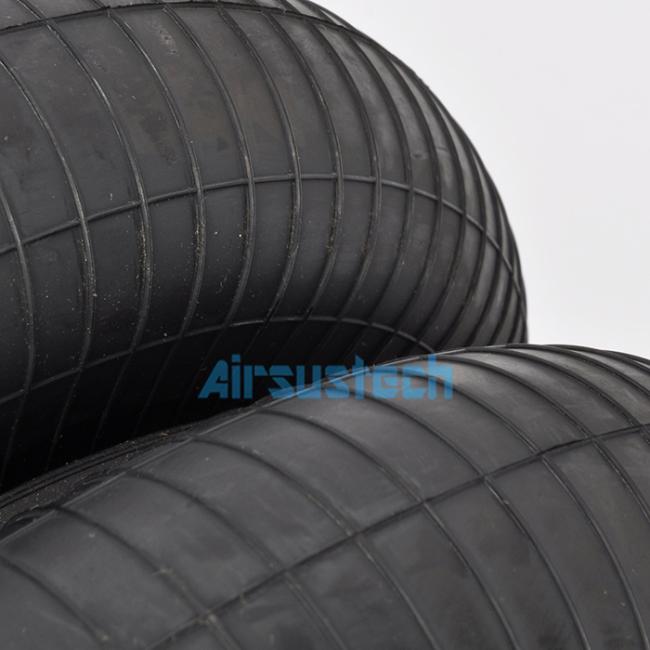

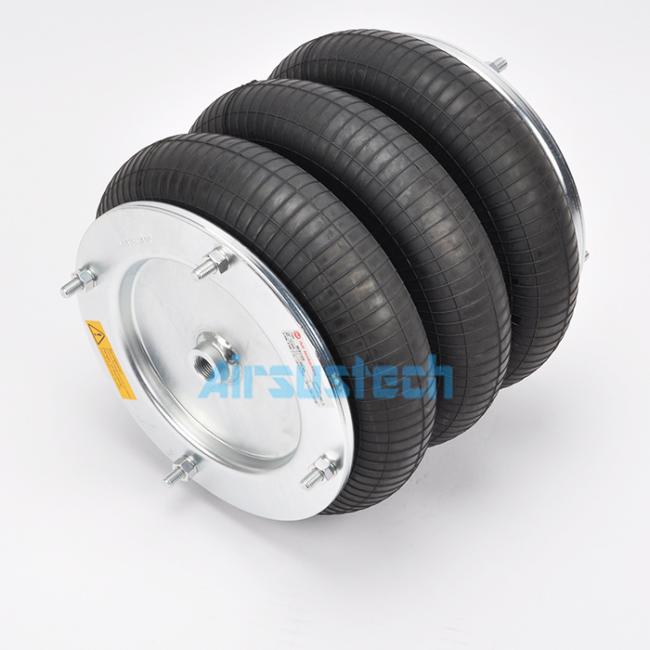

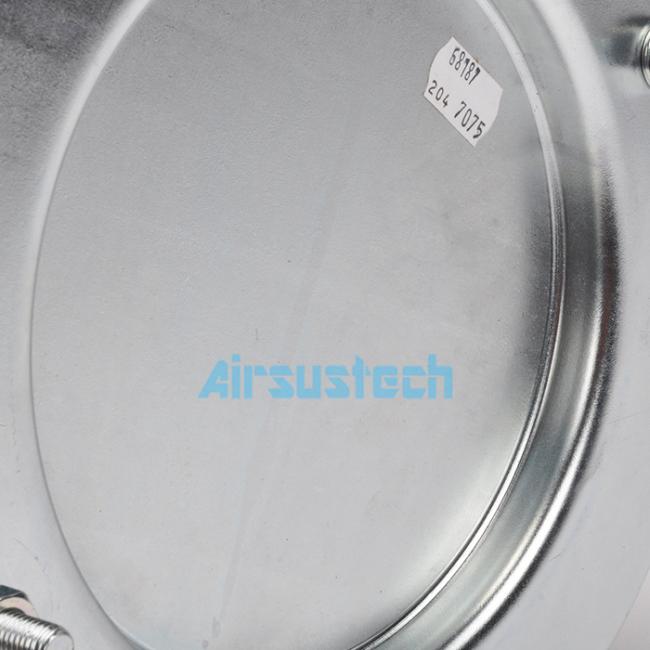

The related picture of M/31123
FAQ
Are air bag suspensions reliable?
Are air bag suspensions reliable? Yes, definitely. In most cases, properly maintained air bag suspensions can actually last longer than other types of suspensions from the market.
What is a convoluted air spring?
Convoluted air springs are generally used for lifting axles and preserve the tires when the vehicle is empty. Aside from that, they are also utilized in industrial applications as pneumatic lift cylinders or suspension elements to absorb vibrations. These air springs are easy to mount and they last long.
What is the principle of air spring?
Because an air spring consists of a closed volume of air, the compression of the air spring (jounce travel) will cause an increase in pressure, while the extension of the air spring (rebound travel) will cause a decrease in pressure.
