F-550-3 Cross Yokohama Air Spring S-550-3R Air Pneumatic Parts
Air Pneumatic Parts F-550-3 Cross Yokohama S-550-3R Rubber Air Spring
Punch airbag, also known as punch air tire, punch air spring, punch air die pad, punch air cushion, punch corrugated air tire, punch corrugated airbag, punch buffer, punch Air spring, punch airbag shock absorber, punch stroke adjuster, punch Air Suspension, Punch Shock Absorber.
The characteristics of the punch airbag generally include the following:
(1) No maintenance or lubrication is required;
(2) Soft medium, without friction effect, with bending ability and relatively compact original height;
(3) The cost is relatively low, and there are many specifications, and the service life is very long.
OEM Cross reference:
AIRSUSTECH Part No.: F-550-3
YOKOHAMA S-550-3R
YOKOHAMA S 550 3R
YOKOHAMA S-550-3
YOKOHAMA S550-3
YOKOHAMA S 550 3
YOKOHAMA S550-3R
Specifications and Detailed Technical Parameters: F-550-3
Design Height: 160mm
Max. Height: 270mm
Min Height: 90mm
Common Maximum Travel(mm): ±68
The Largest Diameter When Compressed(mm):610
Standard Height,Internal Pressure 0.49 M pa When The General Value
Effective Area (Cm2): 2380
Volume(L): 37
Load (KN):116.7
Dynamic Spring Parameters (N/Min): 1481
Vibration Frequency (Hz): 1.8
Using Maximum Internal Pressure (M pa): 0.69
Internal Pressure (M pa): 3.9-4.9
Other types of triple intricate air springs we could offer
|
GUOMAT Part NO. |
Japan YOKOHAMA Reference No. |
Japan YOKOHAMA Reference No. |
|
F-600-3 |
S-600-3R |
S 600 3R |
|
F-500-3 |
S-500-3R |
S 500 3R |
|
F-450-3 |
S-450-3R |
S 450 3R |
|
F-400-3 |
S-400-3R |
S 400 3R |
|
F-350-3 |
S-350-3R |
S 350 3R |
|
F-300-3 |
S-300-3R |
S 300 3R |
|
F-240-3 |
S-240-3R |
S 240 3R |
|
F-220-3 |
S-220-3R |
S 220 3R |
|
F-200-3 |
S-220-3R |
S 220 3R |
|
F-160-3 |
S-160-3R |
S 160 3R |
|
F-120-3 |
S-120-3R |
S 120 3R |
|
F-100-3 |
S-100-3R |
S 100 3R |
|
F-90-3 |
F-90-3R |
S 90 3R |
Packaging & delivery
Packaging Details
Strong cartons.Generally for common packs but if clients need special package, just contact us.
Delivery time: 15 working days
Shipping: by sea,by train, by air, by express or as customers' requirements
Port: Huangpu, Guangzhou or others

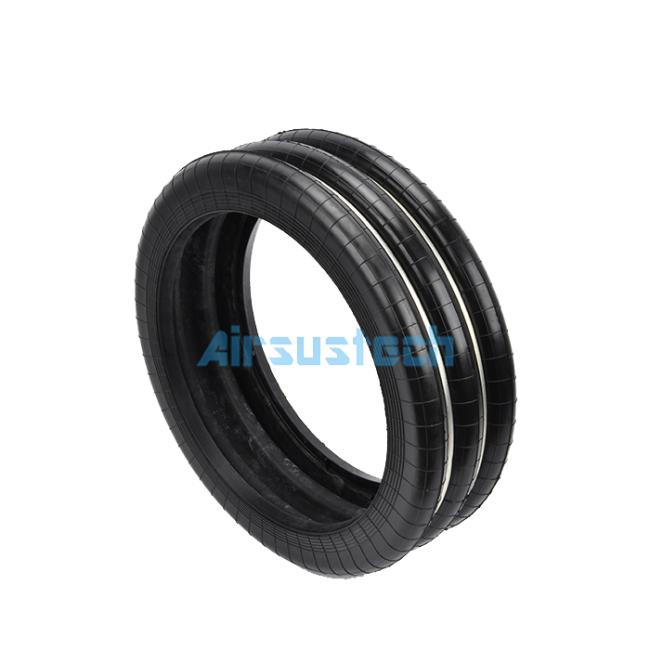

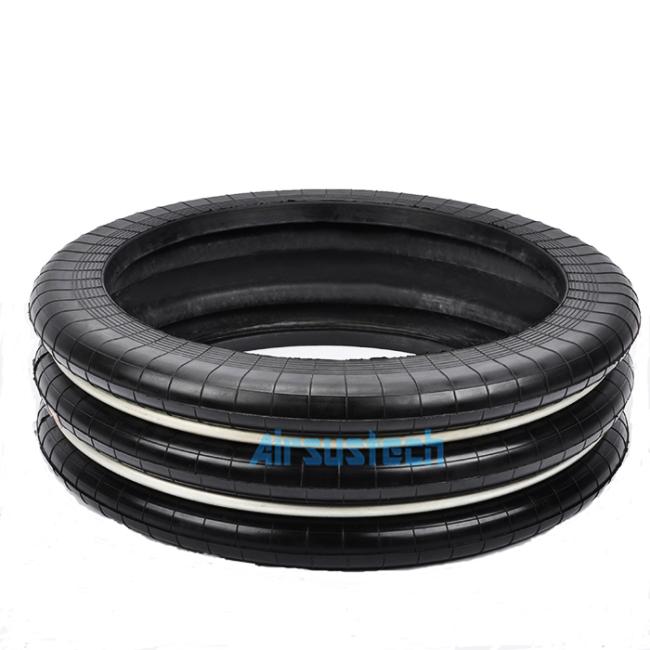

The related picture of F-550-3
