F-90-3 Triple Convoluted Air Spring Cross Yokohama S-90-3R S90-3 Pneumatic
F-90-3 Triple Convoluted Punch Press Air Spring Cross Yokohama S-90-3R/S90-3 Pneumatic Air Suspension
OEM Cross reference
AIRSUSTECH Part No.: F-90-3
YOKOHAMA S-90-3R
YOKOHAMA S 90 3R
YOKOHAMA S-90-3
YOKOHAMA S 90 3
YOKOHAMA S90-3
YOKOHAMA S 90 3
YOKOHAMA S90-3R
Replaces these punch press air springs
Specifications and Detailed Technical Parameters: F-90-3 pneumatic air suspension
This type of air spring is self seal. The number of convolution is three, with ring, without plate
|
Guomat No. |
Yokohama No. |
Height |
Maximum stroke(mm) |
Max diameter(mm) |
||
|
Design Height(mm) |
Max. Heigh(mm)t |
Min Height(mm) |
||||
|
F-90-3 |
S-90-3R |
76 |
106 |
46 |
±30 |
125 |
|
Standard Height,Internal Pressure 0.49 Mpa |
|
|
||||
|
Effective Area (cm2) |
Volume(L) |
Load (KN) |
Dynamic Spring Parameters (N/mm) |
Natural Frequency (Hz) |
Max inner preesure limited (Mpa) |
Burst inner pressure (Mpa) |
|
63.5 |
0.5 |
3.1 |
103 |
2.9 |
0.88 |
3.9-4.9 |
Features of punch airbag F-90-3
Low cost and wide range of specifications
Long service life, no maintenance and lubrication, no internal levers or pistons
No friction effect, soft media
Bending capacity, side load capacity, compact original height
About us
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City.
Main products: industrial air springs (including single convoluted air springs, double convoluted air springs, triple convoluted air springs and airbags for punching equipment), bus and truck air springs, cab air springs, passenger car air springs, and air pumps. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
Our advantage
Complete product specifications to meet the needs of different people
Strong production vision,
Good product quality and high reputation
good after-sales service

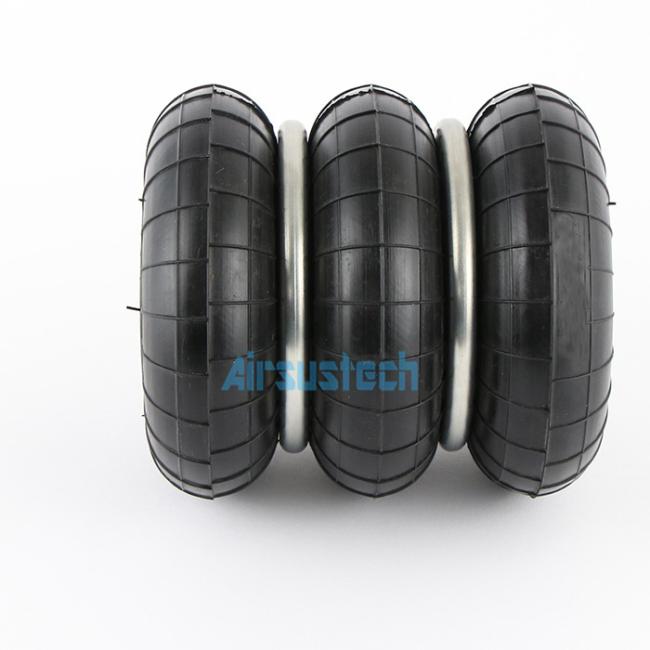

The related picture of F-90-3
