Punch Press Shock Balloon F-500-5 Yokohama Air Spring S-500-5R S500-5
F-500-5 Air Bellow Suspension Yokohama S-500-5R/S500-5 Rubber Air Spring
OEM Cross reference
AIRSUSTECH Part No.: F-500-5
YOKOHAMA S-500-5R
YOKOHAMA S 500 5R
YOKOHAMA S-500-5
YOKOHAMA S 500 5
YOKOHAMA S500-5
YOKOHAMA S 500 5
YOKOHAMA S500-5R
Replaces these punch press air springs
Specifications and Detailed Technical Parameters: F-500-5 pneumatic air suspension
This type of air spring is self seal. The number of convolution is five, with 4 pieces of ring, without plate
|
Guomat No. |
Yokohama No. |
Height |
Maximum stroke(mm) |
Max diameter(mm) |
||
|
Design Height(mm) |
Max. Heigh(mm)t |
Min Height(mm) |
||||
|
F-500-5 |
S-500-5R |
276 |
456 |
156 |
±113 |
560 |
|
Standard Height,Internal Pressure 0.49 Mpa |
|
|
||||
|
Effective Area (cm2) |
Volume(L) |
Load (KN) |
Dynamic Spring Parameters (N/mm) |
Natural Frequency (Hz) |
Max inner preesure limited (Mpa) |
Burst inner pressure (Mpa) |
|
1960 |
54.0 |
96.3 |
706 |
1.4 |
0.69 |
3.9-4.9 |
Other types of Yokohama air spring replacement we have
S-50-2R; S-50-2; S 50 2
S-50-3R; S-50-3; S 50 3
S-60-2R; S-60-2; S 60 2
S-60-3R; S-60-3; S 60 3
S-60-4R; S-60-4; S 60 4
S-730-1R; S-730-1; S 730 1R
S-730-2R; S-730-2; S 730 2R
S-730-3R; S-730-3; S 730 3R
S-730-4R; S-730-4; S 730 4R
S-730-5R; S-730-5; S 730 5R
S-730-6R; S-730-6; S 730 6R
Advantages of Punch Press Shcok Balloon
1. The air spring of the punch has excellent anti-vibration and noise reduction efficiency. The shock absorber has a natural frequency of 3 Hz to 5 Hz and a damping coefficient of 0.12 to 0.13. Low natural frequency design, good anti-vibration effect.
2. The punch air spring can effectively avoid resonance.
3. The punch air spring has higher stability and safety. The punch air spring is mainly designed with natural rubber as the main body to eliminate the adverse effects caused by accidental contact and ensure the stability and safety of the product during use.
4. The punch air spring has strong versatility and can easily install machines of different specifications. Vibration suitable for vibrating equipment, can be applied to many equipment.
5. The height adjustment of the punch air spring is very convenient. The height of the machine can be easily adjusted with a simple inflation and deflation, which is very simple.
6. The air spring of the punch is easy to install and maintain.

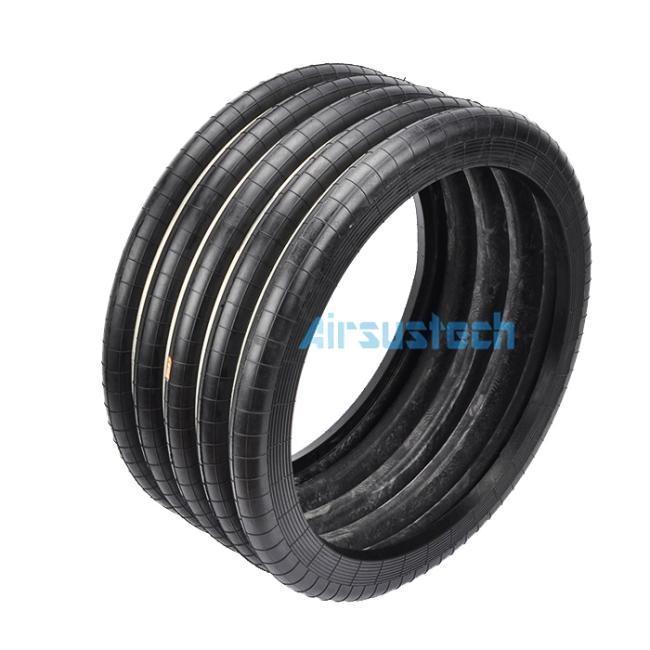

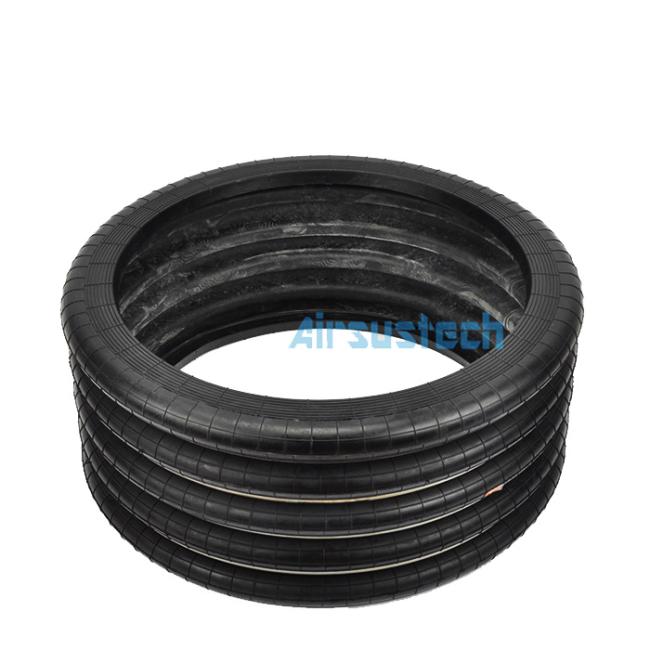

The related picture of F-500-5
