4 Rings Sealed Air Bag F-450-5 Yokohama S-450-5R S450-5 Rubber Air Spring
4 Rings Sealed Air Bag F-450-5 Yokohama S-450-5R/S450-5 Rubber Air Spring
OEM Cross reference
AIRSUSTECH Part No.: F-45-5
YOKOHAMA S-450-5R
YOKOHAMA S 450 5R
YOKOHAMA S-450-5
YOKOHAMA S 450 5
YOKOHAMA S450-5
YOKOHAMA S 450 5
YOKOHAMA S450-5R
Replaces these punch press air springs
Specifications and Detailed Technical Parameters: F-450-5 pneumatic air suspension
This type of air spring is self seal. The number of convolution is five, with 4 pieces of ring, without plate
|
Guomat No. |
Yokohama No. |
Height |
Maximum stroke(mm) |
Max diameter(mm) |
||
|
Design Height(mm) |
Max. Heigh(mm)t |
Min Height(mm) |
||||
|
F-450-5 |
S-450-5R |
276 |
456 |
156 |
±113 |
510 |
|
Standard Height,Internal Pressure 0.49 Mpa |
|
|
||||
|
Effective Area (cm2) |
Volume(L) |
Load (KN) |
Dynamic Spring Parameters (N/mm) |
Natural Frequency (Hz) |
Max inner preesure limited (Mpa) |
Burst inner pressure (Mpa) |
|
1590 |
43.6 |
80.0 |
588 |
1.4 |
0.69 |
3.9-4.9 |
Other sealed air bags we could provide
300X2RX1
300X3RX2
300X4RX3
450X2RX1
450X3RX2
450X4RX3
450X5RX4
400X2RX1
400X3RX2
400X4RX3
500X3RX2
500X4RX3
500X5RX4
600X3RX2
600X4RX3
600X5RX4
Punch air spring is the first - class sound - proof shock absorber
When the punch equipment is working, the vibration and noise are very large. Excessive vibration noise not only damages the physical health of the field staff, damages the equipment, but also impresdes the normal rest of the nearby residents. It cannot pass the inspection standards of the environmental protection department. Air spring for punch equipment is a kind of efficient shock absorber with compressed air as the medium. In simple terms, it is composed of the upper and lower end covers of oil and the rubber bag in the middle. Air spring before work, need to inflate its internal, after the completion of inflation, can be said to punch equipment is basically suspended in the air, connected to the ground only air and bellow.
Application
Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, vehicles, (automobiles, motorcycles, bicycles) hardware parts and so on
Payment, Packing and Shipping
Payment: we could accept T/T, Western Union, Paypal or Others.
Packing: We pack the goods in strong cartons. It is neutral box or as customers' request
Shipping
- For small batches of goods, we generally use international express delivery methods, such as Federal, DHL, UPS or other designated shipping methods. Door to door or warehouse to door service.
- For large quantities of goods, we can ship them by sea or other shipping methods. The terms can be FOB, CNF, CIF or others.

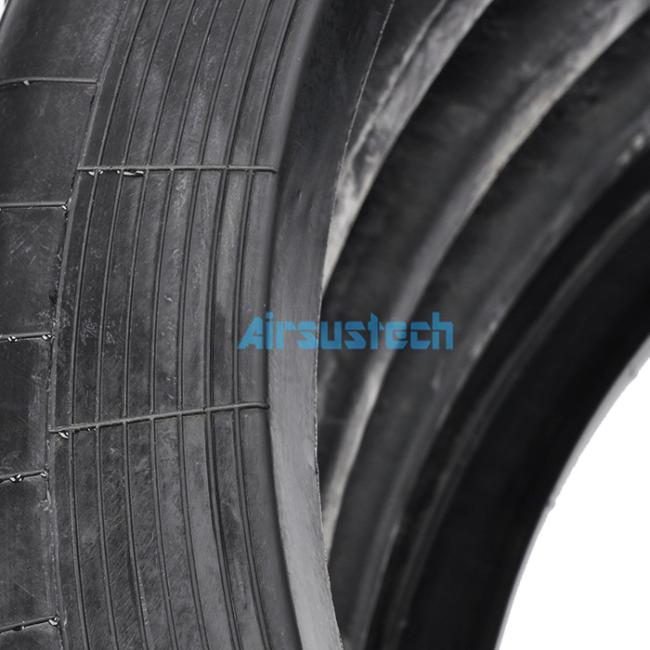

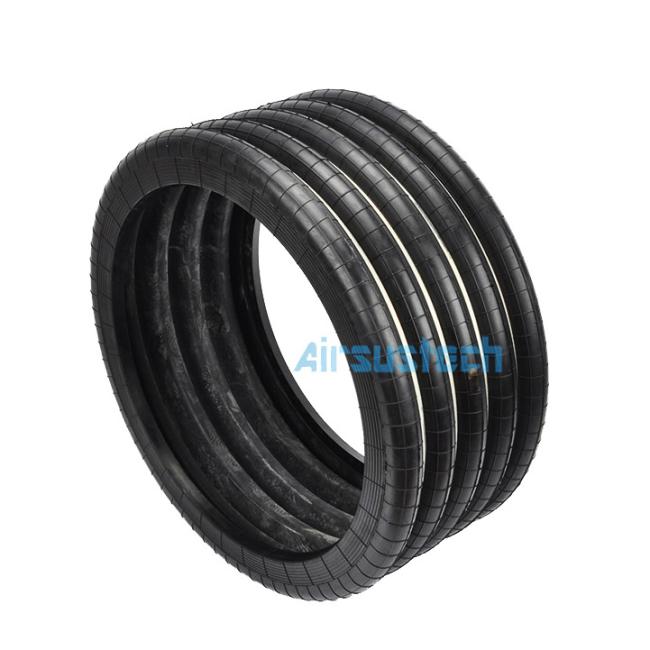

The related picture of F-450-5
