0.88MPA Rubber Air Spring F-350-4 Punch Balance Air Balloon Cross Yokohama S-350-4R S-350-4
0.88MPA Max. Inner Pressure F-350-4 Punch Balance Air Balloon Cross Yokohama S-350-4R S-350-4 Rubber Air Spring
OEM Cross reference
AIRSUSTECH Part No.: F-350-4
YOKOHAMA S-350-4R
YOKOHAMA S 350 4R
YOKOHAMA S-350-4
YOKOHAMA S 350 4
YOKOHAMA S350-4
YOKOHAMA S 350 4
YOKOHAMA S350-4R
Replaces these punch press air springs

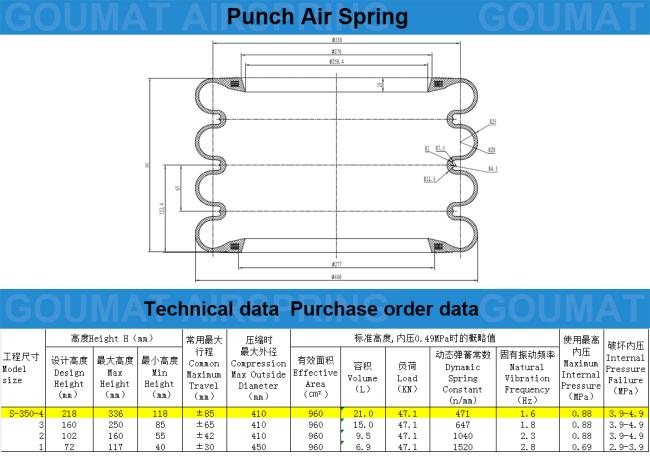

Specifications and Detailed Technical Parameters: F-350-4 Rubber Cushion
This type of air spring is self seal. The number of convolution is four, with 3 pieces of ring, without plate
|
Guomat No. |
Yokohama No. |
Height |
Maximum stroke(mm) |
Max diameter(mm) |
||
|
Design Height(mm) |
Max. Heigh(mm)t |
Min Height(mm) |
||||
|
F-350-4 |
S-350-4R |
218 |
336 |
118 |
±85 |
410 |
|
Standard Height,Internal Pressure 0.49 Mpa |
|
|
||||
|
Effective Area (cm2) |
Volume(L) |
Load (KN) |
Dynamic Spring Parameters (N/mm) |
Natural Frequency (Hz) |
Max inner pressure limited (Mpa) |
Burst inner pressure (Mpa) |
|
960 |
21.0 |
47.1 |
471 |
1.6 |
0.88 |
3.9-4.9 |
Other Four Convolutions Yokohama air spring replacement we have
S-400-4R Punching Machine Air Spring
S 400 4R Air Spring
S400-4R Air Suspension Spring
S-400-4 Air Suspension shock
S 400 4 Air shock
S400-4 Air bag
S400 4 Air balloon
S400 4R Air bellow
S-450-4R Punching Machine Air Spring
S 4500 4R Air Spring
S450-4R Air Suspension Spring
S-450-4 Air Suspension shock
S 450 4 Air shock
S450-4 Air bag
S450 4 Air balloon
S450 4R Air bellow
S-500-4R Punching Machine Air Spring
S 500 4R Air Spring
S500-4R Air Suspension Spring
S-500-4 Air Suspension shock
S 500 4 Air shock
S500-4 Air bag
S500 4 Air balloon
S500-4R Air bellow
S-550-4R Punching Machine Air Spring
S 550 4R Air Spring
S550-4R Air Suspension Spring
S-550-4 Air Suspension shock
S 550 4 Air shock
S550-4 Air bag
S550 4 Air balloon
S550-4R Air bellow
S-600-4R Punching Machine Air Spring
S 600 4R Air Spring
S600-4R Air Suspension Spring
S-600-4 Air Suspension shock
S 600 4 Air shock
S600-4 Air bag
S600 4 Air balloon
S600-4R Air bellow
S-730-4R Punching Machine Air Spring
S 730 4R Air Spring
S730-4R Air Suspension Spring
S-730-4 Air Suspension shock
S 730 4 Air shock
S730-4 Air bag
S730 4 Air balloon
S730-4R Air bellow
Features
High cost performance, wide product size
Long service life, no maintenance and lubrication, no internal levers or pistons
No friction effect, soft medium
Strong bending capacity, side load capacity, compact original height

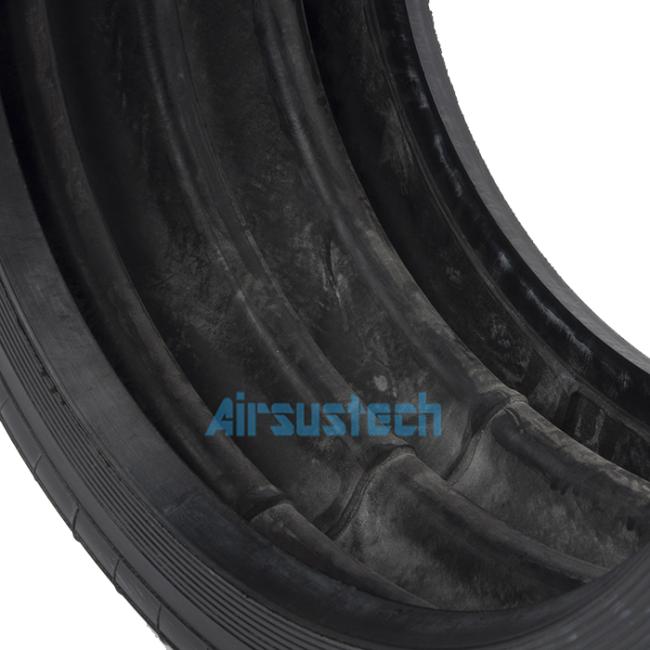

The related picture of F-350-4
