AIRSUSTECH F-350 Pneumatic Air Spring Cross Yokohama S-350-1R S-350-2R S-350-3R S-350-4R Air Bellow Suspension
Pneumatic Spring AIRSUSTECH F-350 Series Cross Yokohama S-350-1R S-350-2R S-350-3R S-350-4R Air Bellow Suspension
Comparable To
|
AIRSUSTECH Part No.: F-350-1 YOKOHAMA S-350-1R YOKOHAMA S 350 1R YOKOHAMA S-350-1 YOKOHAMA S 350 1 YOKOHAMA S350-1 YOKOHAMA S 350 1 YOKOHAMA S350-1R
|
AIRSUSTECH Part No.: F-350-2 YOKOHAMA S-350-2R YOKOHAMA S 350 2R YOKOHAMA S-350-2 YOKOHAMA S 350 2 YOKOHAMA S350-2 YOKOHAMA S 350 2 YOKOHAMA S350-2R |
|
AIRSUSTECH Part No.: F-350-3 YOKOHAMA S-350-3R YOKOHAMA S 350 3R YOKOHAMA S-350-3 YOKOHAMA S 350 3 YOKOHAMA S350-3 YOKOHAMA S 350 3 YOKOHAMA S350-3R |
AIRSUSTECH Part No.: F-350-4 YOKOHAMA S-350-4R YOKOHAMA S 350 4R YOKOHAMA S-350-4 YOKOHAMA S 350 4 YOKOHAMA S350-4 YOKOHAMA S 350 4 YOKOHAMA S350-4R |
Specifications and Detailed Technical Parameters
F-350-1, F-350-2, F-350-3, F-350-4 air springs are self seal. The number of convolution is one,two three, fourt, without/1 piece/2 pieces/3 pieces ring, without plate
|
Guomat No. |
Yokohama No. |
Height |
Maximum stroke(mm) |
Max diameter(mm) |
||
|
Design Height(mm) |
Max. Heigh(mm)t |
Min Height(mm) |
||||
|
F-350-1 |
S-350-1R |
72 |
117 |
40 |
±30 |
450 |
|
F-350-2 |
S-350-2R |
102 |
160 |
55 |
±42 |
410 |
|
F-350-3 |
S-350-3R |
160 |
250 |
85 |
±65 |
410 |
|
F-350-4 |
S-350-4R |
218 |
336 |
118 |
±85 |
410 |
|
Guomat No. |
Yokohama No. |
Standard Height,Internal Pressure 0.49 Mpa |
|
|
||||
|
|
|
Effective Area (cm2) |
Volume(L) |
Load (KN) |
Dynamic Spring Parameters (N/mm) |
Natural Frequency (Hz) |
Max inner preesure limited (Mpa) |
Burst inner pressure (Mpa) |
|
F-350-1 |
S-350-1R |
960 |
6.9 |
47.1 |
1520 |
2.8 |
0.69 |
2.9-3.9 |
|
F-350-2 |
S-350-2R |
960 |
9.5 |
47.1 |
1040 |
2.3 |
0.88 |
3.9-4.9 |
|
F-350-3 |
S-350-3R |
960 |
15.0 |
47.1 |
647 |
1.8 |
0.88 |
3.9-4.9 |
|
F-350-4 |
S-350-4R |
960 |
21.0 |
47.1 |
471 |
1.6 |
0.88 |
3.9-4.9 |
Application
(1) Depending on the driving force
Mechanical Power Press
Hydraulic Press
(2) According to the slider drive mechanism
Crank Press
Crankless Press
Knuckle Press
Friction Press
Screw Press
Rack Press
Link Press
Cam Press

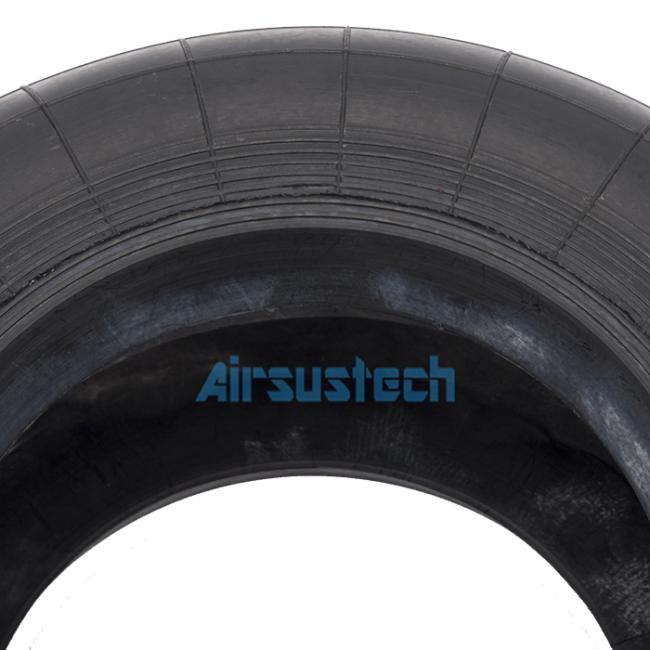

The related picture
