1/4NPT Air Inlet Industrial Air Springs Goodyear 2B12-300

1/4NPT Air Inlet Goodyear 2B12-300 Double Bellow Industrial Air Springs

Cross Reference

Goodyear Part No.:2B12-300

Goodyear Part No.:2B12 300

Goodyear Part No.:2B12300

Contitech:FD330-22 327

Contitech:FD 330-22 327

Contitech:FD330 22 327

Continental: FD 330-22 327

Continental: FD 330 22 327

2B7424 specifications and Tecnical Parameters

Features

Air springs can reduce your costs and increase your profits.

At least two to four times the life of steel springs

Requires little or no maintenance

Allows perfect load balance between axles; allows you to race with the maximum legal limits

Provides a smoother ride for payloads, reducing costly insurance claims and overpacking

All air spring assemblies are 100% pressure tested before leaving the factory.

What Components make up a convoluted Air Spring

1-Blind Nut. Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.
2-Air Fitting. Provides an air entrance to the bellows.
3-Bead Plate. Crimped onto the bellows at the factory for a more durable design and maximum quality control. Allows 100% leakproof testing prior to shipment.
4-Bellows. The “air bag” includes four plies of material: an inner layer, two plies of cord-reinforced fabric, and an outer cover. Natural rubber construction provides functional properties to –65F.
5-Bumper. A solid rubber or engineered plastic device designed to
prevent significant damage to the vehicle or suspension in the
event of a sudden loss of air pressure in the spring.
6-Girdle hoop. A wire-wound ring molded into the bellows to provide lateral stability in convoluted type springs.

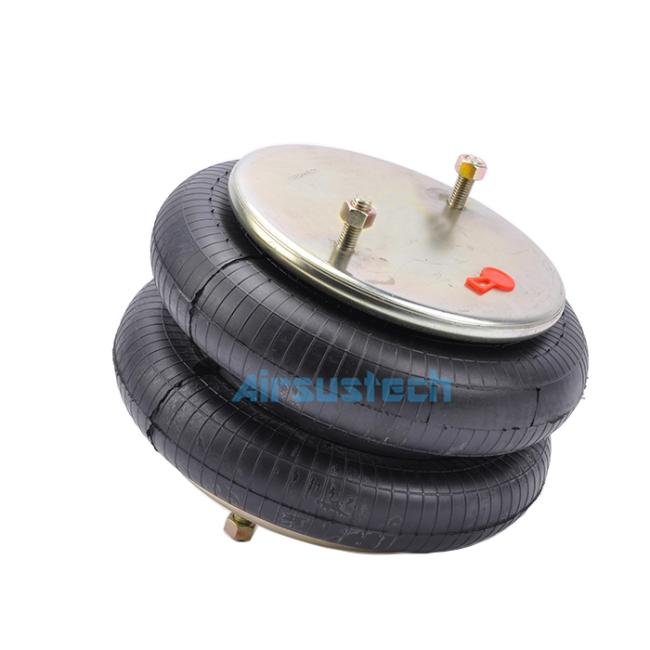

The related picture of 2B7424 air spring
