8708809000 Phoenix Air Spring Bag 1 B 04 1B04 Single Convoluted Rubber Bellow
Phoenix Air Spring Bag 1 B 04 1B04 Single Convoluted Rubber Bellow Only
Product Details
An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself
Product No.: 1B04
Original: Guangdong, China
Ship to: Worldwide, such as Europe, Asia, America, and so on
Delivery time: 10 working days
Shipping way: sea transportation, by train, by airplane, by express.
Cross Reference
Airspring supplier : Phoenix
Supplier Number: 1B04; 1 B 04; 1B 04
If you want air spring with metal parts, the oem no. refer to SP 1 B 04; SP1B 04; SP1B04
Specifications and Detailed Technical Parameters
Max. lifting pressure: 8.0bar
Required space: 170mm
Height max.:110mm
Height min: 50mm
Material: Rubber
Temperate: -40℃-70℃
Other types of phoenix rubber bellows we could offer
| Item code | Max. diameter (mm) | Max. stroke (mm) | Max. load (kN) | Recommended height |
| 2 B 04 R | 150 | 110 | 5.4 | 140 |
| 2 B 07 R | 210 | 160 | 10.8 | 160 |
| 2 B 12 R | 243 | 165 | 15.9 | 180 |
| 2 B 15 R | 270 | 215 | 19.4 | 185 |
| 2 B 20 R | 300 | 200 | 27.0 | 185 |
| 2 B 22 R | 320 | 200 | 32.3 | 185 |
| 2 B 34 R | 370 | 170 | 46.5 | 190 |
| 2 B 49 R-a | 476 | 280 | 86.5 | 185 |
| 2 B 49 R-b | 490 | 320 | 81.8 | 185 |

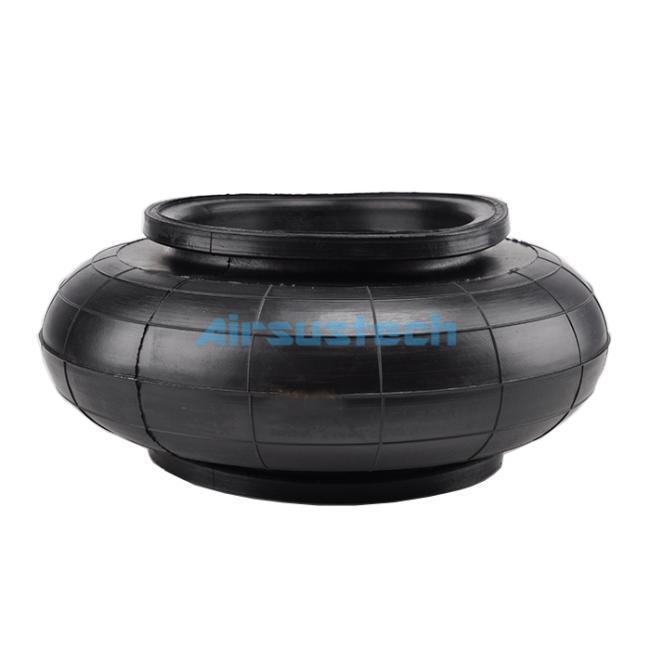

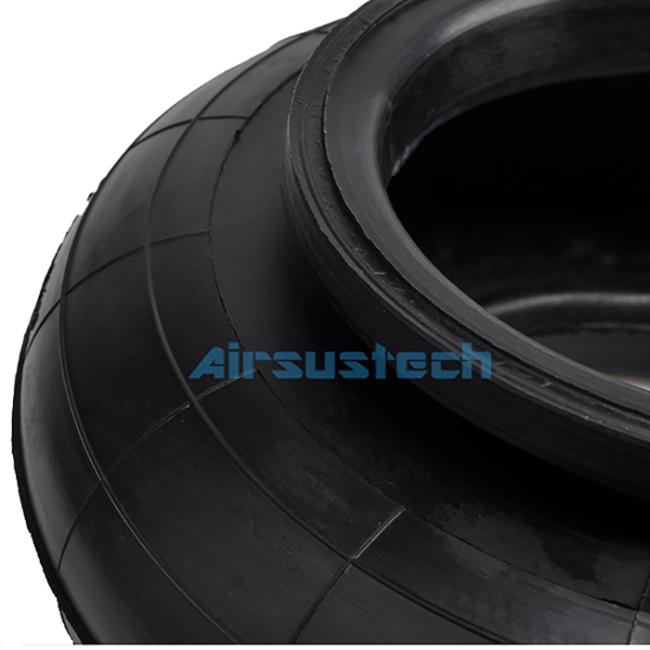

The related picture
FAQ
1. what can you buy from us?
Industrial air spring, cab air spring, truck air spring, bus air spring, passenger car air spring, air suspension compressor, air spring,pneumatic air spring bag,air suspension,
2. why should you buy from us not from other suppliers
We specialize in the production and sale of air spring 15 years.We hope to become your earnest business partner and your contact will be warmly welcomed.
3. what services can we provide?
Accepted Delivery Terms: CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
