TS16949 Suspension Air Springs 2 Convoluted Rubber Air Bellow Air Lift 58623 Dominator D2600 Replacement
2 Convoluted Rubber Air Bellow Air Lift 58623 Dominator D2600 Replacement Suspension Air Springs
Essential Information
Product model: 2B58623
Condition: New
Warranty: 12 Months
Place of Origin: Guangdong, China
Product name: air spring, airbag suspension, shock absorber springs
Type: double convoluted style air spring
Material: Rubber and steel
Operation: Gas-filled
Function: Reduce Shock
Quality: 100% Tested
Payment: T/T, Paypal,Western Union Or Others
Transportation: sea transportation,TNT,DHL,UPS,FedEx,EMS,etc.
Certification: ISO/TS16949:2009
Cross Reference
Air Lift 58623
Specifications and Detailed Technical Parameters: 2B58623
|
Model No. |
Height |
|
Air |
Top |
Bottom |
Cover Plate Dia. |
|
2B58623 |
210mm |
178mm |
2pcsX1/2-14NPT |
2pcsX3/8-16UNC |
3pcsX3/8-16UNC |
141mm |
Feature
Fully adjustable air springs keep your vehicle level when towing or towing heavy loads for a safe and comfortable ride
Fits easily within your vehicle's standard rear coil springs to eliminate sag and bottoming out
Use of strong and durable materials ensures the air spring and all hardware will last indefinitely in the proper conditions
Inflates to an absolute maximum of 50-psi, a minimum of 5-psi and provides up to 1,000 lbs of leveling capacity
Two air springs can be inflated to the same pressure with a single air line, or can be inflated to different pressures with a dual air line configuration if desired
Other types of Air Lift air spring replacement we could offer
|
Description |
Number |
Max |
Comp. |
Max |
Max |
Design |
Air |
Top |
Bottom |
Mounting. Hole |
|
Bellows 1B-5 |
58103 |
5.8 |
1.8 |
6.5 |
1555 |
3.5-5.0 |
1/4" |
3/8" - 16 |
3/8" - 16 |
1.75" |
|
Bellows1B-6 |
58407 |
7.1 |
1.9 |
7.0 |
2210 |
4.0-6.0 |
1/8" |
3/8" - 24 |
3/8" - 24 |
2.75" |
|
Bellows 1B-6** |
58736 |
7.1 |
2.7 |
7.0 |
2210 |
4.0-6.0 |
1/8" |
3/8" - 24 |
3/8" - 24 |
2.75" |
|
Bellows 1B-6 Ultimate** |
58740 |
7.0 |
2.7 |
7.0 |
2210 |
4.0"-6.0" |
1/8" |
3/8"-24 |
3/8"-24 |
2.75" |
|
Bellows 1B-8 |
58124 |
7.3 |
1.8 |
9.4 |
3340 |
4.0-6.5 |
1/4" |
3/8" - 16 |
3/8" - 16 |
2.75" |
|
Bellows 2B-6, Reg. |
58439 |
7.7 |
2.3 |
6.5 |
2025 |
4.5-6.5 |
1/8" |
3/8" - 24 |
3/8" - 24 |
2.75" |
|
Bellows 2B-6, Reg. Ultimate** |
58494 |
8.25 |
2.7 |
6.5 |
2025 |
4.5"-6.5" |
1/8" |
3/8"-24 |
3/8"-24 |
2.75" |
|
Bellows 2B-6, Ext. |
58437 |
9.1 |
2.3 |
7.0 |
2270 |
5.0-7.0 |
1/8" |
3/8" - 24 |
3/8" - 24 |
2.75" |

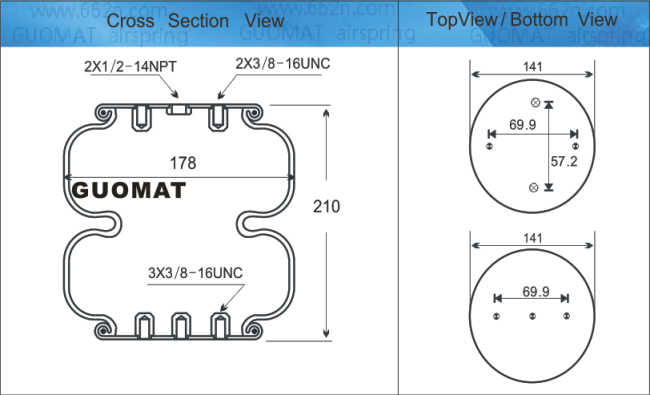

Product Drawing
