Specifications and Detailed Technical Parameters: 2B58615

Model No.: 2B58615

Height: 177mm

Rubber Bellow Diameter: 127mm

Top plate mounting hole: 1pcs conbo stud, 1/4-18NPT air fittings, 3/4-16UNF Stud/Bolt

Bottom plater mounting hole: 1pcs 3/8-16UNC

Top plate diameter: 90mm

Bottom plate diameter: 90mm

Other Model No.

Air Lift 50293

Air Lift 57541

Air Lift 50329

Air Lift 58496

Air Lift 84251

Air Lift 84284

Air Lift 84264

Air Lift 50252

Air Lift 50201

AirLift 5813

Air Lift 84290

Air Lift 84252

Air Lift 50229

Air Lift 84235

Air Lift 84301

Air Spring Components

1. Blind Nut
A permanent part of the bead plate assembly providing an alternate mounting system to the stud.
2. Air Fitting Hole
A tapped hole usually 1/4" N.P.T. providing air entrance for the part.
3. Bead Plate
Permanently crimped onto the bellows at the factory allowing complete part leak testing prior to shipment.
4.Bellows
The heart of an Airide spring. Includes at least four plies, or layers, of material–an inner layer, two plies of cord reinforced fabric, and an outer layer.
7. Bumper (Optional)
A solid molded rubber fail-safe device used on many suspension applications. Prevents excessive damage to vehicle and suspension in the case of sudden air pressure loss.
8. Girdle Hoop
A ring between the convolutions of the convoluted type air spring.

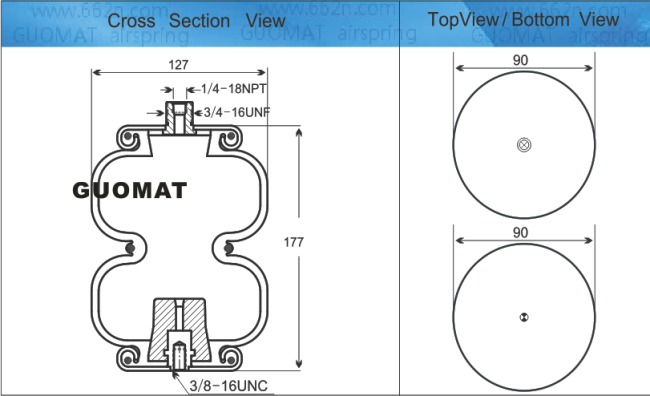

Product Drawing
