Double Convoluted Industrial Suspension Air Springs Dual 1/2-14NPT Ports Air Lift 58352

Dual 1/2-14NPT Ports Air Lift 58352 Double Convoluted Industrial Suspension Air Springs


Cross Reference


Specifications and Detailed Technical Parameters: 2B58352

Model No.: 2B58352

Height: 203mm

Rubber Bellow Diameter: 152mm

Top plate mounting hole: 2pcs 3/8-16UNC

Bottom plater mounting hole: 1pcs 3/8-16UNC

Air Fitting: 2pcs× 1/2-14NPT on top plate

Top plate diameter: 115mm

Bottom plate diameter: 115mm

Advantages

• Guomat adjustable air springs ensure flow and towing safely and comfortably. For example, when towing a trailer, the air springs allow precise adjustment of vehicle height for precise alignment, eliminating trailer sway.
• Air springs ensure proper weight distribution to all four tires, maximizing vehicle stability, safety and comfort
• Fill with air when hauling or hauling heavy loads; deflate when empty for an easier ride Made of durable components
• Installs quickly and easily with common hand tools.

Air Spring Components

1. Blind Nut
A permanent part of the bead plate assembly providing an alternate mounting system to the stud.
2. Air Fitting Hole
A tapped hole usually 1/4" N.P.T. providing air entrance for the part.
3. Bead Plate
Permanently crimped onto the bellows at the factory allowing complete part leak testing prior to shipment.
4.Bellows
The heart of an Airide spring. Includes at least four plies, or layers, of material–an inner layer, two plies of cord reinforced fabric, and an outer layer.
7. Bumper (Optional)
A solid molded rubber fail-safe device used on many suspension applications. Prevents excessive damage to vehicle and suspension in the case of sudden air pressure loss.
8. Girdle Hoop
A ring between the convolutions of the convoluted type air spring.

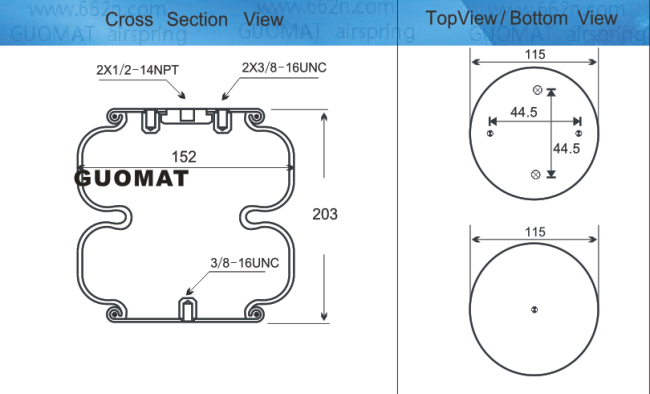

Product Drawing
