DF 16 1/4X2 Industrial Air Springs For Vibrating Hoppers And Bins 8708809000

Double Convoluted SPRINGRIDE DF 16 1/4X2 Industrial Air Spring For Vibrating Hoppers And Bins

Item Info.

Type: Double Bellow

Delivery time: 3 Business days if we have stocks.

Quality: 100% Tested and durable

Cetification: ISO/TS16949:2009

Brand: Netural Or As Customers' Request

Warranty/ Quality Assurance: 1 Year/ 12 Months

Packing: Strong Netural Box Or As Per Customers' Requirements.

Shipping methods: By sea, by train, by express(Fedex, UPS, TNT, DHL Or Others)

Ship From: Guangzhou, China

Ship To: Worldwide

Cross Reference


Specifications and Detailed Technical Parameters

An air spring having one, two or three convolutions in the flexible member. On a bellows type air spring, that part of the flexible member forming an annular protrusion larger than the O.D. of the end retainers or the girdle ring(s).

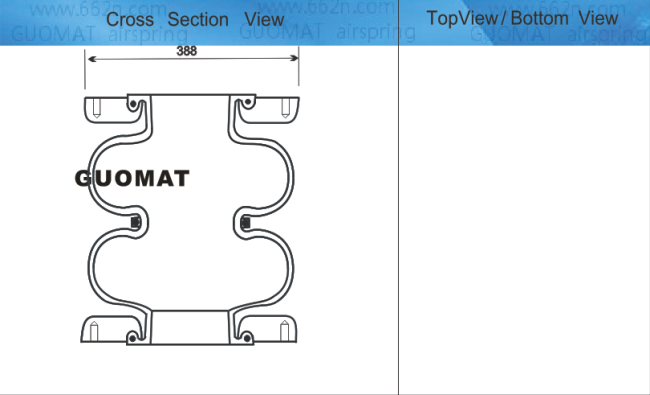

16 1/4×2 model has two kinds of air spring. One is only rubber bellow.

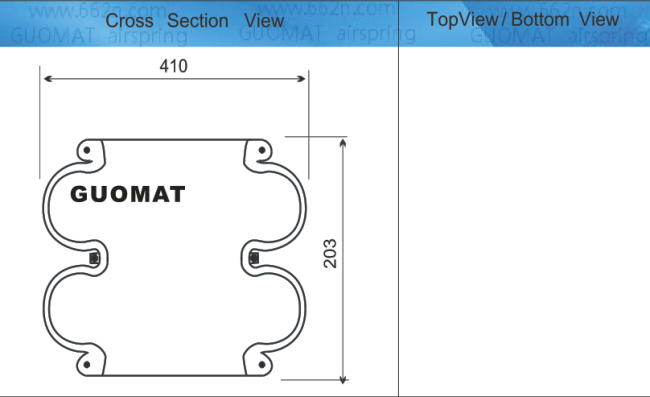

Only Rubber Bellow specifications

Height: 203mm

Rubber Bellow Diameter: 410mm

Air spring applications

The air spring can be used in Vibrating Hoppers And Bins.

The rubber air spring can be independently selected from a wide range of spring height, load capacity and spring stiffness to obtain extremely soft spring characteristics. Spring height: use the height control valve to properly control the height of the air spring according to the requirements of the use. Maintain a certain height under the condition of changing sprung load. Moreover, the natural frequency of the air spring can remain almost unchanged.

It can also be used in other machines.

When it is as an actuator

Scissor lift; Direct force; Hot foil stamping press; Quick lock device; Short stroke mechanical linkage; Roller tensioning; Reel tensioning; Platform lift; Web tensioning device

When it is as an isolator

Commercial laundry machine; Wheel suspension; Mechanical handling stop; Impact absorbtion; Machine isolation

Air spring installation and maintainence

Install

Although they serve similar functions, air springs are much less expensive than air cylinders and other springs. When deflated, air springs have a small footprint and are easy to handle and connect to machinery. The installation site should have enough installation space to avoid contact with oil, acid and alkali substances and sharp substances. Avoid touching the air spring with sharp tools; the matching parts should be smooth and have no edges.

Maintain
The air spring does not need to be lubricated, but it should be stored at room temperature and in a dry and dark place. Rough operations are prohibited during transportation and loading and unloading.

Product Photo of air spring/air actuator
