3 Convoluted Rubber Air Bellow Goodyear 3B14-360 578933351/350 Firestone WO13587800 Suspension Springs
3 Convoluted Rubber Air Bellow Goodyear 3B14-360 578933351/350 Firestone WO13587800 Suspension Springs
Item Info.
Type: Triple Convoluted Air Spring
Application: Industrial Machines or Others
MOQ: One sample is acceptable
Delivery time: 3 Business Days if we have stocks
Shipping ways: By express, By sea or Others
Cross Reference
Air spring supplier: Firestone
Supplier Number: W01-358-7800; W01 358 7800; W013587800; WO1-358-7800; WO1 358 7800; WO13587800
Air Spring supplier: Contitech/Continental
Supplier Number: FT 530-32 333; FT 530 32 333; FT 530-32333; FT530-32 333; FT530-32333; FT53032333
Air Spring supplier: Goodyear
Supplier Number:3B14-360; 3B14360; 3B14 360
Goodyear Bellow Number:578933351; 578 93 3 351; 578-93-3-351;578933350; 578 93 3 350; 578-93-3-350
Air spring supplier: Granning
Supplier Number: 4514/6375
Suspension spring supplier: Hendrickson
Supplier Number: S13047
Suspension springs supplier: Ridewell
Supplier Number: 1003587800C
Suspension springs supplier: Dayton
Supplier Number: 3547800
Specifications and Detailed Technical Parameters: 3B7800
|
Height |
282mm |
|
Working Stroke |
102-480mm |
|
Rubber Natural Diameter |
356mm |
|
Max. OD |
383mm |
|
Air Inlet |
1/4NPTF |
| Top Plate Hole Stud Qty | 4pcs |
|
Top plate mounting threads |
1/2-13UNC |
|
The screw center distance on top plate |
158.8mm±0.5 |
| Bottom Plate Hole Stud Qty | 4pcs |
|
Bottom plate mounting threads |
1/2-13UNC |
|
The screw center distance on bottom plate |
158.8mm±0.5 |
|
Top cover plate diameter |
289mm |
|
Bottom cover plate diameter |
289mm |
|
Bumper |
Without |
|
Girdle hoop |
2pcs |
About air spring
Air springs have a wide range of applications, the most common of which are speed regulation and tension control applications for constant torque loads. It can play a good buffer role for some machines with relatively heavy loads, such as various transmission machinery in machine tools, mining, metallurgy and other industries. It can also play a protective role. The biggest advantages of this kind of air spring are simple structure, small capacity of control device, high cost performance, good running stability, easier maintenance in case of failure, no additional slip loss, and high utilization rate.

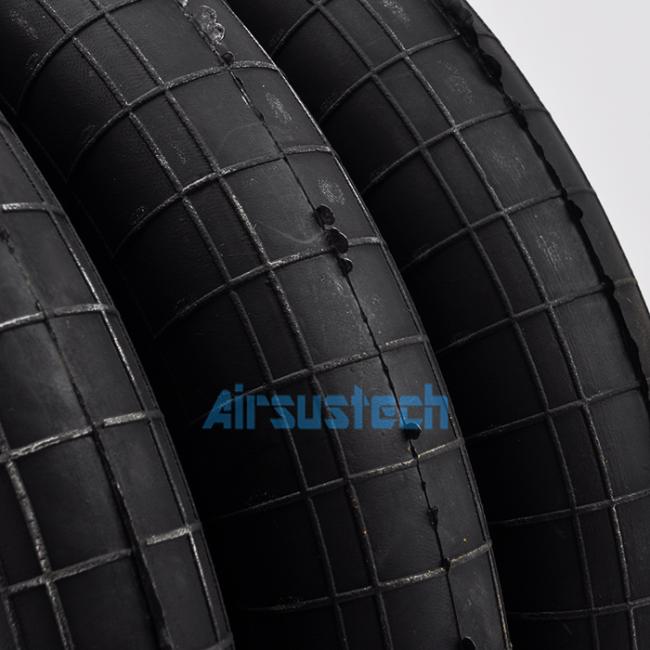

The 3B7800 air spring/ air suspension spring photo
