W01-R58-4091 WO1R584091 Industrial Air Springs Triple Convoluted Rubber Shocks 8pcs M10 Studs
Firestone W01-R58-4091 WO1R584091 Triple Convoluted Rubber Shocks 8pcs M10 Studs Industrial Air Springs
OEM Cross reference
Air spring supplier: Firestone
Supplier number: W01R584091; W01 R58 4091; W01-R58-4091; WO1-R58-4091; WO1 R58 4091; WO1R584091
Air spring supplier: DUNLOP
Supplier number: SP1642; SP 1642
Specifications and Detailed Technical Parameters: 12×3
BELLOWS TYPE: Triple Convolutions
Studs
Top plate studs: 8pcs X M10
Bottom cover plate studs: 8pcs X M10
Height: 252mm
Rubber Bellow Diameter: 300mm
Bumper block/bumper block
Without bumper block
Belt loop/Girdle hoop/Girdel ring
Two pieces of belt loop/girdle hoop/girdle ring
Other Model We could offer
|
Guomat No. |
Cross Reference |
Product Details |
|
4.5 X 1 |
Firestone W01-R58-4050; W01R584050; W01 R58 4050; WO1-R58-4050; WO1R584050; WO1 R58 4050 DUNLOP: SP 2334 |
3pcs×M6 3/8BSP |
|
4.5 X 2 |
Firestone: W01-R58-4051;W01R584051; W01 R58 4051; WO1-R58-4051; WO1R584051; WO1 R58 4051 DUNLOP: SP 2441 |
3pcs×M6 3/8BSP |
|
6×1 |
Firestone: W01-R58-4078; W01R584078; W01 R58 4078; WO1-R58-4078; WO1R584078; WO1 R58 4078 DUNLOP: SP 2913 |
4×-M8×14 1/2BSP |
|
6×1 |
Firestone: W01-R58-4052; W01R584052; W01 R58 4052; WO1-R58-4052; WO1R584052; WO1 R58 4052 DUNLOP: SP1368 |
4×-M10×14 1/2BSP |
| 6 X 2 |
Firestone: W01-R58-4070; W01 R58 4070; W01R584070; WO1-R58-4070; WO1 R58 4070; WO1R584070 DUNLOP: SP 2917; SP 2917 |
8pcs×-M8×1.25 1/2BSP |
| 6 X 3 |
Firestone: W01-R58-4095; W01R584095; W01 R58 4095; WO1-R58-4095; WO1R584095; WO1 R58 4095 DUNLOP: SP 2861; SP2861 |
1/2BSP 4×M10×1.5 |

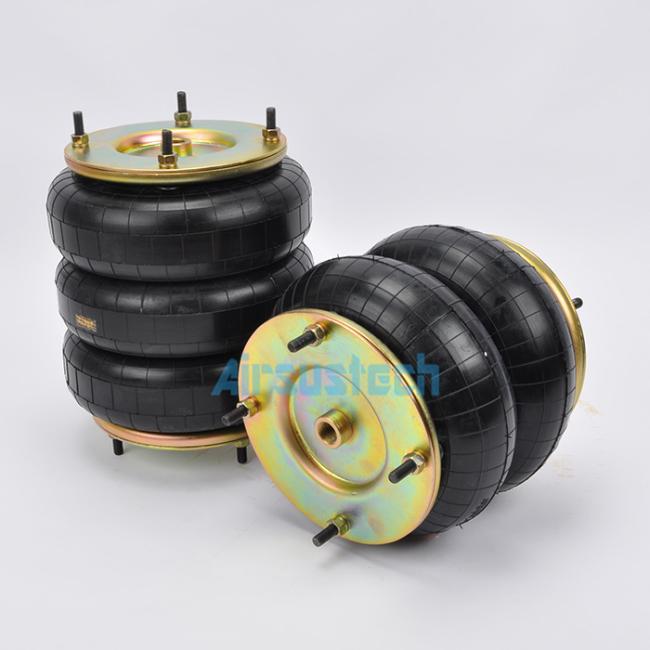

The related picture of 12×3
