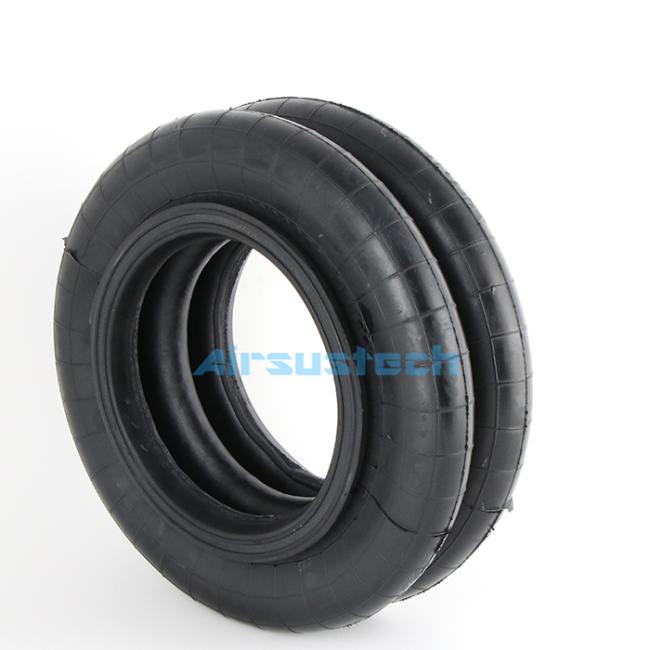

DUNLOP SP 255 Industrial Air Springs Airsustech Air Bags 10×2 Cross Firestone W01-R58-4048
Airsustech Air Bags 10×2 Cross Firestone W01-R58-4048 DUNLOP SP 255 Rubber Industrial Air Springs
Cross Reference
Air bag supplier: Firestone
Supplier Number: W01-R58-4048; W01 R58 4048; W01R584048; WO1-R58-4048; WO1 R58 4048; WO1R584048
Airbag supplier: DUNLOP
Supplier Number: SP 255; SP255
Airbag supplier: GIGANT
Specifications and Detailed Technical Parameters: 10×2
Type: Double Bellows
Height: 165mm
Rubber Bellow Diameter: 254mm
Girdle hoop/Girdle ring: 1 piece
Other 10'' Model Air Spring
| Guomat No. | Cross Reference | Product Details |
| 10 X 1 |
Firestone: W01-R58-4057; W01 R58 4057; W01R584057 WO1-R58-4057; WO1 R58 4057; WO1R584057 DUNLOP: SP 2623; SP2623 |
Air Spring Assy with flange, top plate and bottome plate 4pcs M10 Studs 1/2 Air fittings, centered |
| 10 X 2 |
Firestone: W01-R58-4058; W01 R58 4058; W01R584058 WO1-R58-4058; WO1 R58 4058; WO1R584058 SAMRO H2500189/H2500021 CONTITECH: FD 210-22 DS; FD210-22DS; FD21022DS NORGREN: M/31102; M 31102; M 31102 PARKER: 9109021 |
Air Spring Assy with flange, top plate and bottome plate 4pcs M10 Studs 1/2 Air hole, centered |
| 10 X 2 |
Firestone: W01-R58-4092; W01 R58 4092; W01R584092 WO1-R58-4092; WO1 R58 4092; WO1R584092 DUNLOP: SP 1538; SP1538 |
Air Spring Assy 4pcs M10 Mounting Threads |
| 10 X 3 |
Firestone: W01-R58-4047; W01 R58 4047; W01R584047 WO1-R58-4047; WO1 R58 4047; WO1R584047 DUNLOP: SP 258; SP258 |
Only Rubber Bellow |
| 10 X 3 |
Firestone: W01-R58-4059; W01 R58 4059; W01R584059 WO1-R58-4059; WO1 R58 4059; WO1R584059 SAMRO H2500010 CONTITECH: FT 210-32 DS; FT210-32DS; FT21032DS NORGREN: M/31103; M 31103; M31103 PARKER: 9109031 |
Air Spring Assy with flange, top plate and bottome plate 4pcs M10 Studs 1/2 Air hole, Centered |
| 10 X 3 |
Firestone: W01-R58-4086; W01 R58 4086; W01R584086 WO1-R58-4086; WO1 R58 4086; WO1R584086 DUNLOP: SP 1539; SP1539 |
Air Spring Assy with flange, top plate and bottome plate 4pcs M10 Studs M16×1.5 Air hole,Offset |
