Steel Industrial Air Springs Firestone W01-R58-4074 W01R584074 DUNLOP SP1988 For Printing Press
DUNLOP SP1988 Firestone W01-R58-4074 W01R584074 Double Convoluted Industrial Air Springs For Printing Press
Item Information
Product No.: 14 1/2×2
Type: Air Spring Assembly, Complete
Condition: 100% New
Quality: Good with strict quality control
Packing: Strong Cartons, Netural Or As Customer's Request
Delivery time: 3 Working Days if we have stocks
Shipping way: By carrier, by sea, by train, or etc
Cross Reference
Air bag supplier: Firestone
Supplier Number: W01-R58-4074; W01 R58 4074; W01R584074; WO1-R58-4074; WO1 R58 4074; WO1R584074
Airbag supplier: DUNLOP
Supplier Number: SP 1988; SP1988
Air spring supplier: FRUEHAUF
Supplier number: J40108M08A05
Air spring supplier: LOHR
Specifications and Detailed Technical Parameters: 14 1/2×2
Type: Double Bellows
Air Fittings: M22×1.5 on 85 rad,offset
Mounting Threads: 4pcs × M10×1.5
Cover plate diameter: 311mm
The screw center distance: 283mm
Rubber bellow diameter: 390mm
Girdle hoop/Girdle ring: 2 pieces
Other Model Air Spring
| GUOMAT No. | Cross Reference | Details |
| 14 1/2 X 1 |
Firestone: W01-R58-4063; W01 R58 4063; W01R584063; WO1-R58-4063; WO1 R58 4063; WO1R584063 DUNLOP: SP 1643; SP1643 |
Air Spring Assembly, Centered Air Inlet, 4pcs Mounting threards |
| 14 1/2 X 2 |
Firestone: W01-R58-4064; W01 R58 4064; W01R584064 WO1-R58-4064; WO1 R58 4064; WO1R584064 SMB/FRUEHAUF |
Air Spring Assembly, Centered Air Inlet, 4pcs Mounting threards |
| 14 1/2 X 2 |
Firestone: W01-R58-4075; W01 R58 4075; W01R584075 WO1-R58-4075; WO1 R58 4075; WO1R584075 DUNLOP: SP 257; SP257 |
Air Spring Assembly |
| 14 1/2 X 3 |
Firestone: W01-R58-4065; W01 R58 4065; W01R584065 WO1-R58-4065; WO1 R58 4065; WO1R584065 WEWELER: USN 510018KD |
Air Spring Assembly, Centered Air Inlet, 4pcs Mounting threards |
| 14 1/2 X 3 |
Firestone: W01-R58-4100; W01 R58 4100; W01R584100; WO1-R58-4100; WO1 R58 4100; WO1R584100 DUNLOP: 14 1/2 X 3 4 PLY |
Air Spring Assembly |
Applications
Automatic grip pneumatic tires, air bag jacks, lift air bags, printing machine shock absorber air bags, valve air bags for waterways, elevator air bags, tensioning device air bags, etc., cadre air bags, vehicle air suspension, etc.

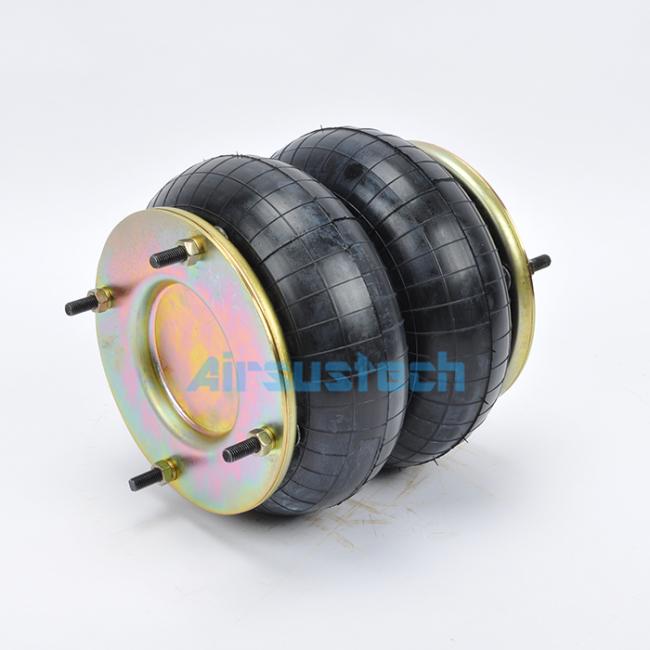

The air spring assembly photo
