Product Information
Product No.: Goodyear 1B5-800
Type: Single Convoluted Air Spring
Condition: 100% New
Delivery time: 3 Working Days
Packaging: Strong Netural Box Or As Customers' Request
Shipping way: By sea, By express, By train, etc
Cross Reference
This air spring is imported from Mexico. The goodyear part number is 1B5-800/ 1B5 800/ 1B5800; Bellow number is 579913500/ 579 913 500/ 579-9-13-500/ 579-913-500.
The pneumatic (air) spring is basically a column of confined gas in a container designed to utilize the pressure of the gas as a force medium of the spring. The compressibility of the gas provides the desired elasticity for suspension use. They are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications.
Specifications and Detailed Technical Parameters: Goodyear 1B5-800
Top plate
G1/8 AIR FITTING
1.75'' DIA. B.C
3/8'-16 UNC - 2B × 5/8‘ DEEP TYPICAL OF(2)
Rubber Bellow
5.7' MAX O.D. AT 100 PSIG
3.8' MAX EXTENDED HT.
Bottom plate
1.75' IDA. B.C.
3/8'-16 UNC -2B × 5/8' DEEP TYPICAL OF(2)
Constant Pressure Characteristics
| Assembly Height (in) | Volume @ 100 PSIG (in3) | Nominal Force ( lb) | ||||
| @ 20 PSIG | @40 PSIG | @ 60 PSIG | @80 PSIG | @ 100 PSIG | ||
| 3.8 | 51 | 60 | 170 | 280 | 400 | 560 |
| 3.5 | 48 | 130 | 280 | 440 | 620 | 800 |
| 3.0 | 41 | 210 | 420 | 660 | 850 | 1100 |
| 2.75 | 37 | 240 | 480 | 700 | 1000 | 1250 |
| 2.5 | 33 | 260 | 520 | 800 | 1050 | 1350 |
| 2.0 | 26 | 280 | 560 | 850 | 1150 | 1450 |
| 1.8 | 24 | 280 | 580 | 900 | 1200 | 1500 |
Dynamic Characteristics
| Design Height (in) | Load (lb) | Pressure (PSIG) | Spring Rate (lb/in) | Natural Frequency | |
| cpm | Hz | ||||
| 3.0 | 200 | 18 | 275 | 223 | 3.72 |
| 500 | 44 | 545 | 195 | 3.25 | |
| 750 | 64 | 750 | 188 | 3.13 | |
| 950 | 86 | 970 | 184 | 3.07 | |
| 1150 | 100 | 1130 | 182 | 3.03 | |
| 2.75 | 200 | 16 | 275 | 220 | 3.67 |
| 500 | 41 | 535 | 193 | 3.22 | |
| 750 | 60 | 745 | 186 | 3.10 | |
| 950 | 80 | 950 | 182 | 3.03 | |
| 1150 | 94 | 1095 | 180 | 3.00 | |
| 2.5 | 200 | 15 | 295 | 228 | 3.80 |
| 500 | 37 | 550 | 198 | 3.30 | |
| 750 | 55 | 765 | 190 | 3.17 | |
| 950 | 74 | 975 | 185 | 3.08 | |
| 1150 | 89 | 1140 | 182 | 3.03 | |
Note
1. Product Life may be shortedned when operating at or near extreme temperatures.
2 . When storing the air spring, please store it in a low-temperature and dark place with poor ventilation as much as possible, and avoid direct sunlight.
3. Please avoid letting the air spring stick to oil and medicine. If left unattended after adhesion, the physical properties of the rubber may be reduced.

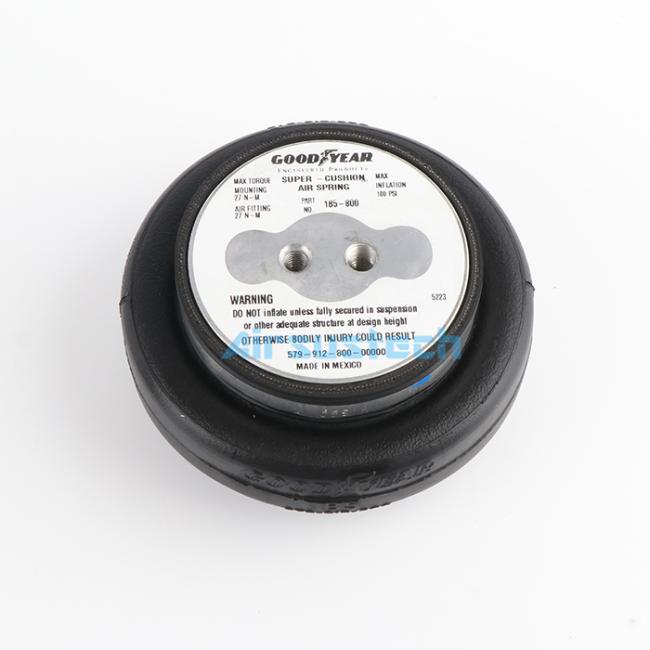

The related picture of 1B5-800 goodyear helper bag/air springs
