ZF40/60-1 Single Convoluted Industrial Air Ride Springs 2.5×1 G1/8 Air Inlet

ZF40/60-1 Single Convoluted Industrial AIRSUSTECH Air Ride Springs 2.5×1 G1/8 Air Inlet


Item Information


Product Introduction

Rubber air spring is a curved capsule made of rubber and mesh wire, commonly known as pneumatic tire, corrugated pneumatic tire, air bag, leather tiger, etc. The two ends of the capsule need to be connected with two steel plates to form a compressed air chamber. Part of it is composed of the rubber layer of bladder-type steel cord in the middle of the left and right mounting plates and the high-pressure air of bladder-like sealing. It has low vibration damping frequency (generally less than 2Hz), good vibration damping performance, and adjustable technical parameters (can be Change the bladder-like gas pressure to adjust the load-bearing size and the relative height of the spring shock absorber) and other excellent characteristics;

Application

High-speed punching machines

Air compressors

Centrifugal dehydrators

Vibrating conveyors

Vibrating screens

Forging machinery

Textile equipment

Electronic optics and laser instruments

Integrated circuit machines

Medical instruments
3C automation
Transportation System
Electronic equipment
CNC machine tool equipment

Web Assembly Machine
Pneumatic secondary lift
Gate valve operator

Other model

4 1/2" x 1 SP2334
4 1/2" x 2 SP2441

4 1/2" x 3 SP2895

6" x 1 (Al) SP2913

6" x 1 (Steel) SP1536

6" x 2 (Al) SP2917

6" x 2 (Steel) SP1482

6" x 3 (Al) SP2923

6" x 3 (Steel) SP2861

8" x 1 SP1537

8" x 2 SP1490

8" x 3 SP2863

10" x 1 SP2523

10" x 2 SP1538

10" x 3 SP1539

12" x 1 SP1540

12" x 2 SP1541

12" x 3 SP1542

14" 1/2 x 1 SP1543

14" 1/2 x 2 SP1556

14" 1/2 x 3 SP1558

16" x 2 SP1557

16" x 3 SP2141

21" 1/2 x 2 SP1408

26" x 2 SP2342

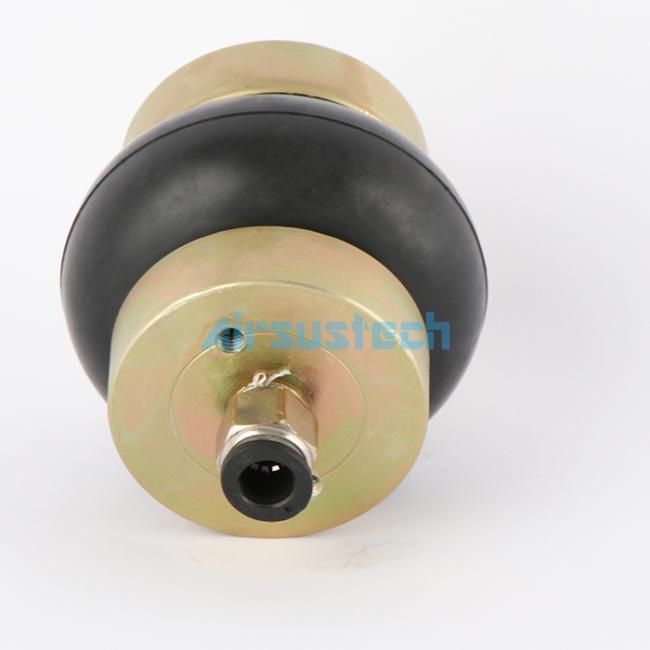

The related picture of ZF40/60-1 air spring/air shocks/air spring assembly/air bag
