HENDRICKSON SH505613 Suspension Air Springs Two Convoluted Bellow Firestone W01-M58-7756

Firestone W01-M58-7756 HENDRICKSON SH505613 Suspension Air Springs Double Convoluted Bellow

Specifications and Technical Parameters

1. Mounting threads on Top plate Qty: 1pc×M10×1.5 VOSS 232
2. Bottom cover plate screw (nut) teeth Qty: 2pcs×M8×1.5
    The screw center distance: 89mm
3. Top cover plate diameter: 160mm
4. Bottom cover plate diameter: 160mm

5. Bumper block: Without
6. Belt loop/belt loop with belt loop: with one belt loop


Cross Reference

Firestone Style 20FY

Air spring supplier/competitor: Firestone
Supplier//competitor: W01-M58-7756; W01 M58 7756; W01M587756; WO1-M58-7756; WO1 M58 7756; WO1M587756; w01-m58-7756; w01 m58 7756; w01m587756

Air spring supplier/competitor: MERCEDES

Supplier/competitor number: A 942 327 06 01;  A9423270601

Air spring supplier/competitor: HENDRICKSON

Supplier/competitor number: SH 505613; SH505613

HENDRICKSON : HS506118 / HS505613 / Q7321000 / HS506616
MERCEDES : 9423206021 / A9423205821 / A9423270601
CONTITECH : FD 200-19 P02

PIRELLI: 207065

GRANNING: 15784

GOODYEAR : 2B9-234

GOODYEAR FLEX: 578-92-3-211

PHOENIX: SP 2B 12R-17

CF GOMMA: T20L / 207065

RVI: 5010557459

Convoluted Air Spring

Bead Plate - The crimped plate serves to fasten the air-spring bellow to the vehicle.
Bellows - The actual springing element, i.e.,an air-spring bellow, consists of: internal reinforcement material, stabilizing brackets and external covering.
Bumper - The bumper restrict the air spring stroke and ensures the emergency operation properties.
Girdle - The central ring act to stabilize the air-spring.

Advantages

Convoluted airsprings are characterised by a favourableheight to spring deflection ratio (with this type of airspringa relatively high spring deflectian can be achieved withthe smallest amount of overall height). Usually found indouble or triple configuration.

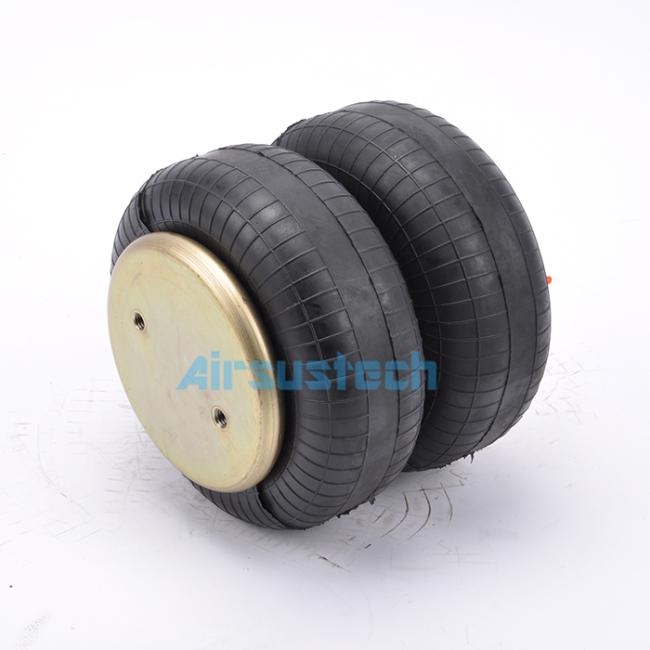

The picture of AIRSUSTECH Air Bag
