Firestone Industrial Suspension Air Springs W01-358-8019 W013588019 For HENDRICKSON NA 1059
W01-358-8019 W013588019 Firestone Industrial Suspension Air Springs For HENDRICKSON NA 1059
Cross Reference
Firestone Style 38D; 38
Air spring supplier/competitor: Firestone
Supplier//competitor: W01-358-8019;W01 358 8019; W013588019; WO1-358-8019;WO1 358 8019; WO13588019
Air spring supplier/competitor:HENDRICKSON
Supplier//competitor: NA 1059; NA1059
Specifications and Technical Parameters
Triple Convolutions
Industrial bellow actuator
2-ply standard cord
Air spring complete
Material: Rubber and steel
3/816UNC, 3/4-16UNF mounting threads on top plate
2pcs 3/8-16UNC blind nuts on bottom plate
2pcs girdle hoop/belt loop
With bumper block/bumper
Product name: Airbag, airbag cylinder, air spring assembly, air bellow, rubber bellow, air balloon, air pillow, air shocks
Other firestone style and assembly number reference
|
Firestone style number |
Firestone assembly number |
|
21-2 |
W01-M58-6379 |
|
22 |
W01-M58-6381 |
|
22 |
W01-M58-6382 |
|
22-1.5 |
W01-M58-6383 |
|
22-1.5 |
W01-M58-6384 |
|
26 |
W01-M58-6387 |
|
224 |
W01-M58-6400 |
|
20-2 |
W01-M58-6880 |
|
121 |
W01-M58-6966 |
|
328 |
W01-M58-6967 |
|
324 |
W01-M58-6968 |
|
148-1 |
W01-M58-6969 |
|
248-2 |
W01-M58-6970 |
|
348-3 |
W01-M58-6971 |
|
138-1.5 |
W01-M58-6972 |
|
126 |
W01-M58-6973 |
|
119 |
W01-M58-6974 |
|
19 |
W01-M58-6975 |
|
210 |
W01-M58-6976 |
|
115 |
W01-M58-6977 |
|
215 (formerly 211) |
W01-M58-6978 |
|
200 |
W01-M58-6979 |
|
323 |
W01-M58-6980 |
|
314 |
W01-M58-6981 |
|
320 |
W01-M58-6983 |
|
321 (formerly 319) |
W01-M58-6984 |
|
203 |
W01-M58-6985 |
|
218 |
W01-M58-6986 |
|
207 |
W01-M58-6987 |
| 26 | W01-M58-6988 |
| 274 (formerly 20) | W01-M58-6990 |
Applications
GATE VALVE OPERATOR
GLUING PRESS
WEB TENSIONING DEVICE
DIE STRIPPER
KNIFE SPRING ACTUATOR
QUENCH TANK ACTUATOR
PAPER SIZING PRESS
PICKLING TANK ACTUATOR
QUICK LOCK DEVICE
PRESSURE ROLL FOR CALENDER
MISSILE ASSEMBLY FIXTURE
CORE STRAIGHTENER
BELT TAKE-UP
ROLLER FRICTION BRAKE
PIPE INDEXING THREADING
OSCILLATING DOCTOR FOR PAPER CALENDER ROLL

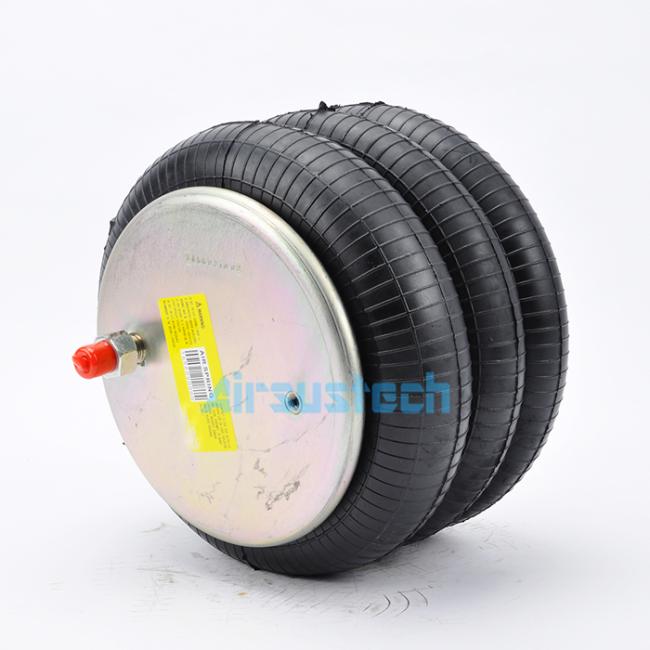

The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly
