205C Style W01-358-7224 Firestone Double Convoluted Air Bag TERBERG 21062033
205C Style W01-358-7224 Firestone Double Convoluted Airbag TERBERG 21062033 Industrial Air Springs
Cross Reference
Firestone Style 205C; 205
Air spring supplier/competitor: Firestone
Supplier//competitor: W01-358-7224;W01 358 7224; W013587224; WO1-358-7224;WO1 358 7224; WO13587224
Air spring supplier/competitor:TERBERG
Supplier//competitor:21062033
| Style 21 | Blind nuts, 1/4 NPT | WO1-358-7145 |
| Blind nuts, 1/4 NPT, bumper | WO1-358-7146 | |
| Two Ply Bellows | Blind nuts, 3/4 NPT | WO1-358-7143 |
| Blind nuts, 3/4 NPT, bumper | WO1-358-7144 | |
| Countersunk steel bead rings, 13/4 bolts, nuts, washers | WO1-358-7139 | |
| Rubber bellows only | WO1-358-0213 |
| Style 205 | Blind nuts, 1/4 NPT | WO1-358-7208 |
| Blind nuts, 1/4 NPT, bumper | WO1-358-7221 | |
| High Strength Bellows |
Blind nuts, 3/4 NPT | WO1-358-7224 |
| Countersunk steel bead rings, 13/4 bolts, nuts, washers | WO1-358-7237 | |
| Rubber bellows only | WO1-358-7929 |
Specifications and Technical Parameters
Double Convolutions
Industrial bellow actuator
Air spring complete
Material: Rubber and steel
4pcs× 3/8-16UNC blind nuts on top plate
3/4NPTF Offset Air inlet
4pcs× 3/8-16UNC blind nuts on botton plate
Without bumper block/bumper
Product name: Airbag, airbag cylinder, air spring assembly, air bellow, rubber bellow, air balloon, air pillow, air shocks
Other firestone style and assembly number reference
Firestone Assembly Number W01-M58-7524; WO1-M58-7524 Firestone Style Number 22
Firestone Assembly Number W01-M58-7526; WO1-M58-7526 Firestone Style Number 313
Firestone Assembly Number W01-M58-7530; WO1-M58-7530 Firestone Style Number 312
Firestone Assembly Number W01-M58-7531; WO1-M58-7531 Firestone Style Number 28
Firestone Assembly Number W01-M58-7532; WO1-M58-7532 Firestone Style Number 29
Firestone Assembly Number W01-M58-7534; WO1-M58-7534 Firestone Style Number 39
Firestone Assembly Number W01-M58-7535; WO1-M58-7535 Firestone Style Number 333
Firestone Assembly Number W01-M58-7538; WO1-M58-7538 Firestone Style Number 113
Firestone Assembly Number W01-M58-7710; WO1-M58-7710 Firestone Style Number 21
Firestone Assembly Number W01-M58-7718; WO1-M58-7718 Firestone Style Number 126
Firestone Assembly Number W02-358-0201; WO2-358-0201 Firestone Style Number 201
Firestone Assembly Number W02-358-4004; WO2-358-4004 Firestone Style Number 4004
Firestone Assembly Number W02-358-7002; WO2-358-7002 Firestone Style Number 7002
Firestone Assembly Number W02-358-7010; WO2-358-7010 Firestone Style Number 7010
Firestone Assembly Number W02-358-7012; WO2-358-7012 Firestone Style Number 7012
Firestone Assembly Number W02-358-9025; WO2-358-9025 Firestone Style Number 110/70
Firestone Assembly Number W02-M58-3000;WO2-M58-3000 Firestone Style Number 1M1A-0
Firestone Assembly Number W02-M58-3001;WO2-M58-3001 Firestone Style Number 1M1A-0

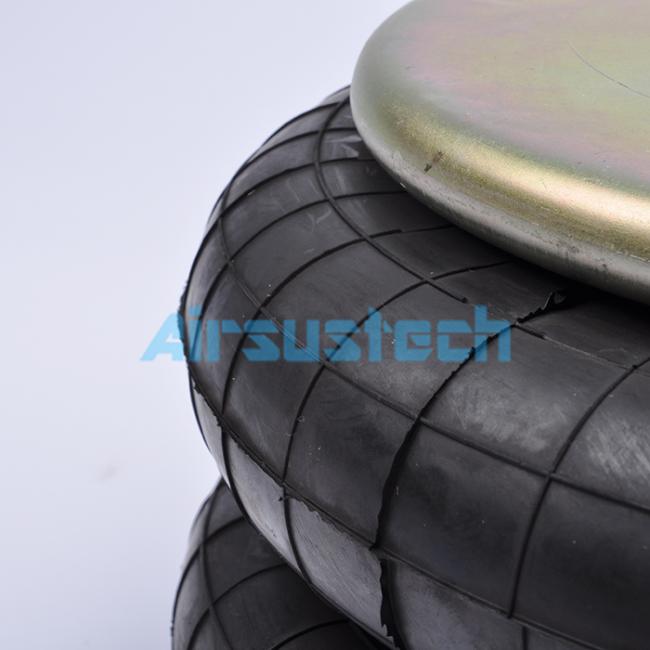

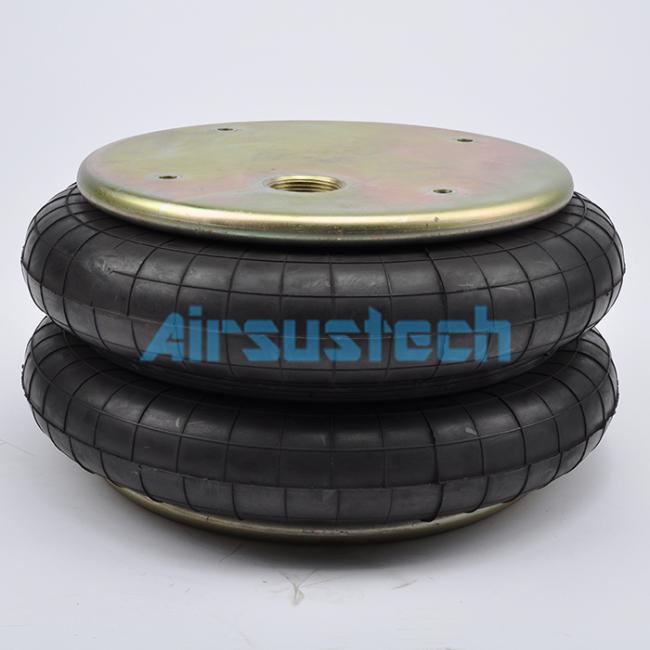

The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly
