JBF75/106-2 Double Convoluted Air Springs Nominal 106mm Height Industrial Bag For Marble Grinding Machine
JBF75/106-2 Double Convoluted Air Springs Nominal Diameter 75mm 106mm Height Industrial Bag For Marble Grinding Machine
Basic Info.
Product name: Air spring, air bag, air shocks, air balloon, air suspension spring, pneumatic cushion, rubber bellow
Sample: Available
Condition: 100% Tested
Material: Rubber and Steel
HS code: 8708809000
Quality: High-quality
Warranty: 1 year
Delivery time: 3-8 Working days
Payment ways: T/T, Western Union, Paypal or Others
Shipping way: By express, by air, by sea or others
Ship from: Guangzhou, Guangdong, China
Ship to: All over the world
Cross Reference
JBF 75/106-2
JBF75 106-2
JBF75106-2
JBF 75 106 2

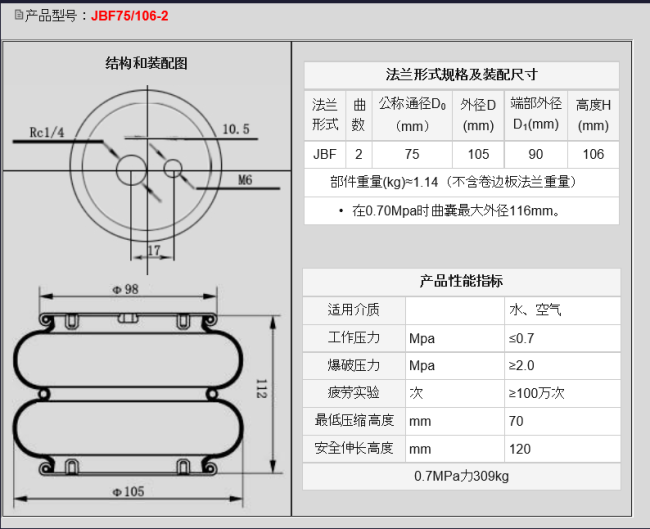

Specifications and Technical Parameters
Flange form specifications and assembly dimensions | |||||
Flange form | Convolutions | Nominal Diameter D0(mm) | Outer Diameter D(mm) | End outer diameter D1(mm) | Height(mm) |
JBF | 2 | 75 | 105 | 90 | 106 |
Component weight (kg) ≈ 1.14kg (excluding the flange weight of the curling plate) | |||||
At 0.70Mpa, the maximum outer diameter of the rubber bellow is 116mm | |||||
Product performance index | ||
Applicable medium |
| water, air |
Work pressure | MPA | ≤0.7 |
Burst pressure | MPA | ≥0.2 |
Fatigue test | times | ≥1 million times |
Minimum Compression Height | mm | 70 |
Safe extension height | mm | 120 |
0.7MPa force 309kg | ||
Rc1/4
M6 Mounting threads
98mm cover plate diameter
Applications
The air spring can be used in the marble grinding equipment. The air spring is filled with compressed air in a sealed container, and uses the compressibility of the gas to achieve its elastic effect. It has a good vibration isolation effect, reduces the damage of the equipment, and improves the service life of the equipment.
Other JBF air spring Model we could offer
JBF80/142-2
JBF82/142-2
JBF98/101-1
JBF100/166-2
JBF100/238-3
JBF105/58-1
JBF112/86-1
JBF120/132-2
JBF125/112-1
JBF125/228-2
JBF126/168-2
JBF132/100-1
JBF150/140-2
JBF150/212-2
JBF150/304-3
JBF156/113-1
JBF156/195-2
JBF160/216-2
JBF160/230-2
JBF170/120-1
JBF174/126-1
JBF174/232-2
JBF180/152-2
JBF180/156-1
JBF190/170-2
JBF190/248-3
JBF192/140-2
JBF200/212-2
JBF200/304-3
JBF208/90-1
JBF256/166-2
JBF264/90-1
JBF280/218-2
JBF280/316-3
BF284/272-2
JBF290/105-1
JBF300/255-2
JBF300/218-2
JBF300/316-3
JBF310/160-1
JBF320/186-2
JBF320/240-2
JBF320/350-3
JBF340/226-2
