Conveyor Spring Actuator Industrial Air Springs W01-358-7605 Style 116-1 W013587605 3/4" NPT Centered Port
Conveyor Spring Actuator W01-358-7605 Style 116-1 W013587605 3/4" NPT Centered Port Industrial Air Springs
Cross Reference
Firestone Style 116-1; 116B1
Air spring supplier/competitor: Firestone
Supplier//competitor: W01-358-7605; W01 358 7605;W013587605; WO1-358-7605; WO1 358 7605; WO13587605
Specifications and Technical Parameters
2pcs×3/8-16 Blind nuts on top cover plate
2pcs×3/8-16 Blind nuts on bottom cover plate
2.75'' screw center distance
3/4'' NPT Centered Air Inlet
5.31'' cover plate diameter
Bead plate
Two ply Bellows
Single Convoluted/ Convolution
Rubber and Steel Material
Application
The use of rubber air springs on the conveyor has a very good quiet effect, and also provides very high isolation efficiency. At the same time, the rubber air spring does not contain rods that will break or wear, so it is maintenance-free.
Air springs will not rust and break, can withstand corrosive environments and washdown procedures, and are easy to replace during production use, reducing costs.
|
Description |
Firestone style |
Firestone assembly number |
Continental |
Continental order number |
|
Rubber Bellow Only |
|
|
FS 330-14 S VP |
72585 |
|
Crimped, 1/4 BSP, Blind nuts 19-.75 |
|
W01-M58-6040 |
FS 330-14 CI G 1/4 |
61937 |
|
Crimped, 3/4 BSP, Blind nuts |
|
|
FS 330-14 CI G 3/4 |
67875 |
|
Crimped, 1/4 NPT, Blind nuts 19-.75 |
|
W01-358-7040 |
FS 330-14 CI 1/4 NPT |
75425 |
|
Crimped, 3/4 NPT, Blind nuts 19-.75 |
|
W01-358-7042 |
FS 330-14 CI 3/4 NPT |
74099 |
|
Threaded Bead Rings |
|
|
FS 330-14 RI |
|
|
Rubber Bellow Only |
113 |
W01-358-0135 |
FS 530-11 S VP |
60381 |
|
Crimped, 1/4 BSP, Blind nuts |
113 |
W01-M58-6101 |
FS 530-11 CI G 1/4 |
61359 |
|
Crimped, 3/4 BSP, Blind nuts |
113 |
W01-M58-6100 |
FS 530-11 CI G 3/4 |
63205 |
|
Crimped, 1/4 NPT, Blind nuts |
113 |
W01-358-7103 |
FS 530-11 CI 1/4 NPT |
63540 |
|
Crimped, 3/4 NPT, Blind nuts |
113 |
W01-358-7101 |
FS 530-11 CI 3/4 NPT |
74094 |
|
Countersunk Bead Rings |
113 |
W01-M58-7538 |
|
|
|
Threaded Bead Rings |
|
|
FS 530-11 RI |
|
|
Rubber Bellow Only |
113-1 |
W01-358-0150 |
|
|
|
Crimped, 1/4 BSP, Blind nuts |
113-1 |
W01-M58-6371 |
|
|
|
Crimped, 3/4 BSP, Blind nuts |
113-1 |
W01-M58-6369 |
|
|
|
Crimped, 1/4 NPT, Blind nuts |
113-1 |
W01-358-7091 |
|
|
|
Crimped, 3/4 NPT, Blind nuts |
113-1 |
W01-358-7092 |
|
|
|
Countersunk Bead Rings |
113-1 |
W01-358-7277 |
|
|
|
Rubber Bellow Only |
119 |
W01-358-0119 |
|
|
|
Socket head bead rings |
119 |
W01-M58-6974 |
|

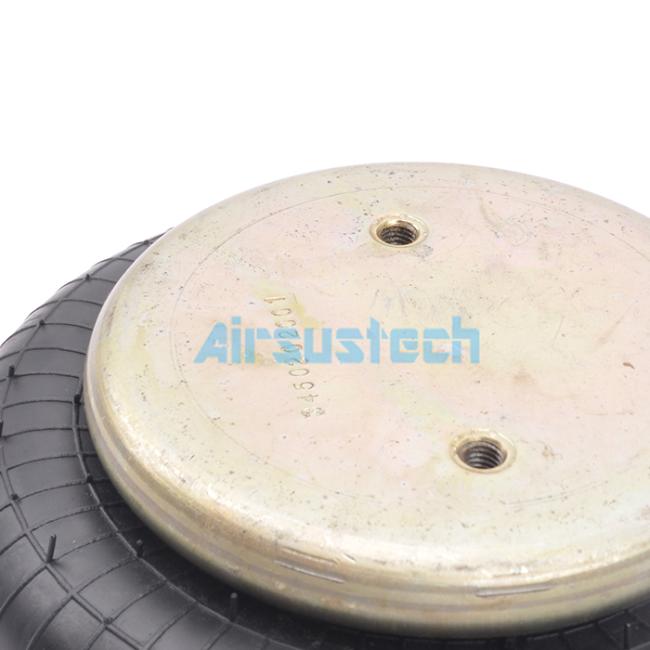

The picture of AIRSUSTECH Air Bag / air spring / air balloon/ air shocks/ air spring assembly
