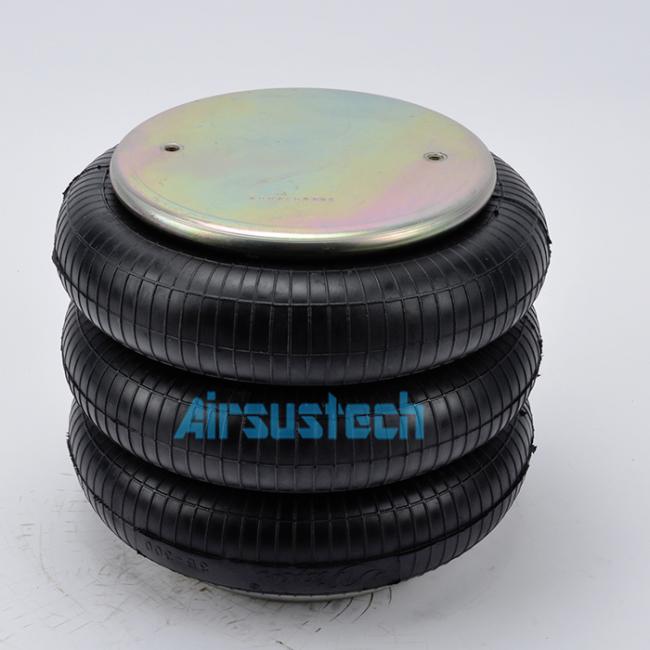

Style 352 Firestone Suspension Air Springs Bellow Triple Convoluted W01-358-8048 W01-358-8047
Style 352 Firestone W01-358-8048 W01-358-8047 Suspension Spring Bellow Triple Convoluted
Basic Information
Product name: Air spring, air bag, air springs, air bags, air shocks, air suspension, air suspension springs
Sample: Available
Condition: 100% New
HS Code: 8708809000
Cross Reference
|
|
Description |
Assembly Order No |
|
Style 352 Two Ply Bellows
|
Blind nuts, 1/4 NPT |
W01-358-8048; W01 358 8048; W013588048; WO1-358-8048; WO1 358 8048; WO13588048 |
|
Blind nuts, 3/4 NPT |
W01-358-8047; W01 358 8047; W013588047 WO1-358-8047; WO1 358 8047; WO13588047 |
Specifications and Technical Parameters
Triple Convolution Air Spring
2-Ply Bellows
Style #352
Blind Nuts
1/4 or 3/4 NPT Air Inlet
Top plate blind nuts: 2pcs× 3/8-16UNC
Bottom plate blind nuts:2pcs× 3/8-16UNC
Screw center distance: 6.20''
Cover plate diameter: 10.40''
Rubber bellow diameter at 100PSIG: 13.1''
Air Fittiings: 1/4NPT Or 3/4 NPT, Offset
Girdle hoop/Belt loop: 2 pieces
Bumper: NO/ Without
Other models
Rubber Bellow Only FT 330-29 S VP 66726
Crimped, 1/4 BSP, Blind nuts 352 W01-M58-6129 FT 330-29 CI G 1/4 61831
Crimped, 3/4 BSP, Blind nuts 352 W01-M58-6128 FT 330-29 CI G 3/4 75140
Crimped, 1/4 NPT, Blind nuts 352 W01-358-8048 FT 330-29 CI 1/4 NPT 75430
Crimped, 3/4 NPT, Blind nuts 352 W01-358-8047 FT 330-29 CI 3/4 NPT 65978
Countersunk Bead Rings T322 89413
Threaded Bead Rings FT 330-29 RI
Rubber Bellow Only 313 & 333 W01-358-7900 FT 530-32 S VP 68739
Crimped, 1/4 BSP, Blind nuts 313 & 333 W01-M58-6120 FT 530-32 CI G 1/4 60717
Crimped, 3/4 BSP, Blind nuts 313 & 333 W01-M58-6122 FT 530-32 CI G 3/4 63396
Crimped, 1/4 NPT, Blind nuts 313 & 333 W01-358-7808
Crimped, 3/4 NPT, Blind nuts 313 & 333 W01-358-7802 FT 530-32 CI 3/4 NPT 75257
Countersunk Bead Rings 313 & 333 W01-M58-7801 T321 88110
Threaded Bead Rings FT 530-32 RI
Rubber Bellow Only 312 W01-358-7914 FT 960-34 S VP 61777
Socket Head Bead Rings 312 W01-M58-7530 FT 960-34 RS 61909
Threaded Bead Rings FT 960-34 RI
Rubber Bellow Only 320 W01-358-7276 FT 1710-38 S VP 61784
Socket Head Bead Rings 320 W01-M58-6983 FT 1710-38 RS 75398
Threaded Bead Rings FT 1710-38 RI
Rubber Bellow Only 321 (319) W01-358-7919 FT 2870-45 S VP 61790
Socket Head Bead Rings 321 (319) W01-M58-6984 FT 2870-45 RS 61912
Threaded Bead Rings FT 2870-45 RI
Rubber Bellow Only 348-3 W01-358-1023 FT 5450-44 S VP 61787
Socket Head Bead Rings 348-3 W01-M58-6971 FT 5450-44 RS 61913
Threaded Bead Rings FT 5450-44 RI
