W01-M58-6160 WO1M586160 Firestone Air Bags Double Convoluted 1/4 BSP Indsutrial Bellow Actuator

Firestone Air Bags W01-M58-6160 WO1M586160 Double Convoluted 1/4 BSP Indsutrial Bellow Actuator



Basific Information

Product name: air spring, air bag, air suspension, air shock

Convolution: Double

Material: Rubber and steel

Sample: Available

Condition: 100% New

Payment: T/T, Western Union, Paypal or Others

Delivery time: 3-8 Working days

Shipping ways: By express, by sea, by air or others

Cross Reference


Firestone Style 25
Firestone W01-M58-6160

Firestone W01 M58 6160

Firestone W01M586160

Firestone WO1-M58-6160

Firestone WO1 M58 6160

Firestone WO1M586160

Firestone w01-M58-6160

Firestone w01 M58 6160

Firestone w01M586160

Firestone wo1-M58-6160

Firestone wo1 M58 6160

Firestone wo1M586160

Specifications and Technical Parameters

Two ply Bellows
Blind nuts on top plate: 2pcs × M8×1.25
The screw center on top plate: 44mm
Blind nuts on bottom plate: 2pcs × M8×1.25
The screw center on bottom plate: 44mm
Top cover plate diameter: 114mm
Bottom cover plate diameter: 114mm
Max. OD at 7 bar: 163mm
Girdle hoop: Without
Bumper block/ Rubber bumper: One piece

Other 25 Style Firestone air spring replacement we could offer

About convoluted air spring

What is a double convoluted Air Spring? There is a belt in the middle of the air spring. This belt is called an air spring hoop, and the number of this hoop is one of the basic elements to distinguish the number of bellow.

The double convoluted industrial air spring is a curved capsule made of rubber mesh. The two ends of the capsule need to be connected with two steel plates to form two compressed air chambers. The rubber and the wire itself do not provide load bearing capacity, but are completed by the compressed air filled in the capsule. The hyperbolic industrial air spring is an excellent low-frequency vibration isolator, which relies on the pressure change of the compressed air in the rubber bag to achieve the required stiffness. At present, the hyperbolic industrial air spring is widely used in precision instruments, precision machinery and special equipment low frequency vibration isolation.

The shock absorption effect of the capsule air spring is far better than that of the traditional steel coil spring, buffer pad, etc. The upper and lower end covers of the air spring are connected by rubber air bags and compressed air, which can reduce the vibration of any frequency to 1Hz. In addition, due to the adjustable softness and hardness of the capsule air spring, it can be applied to shock absorption under various load conditions without replacing the shock absorber, and achieve a satisfactory shock absorption effect.

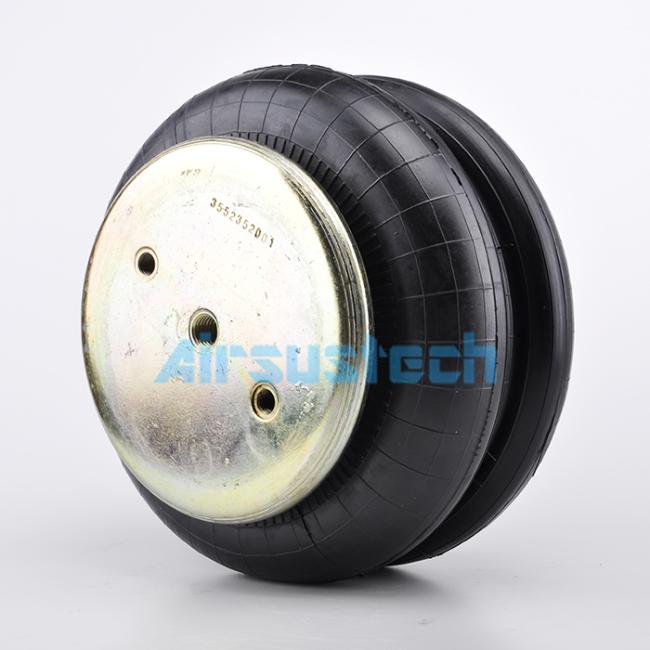

Airbag picture
