Firestone 233D2 Style Industrial Air Springs Double Convoluted Air Bags WOM586107 W01-M58-6107 For Bevelling Machines
WOM586107 W01-M58-6107 Firestone 233D2 Style Air Spring Industrial Double Convoluted Air Bags For Bevelling Machines
Cross Reference
Firestone Style 233-2, 233D2
Firestone W01-M58-6107
Firestone W01 M58 6107
Firestone W01M586107
Firestone WO1-M58-6107
Firestone WO1 M58 6107
Firestone WO1M586107
Firestone w01-M58-6107
Firestone w01 M58 6107
Firestone w01M586107
Firestone wo1-M58-6107
Firestone wo1 M58 6107
Firestone wo1M586107
Specifications and Technical Parameters
|
Two Ply Bellows |
|
|
Top plate mounting threads |
4pcs × M8 × 1.25 |
|
Bottom plate mounting threads |
4pcs × M8 × 1.25 |
|
Air inlet/air fittings/air holes |
1/4 BSP, G1/4 |
|
Top cover plate diameter |
287mm |
|
Bottom cover plate diameter |
287mm |
|
Max. OD at 7 Bar |
394mm |
|
Min. Height |
76mm |
|
Max. Height |
406mm |
|
Bumper Block |
Without |
|
Girdle hoop |
1 pc |
Other 233-2 Style Firestone and Cross reference
Blind nuts, 3/4 BSP
Firestone assembly number
W01-M58-6109, W01 M58 6109, W01M586109, WO1-M58-6109, WO1 M58 6109, WO1M586109, wo1-m58-6109, wo1 m58 6109, wo1m586109, w01-m58-6109, w01 m58 6109, w01m586109
Air spring components
Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber.
Girdle: Only found in air springs of convoluted design, separating the bellows chambers.
Bumper: An optional layer of padding protecting the piston from damage if the air spring fails.
Air spring can be used in bevelling machines
Beveling machine is a kind of equipment used for beveling sheet metal parts and steel structures. The airbag is one of the main components of this device. First of all, the air spring can adjust the height, and the height of the air spring can be changed or maintained through the height valve, so that the air spring can keep the working height basically unchanged under different loads. Similarly, the height control valve can also be used to make the air spring have different heights under a certain load, so it can adapt to various structural requirements.
Secondly, the air spring can be used as a pneumatic rubber actuator, which can be pressurized on the beveling machine

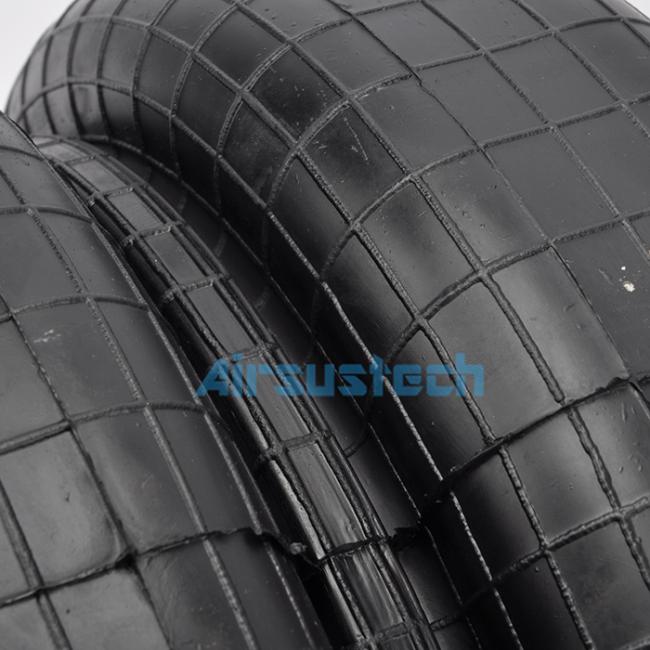

Airbag picture
