Rubber Industrial Air Springs Firestone W01-M58-6129 WO1M586129 FT 330-29 CI G 1/4 Contitech Triple Bag
Industrial Firestone W01-M58-6129 WO1M586129 FT 330-29 CI G 1/4 Contitech Replacement Triple Bag Rubber Air Spring
Cross Reference
Firestone Style 352, 352D
Firestone W01-M58-6129
Firestone W01 M58 6129
Firestone W01M586129
Firestone WO1-M58-6129
Firestone WO1 M58 6129
Firestone WO1M586129
Firestone w01-M58-6129
Firestone w01 M58 6129
Firestone w01M586129
Firestone wo1-M58-6129
Firestone wo1 M58 6129
Firestone wo1M586129
Contitech FT 330-29 CI G 1/4
Contitech FT330-29CIG1/4
Contitech FT 33029CIG1/4
Contitech FT 330-29 CI
Contitech FT 330 29 CI
Contitech 61831
Specifications and Technical Parameters
|
Two Ply Bellows |
|
|
Top plate mounting threads |
2pcs × M8 × 1.25 |
|
Top plate screw center distance |
157mm |
|
Bottom plate mounting threads |
2pcs × M8 × 1.25 |
|
Bottom plate screw center distance |
157mm |
|
Air inlet/air fittings/air holes |
1/4 BSP, G1/4, Offset |
|
Top cover plate diameter |
264mm |
|
Bottom cover plate diameter |
264mm |
|
Max. OD at 7 Bar |
333mm |
|
Min. Height |
122mm |
|
Max. Height |
483mm |
|
Bumper Block |
Without |
|
Girdle hoop |
2 pcs |
Other 352 Style Firestone replacement and Cross reference
1. Crimped, Blind nuts, 3/4 BSP
Firestone assembly number
W01-M58-6128, W01 M58 6128, W01M586128, WO1-M58-6128, WO1 M58 6128, WO1M586128, wo1-m58-6128, wo1 m58 6128, wo1m58 6128, w01-m58-6128, w01 m58 6128, w01m586128
Reference
Contitech FT 330-29 CI G 3/4, FT330-29CIG3/4, 75140
2. Crimped, 1/4 NPT, Blind nuts
Firestone W01-358-8048, W01 M58 8048, W01M588048, WO1-M58-8048, WO1 M58 8048, WO1M588048, wo1-m58-8048, wo1 m58 8048, wo1m588048, w01-m58-8048, w01 m58 8048, w01m588048
Reference
Contitech FT 330-29 CI 1/4 NPT, FT330-29CI1/4NPT, 75430
3. Crimped, 3/4 NPT, Blind nuts
Firestone W01-358-8047, W01 M58 8047, W01M588047, WO1-M58-8047, WO1 M58 8047, WO1M588047, wo1-m58-8047, wo1 m58 8047, wo1m588047, w01-m58-8047, w01 m58 8047, w01m588047
Reference
FT 330-29 CI 3/4 NPT, FT330-29CI3/4NPT, 65978
Application
Air bag for mechanical drying equipment
Vacuum Belt Conveyor Airbag
Modification of shock-absorbing pneumatic tires for small lifting equipment
Dehydrator air bag
Pneumatic shock absorption of mechanical equipment
Mining equipment air bag
Amusement equipment airbag
Crazy car flying airbag
Carousel airbag
Large industrial washing machine air bag

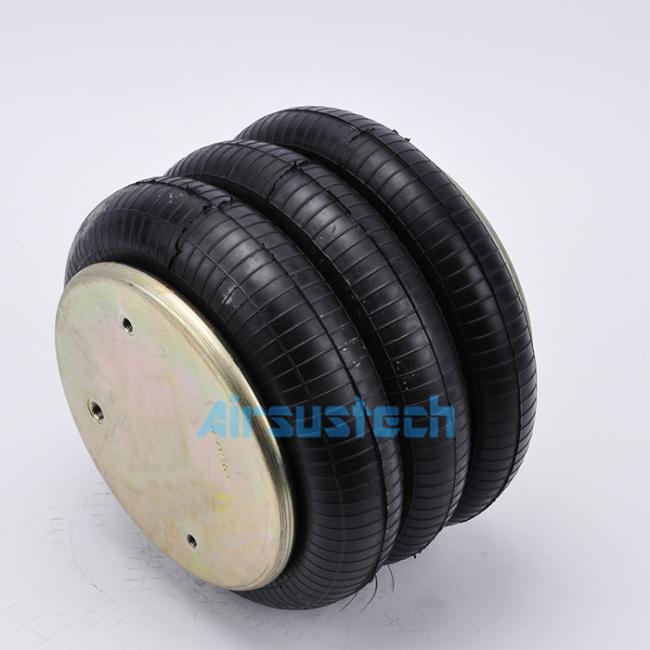

Air Bag Picture
