Double Convoluted Rubber Air Actuator Airsustech Air Bags 2B53022 3/4 Air Inlet Contitech FD 530-22 CI

Airsustech Air Bags 2B53022 3/4 Air Inlet Contitech FD 530-22 CI Double Convoluted Rubber Air Actuator

Basic Information

Product naem: air spring, air bag, air bags, air suspension, air shocks, air balloon, pneumatic cylinder

Convolutions: Double

Brand: Netural Or Others

Condition: 100% New

Shipped from: Guangzhou, China

Ship to: All over the world

Payment way: T/T, Western Union, Paypal or Others

Currency: USD, RMB, EUR, GBP

Packing : Strong cartons

Shipping way: By express, by air, by sea or as customers' request

Cross Reference

Contitech FD 530-22 CI

Contitech FD530-22CI

Contitech FD 530 22 CI

Contitech FD53022CI

Type Order No.
rubber bellows only : 70413
with crimped plates,1/4 NPT air inlet A = 3.13 in. excentrical: 64548
with crimped plates,3/4 NPT air inlet A = 3.13 in. excentrical 74101

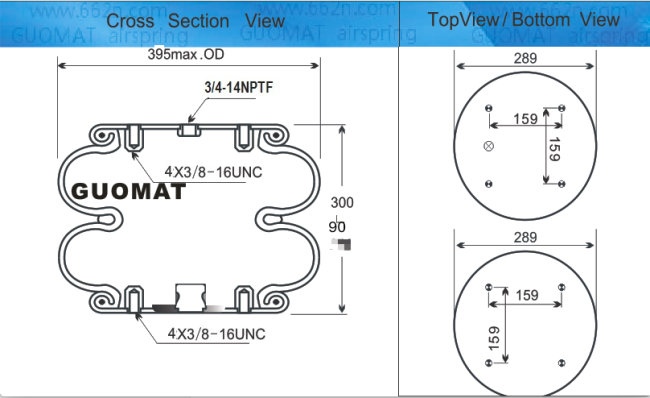

Specifications and Detailed Technical Parameters:AIRSUSTECH 2B53022

1. Max. OD: 395mm

2. Blind nuts on top plate: 4pcs×3/8-16UNC

    The screw center distance: 159mm

3. Blind nuts on bottom plate: 4pcs×3/8-16UNC

    The screw center distance: 159mm

4. Min. Height: 90mm

5. Max. Height: 300mm

6. Air inlet/Air fittings/ Air hole: 3/4-14NPTF

7. Bumper block: Without

8. Girdle hoop: 1pcs

9. Top cover plate: 289mm

10. Bottom cover plate: 289mm

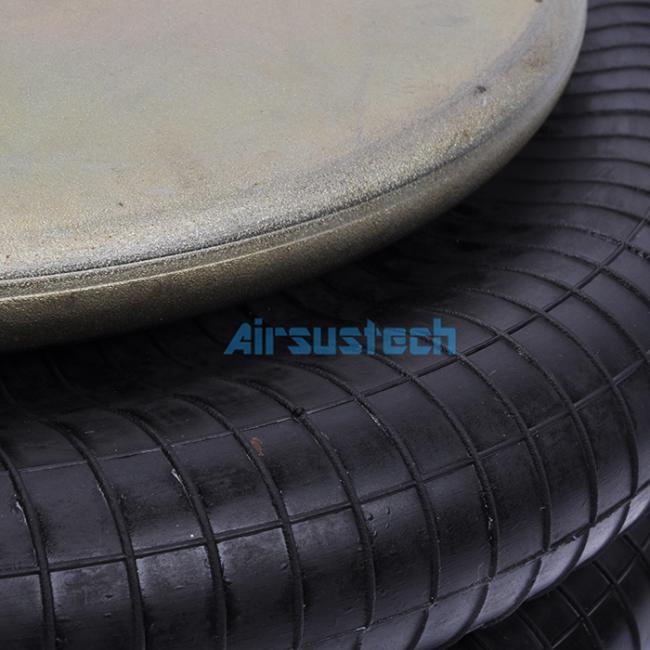

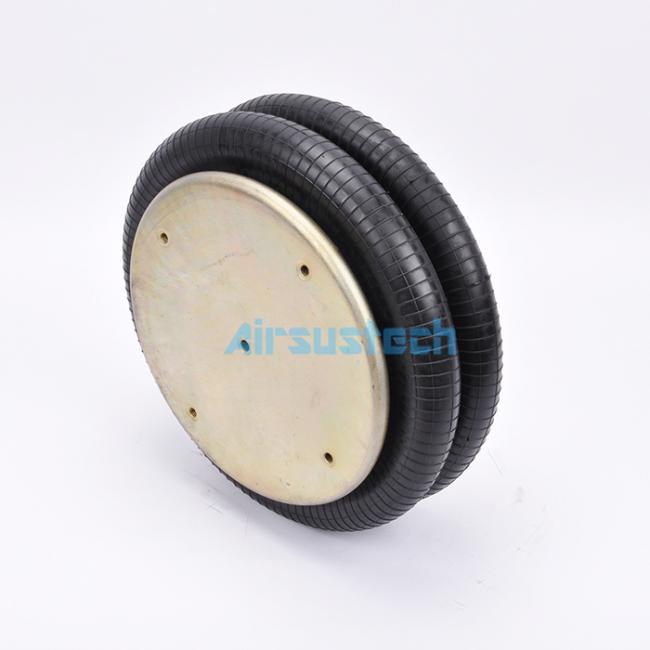

The related picture of 2B53022




Other series




Application

Papermaking Equipment Presses
Papermaking Equipment Press Roller
Pickling tank lifter
cable tensioner
Centrifuges
Commercial laundry machines
Measuring and weighing machinery
Textile looms
Amusement park rides
Packaging equipment
Clutch systems
Conveyor belts and scissor lifts
