Pneumatic Triple Convoluted Air Spring Firestone W01-358-8033 Contitech FT 330-29 525 Combo Stud 325mm Max. OD
Triple Pneumatic Convoluted Air Spring Firestone W01-358-8033 Contitech FT 330-29 525 Combo Stud 325mm Max. OD
Basic Information
|
Product name |
air springs, air bags, air suspensions, air bellow, rubber bellow, air shocks, pneumatic cylinders |
|
Sample |
Available |
|
HS Code |
8708809000 |
|
Type |
air spring assembly |
|
Convolutions |
Three |
|
Function |
Vibration isolation or lifting |
|
Brand |
Netural Brand Or As Customers' Request |
|
Shipping way |
By express if small quantity, By air/by sea if big quantity |
|
Ship From |
Guangzhou, Guangdong, China |
|
Ship to |
Worldwide |
Cross Reference
Firestone : W01-358-8033; W01 358 8033; W013588033; WO1-358-8033; WO1 358 8033; WO13588033; wo1-358-8033; wo1 358 8033; wo13588033
Contitech : FT 330-29 525; FT330-29525; FT33029525; FT 330 29 525; FT 330-29525
Goodyear : 3B12-312; 3B12 312; 3B12 312
: 578933100; 578 93 3 100; 578-93-3-100
Triangle : 4508/4525/6334
Hendrickson: S14487
Waston&Chalin : AS-0168G; AS 0168G; AS0168G
Specifications and Detailed Technical Parameters
1. Top plate bolts/studs
1pc Combo Stud- 3/4-16UNC, 1/4NPTF Air fittings
1pc Stud: 1/2-13UNC
2. The screw center distance on top plate: 157.5mm
3. Bottom plate blind nuts: 4pcs× 3/8-16UNC
4. The screw center distance on bottom plate: 111.4mm
5. Top plate diameter: 231mm
6. Bottom plate diameter: 231mm
7. Natural Rubber Bellow Diameter: 295mm
8. Max. OD at 0.8MPA: 325mm
9. Height: 297mm
10. Working stroke: 115-470mm
11. Bumper block: With
12. Girdle hoop/ Belt loop: 2pieces
Application
Shaker
Vibrating conveyors
Vibrating hoppers and bins
Isolation of flexible testing machines
Hammer isolation
Isolation of frozen food and plastic pellet compaction system
Isolation of dredger cab
Isolates computer and spectrometer from external vibrations
Isolation of oscillating equipment
Sensitive equipment (laser table) or isolated machine control for sensitive equipment
Jet engine test platform (isolation and thrust absorption)
Industrial Suspension Systems
Large dryer (milk dryer)
Shakeout systems for foundries
centrifugal separator
Scales and weight control equipment
Presses
Compressors, fans and blowers
textile machine
Reduces harsh shocks and eliminates idler shock
Conveyor Load Point
Seat Suspension
Industrial washing machine
Protect Polaris and Atlas rockets stored on the ground
Handling transfer
Coordinate measuring tables and machinery
Replacement of steel springs for better vibration isolation,
height control or height adjustment

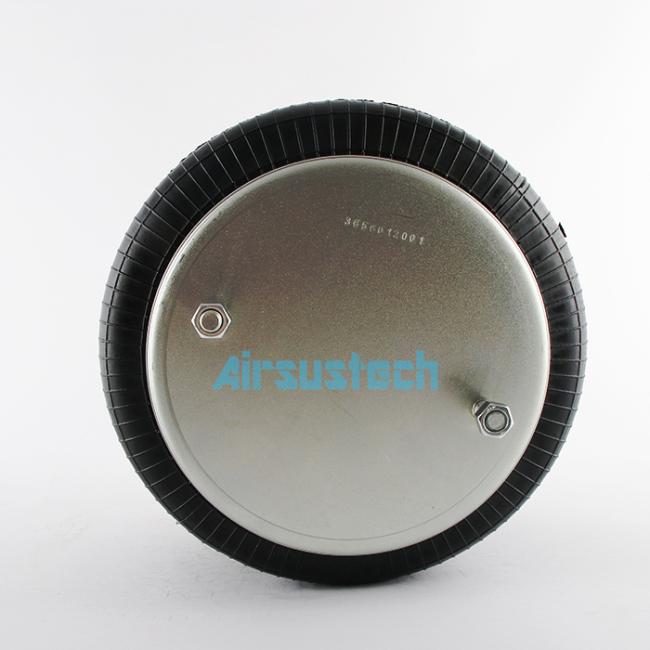

The related picture
