Triple Convoluted Industrial Air Springs Contitech FT 816-40 DS Firestone W01R584068
Contitech FT 816-40 DS Firestone W01R584068 Triple Convoluted Industrial Air Springs
Cross Reference
Air Supension supplier/competitior: Contitech
Supplier/competitior number: FT 816-40; FT 816-40 DS; FT 816-40 DS G 1/2; FT816-40DSG1/2; 68053
Air Supension supplier/competitior: Firestone
Supplier/competitior number: W01R584068; W01 R58 4068; W01-R58-4068; WO1R584068; WO1 R58 4068; WO1-R58-4068
Air Supension supplier/competitior: DUNLOP PNEURIDE
Supplier/competitior number: 16" x 3
Air Supension supplier/competitior: DUNLOP SPRINGRIDE
Supplier/competitior number: SP2141
Air Supension supplier/competitior: NORGREN
Supplier/competitior number: M/31163; M 31163; M31163
Air Supension supplier/competitior: PARKER
Supplier/competitior number: 9109177
Air Spring spcifications and data parameters
Air inlet: G1/2
Mounting threads on top plate: 4pcs×M10
Screw center distance on top plate: 282.5mm
Mounting threads on bottom plate: 4pcs×M10
Screw center distance on bottom plate: 282.5mm
Top plate diameter: 310mm
Bottom plate diameter: 310mm
Hmax: 550mm
Hmin: 120mm
Girdle hoop: 2pcs
Max. OD:430mm
Min. Pressure: 0 bar
Return force to min height ≤ 100 N
Overall weight: 10.4 kg
Pneumatic application – static characteristic values
Force F [kN]
| Pressurep [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H [mm] | 450 | 16.1 | 21.8 | 27.6 | 33.8 | 40.2 | 46.8 | 43 |
| 400 | 19.1 | 25.6 | 32.3 | 39.3 | 46.5 | 53.8 | 39 | |
| 350 | 21.5 | 28.8 | 36.2 | 44 | 51.9 | 60 | 35 | |
| 300 | 24.1 | 32.2 | 40.5 | 49.2 | 58.2 | 67.4 | 31 | |
| 250 | 27.1 | 36.3 | 45.5 | 55.2 | 65.1 | 75.2 | 27 | |
| 200 | 29.8 | 39.7 | 49.8 | 60.1 | 70.8 | 81.5 | 22 | |
| 150 | 31.4 | 41.8 | 52.3 | 63 | 73.8 | 84.8 | 18 | |
Other 16'' series model
16''×1 with dismountable plates,G1/2 air inlet
Reference
Firestone W01-R58-4066; W01 R58 4066; W01R584066； WO1-R58-4066; WO1 R58 4066; WO1R584066
DUNLOP 16 x 1
Contitech FS 816-15 DS; FS816-15DSG1/2
NORGREN M/31161; M 31161; M31161
PARKER 9109026
16 ''X 2 Only rubber bellow
Firestone W01-R58-4023; W01 R58 4023; W01R584023; WO1-R58-4023; WO1 R58 4023; WO1R584023
DUNLOP SP 1129; SP1129
16 X 2 with dismountable plates,G1/2 air inlet
Reference
Firestone W01-R58-4067; W01 R58 4067; W01R584067; WO1-R58-4067; WO1 R58 4067; WO1R584067
WEWELER USN 510008DX
DUNLOP SP 1557
Contitech FD 816-30 DS; FD816-30DSG1/2
NORGREN M/31162; M 31162; M31162
PARKER 9109171
16‘’×3 Only rubber bellow
Reference
Contitech FT 816-40 VP

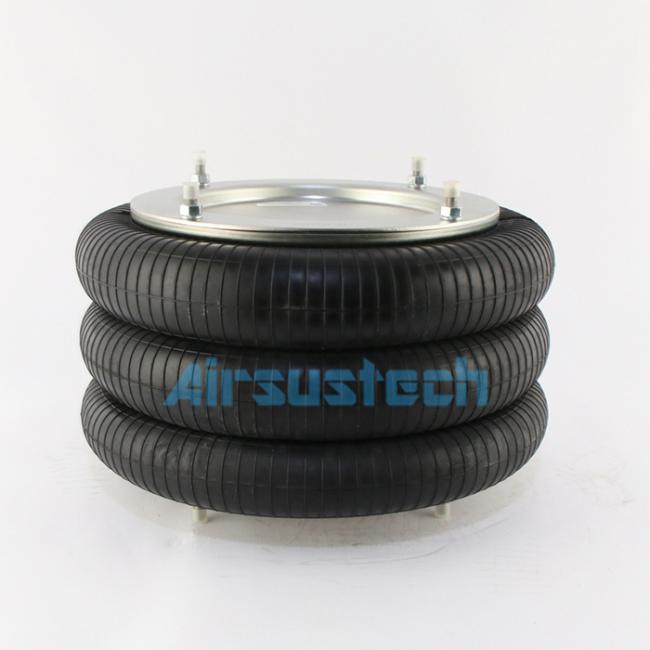

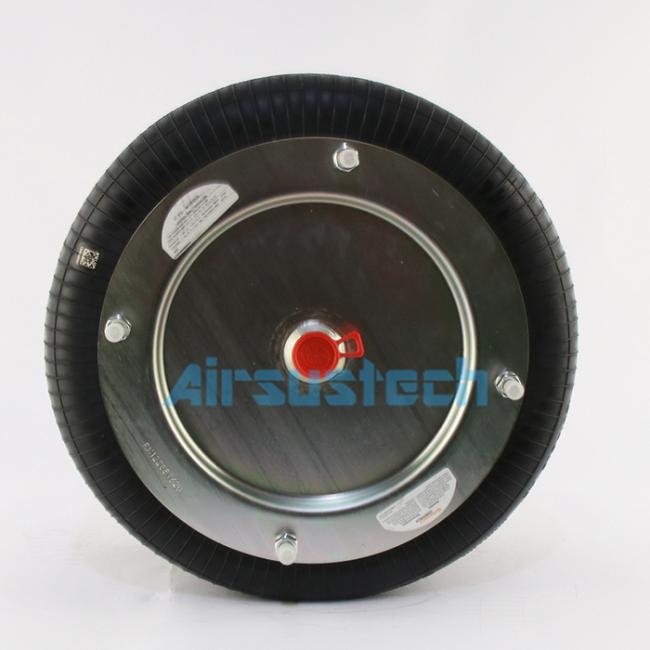

The reated picture of air springs/convoluted air spring/air bag/air balloon
