TS16949 Industrial Air Springs Phoneix 800 827 9009 Air Lift 58103 Goodyear 1B5-2 579913502 Replacement 1/4NPT

Phoneix 800 827 9009 Air Lift 58103 Goodyear 1B5-2 579913502 Replacement 1/4NPT Single Convoluted Industrial Air Spring

Cross Reference

Air spring supplier: Goodyear

Supplier number: 1B5-2

Air spring supplier: Air Lift

Supplier number: 58103

Specifications and Detailed Technical Parameters

About air spring

1. Bellows Type Air Spring

Bellows air springs have one, two orthree convolutions in the flexible member. There are two styles ofbellows; crimped design and sleeve type.With the crimped design, the end retainers are permanently attached by mechanically crimping the retaineraround the built-in bead wire of the flexible member.

Components: Upper Bead Plate, Lower Bead Plate, Flexible Member, Air Inlet, Blind Tap, Girdle Ring, Rubber Bumper
(Optional)

2. Sleeve Type Bellows
Sleeve type bellows offer similar characteristics to the crimped design bellows, but, as with the sleeve type rolling lobe the flexible member is constructed without internally molded bead wires. The end retainers are permanently attached by pinching the flexible member between the end retainers and external crimp rings which are then swaged to the proper diameter. Sleeve type bellows offer the lowest force to compress of any type of airspring

Components: Upper Retainer, Lower Retainer, Crimp Ring, Air Inlet, Flexible Member, Blind Tap, Girdle Ring, Rubber Bumper(Optional)

Applications

Vibrating screen, Vibrating conveyor, Vibrating hoppers and bins, Isolation of flexible test machines, Hammer isolation, Isolate frozen food and plastic pellet compaction systems, Isolation of the dredge cab, Isolate computers and spectrometers from external vibrations, Isolation of oscillating equipment, Isolation of sensitive equipment (laser workbench) or sensitive machine control, Jet engine test bed (isolation and thrust absorption), Industrial suspension system, Large dryer (milk dryer), Foundry drop-out system, centrifugal separator, Scales and weight control equipment, Press, Compressors, fans and blowers, Loom, Reduce severe impacts and eliminate idler wheel impacts at conveyor loading points, Seat suspension, Industrial washing machine, Protect Polaris and Atlas rockets during storage, ground handling and transportation, Coordinate measuring table and machinery, Replace steel springs for better vibration isolation, height control, or height adjustment

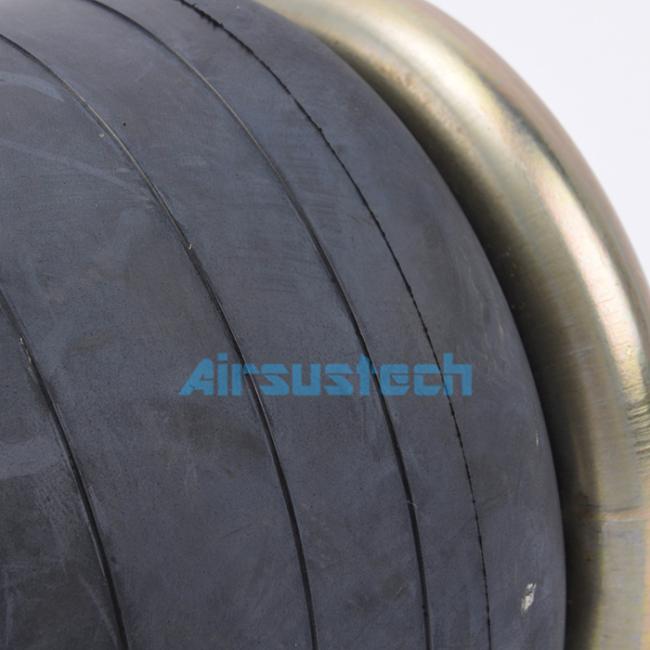

Product picture
