Dunlop 6''X2 Bellow Industrial Air Springs Double Convoluted G1/8 Air Fittings M10 M8 Bolts Textile Looms

Dunlop 6''x2 Bellow Double Convoluted G1/8 Air Fittings M10 M8 Bolts Textile Looms Industrial Air Springs

Cross Reference

Specifications and Detailed Technical Parameters

1. Top plate

2pcs × M10 Bolts/studs,  2pcs × M8 Bolts/studs

2. Bottom plate

2pcs × M10 Bolts/studs, 2pcs × M8 Bolts/studs

3. Air Inlet/Air fittings/ Air hole

G1/8, Centered

4. Height: 126mm

5. Rubber Bellow diameter: 152mm

6. Cover plate diameter

153.6mm Top Cover Plate

153.6mm Bottom Plate

7. One piece of Girdle hoop

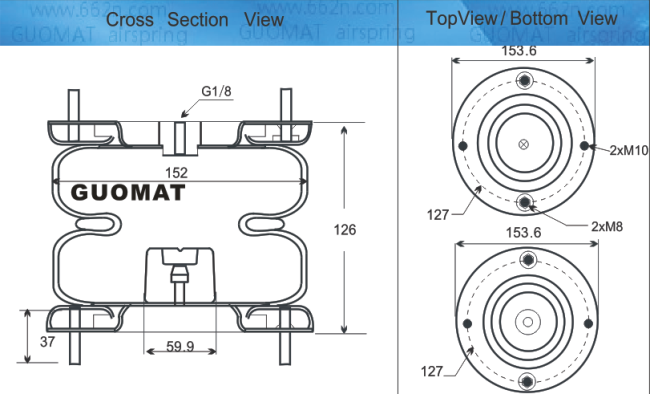

Drawing

Applications

Air spring in textile looms can play the role of cushioning vibration, control movement or pressurization. Compared with the cylinder or other elastic elements with the same function, the air spring is simple in structure and reliable in operation, without complex parameter calculation. It can also be used in the following machines:

Injection or ejection of parts during manufacturing; Cable, calender roller and conveyor belt tensioning device; Die cutting stamping device; Positioning equipment during manufacturing;Clamping devices for wood gluing machines, etc; Vertical lift of platform and rotary table; Jet engine test platform (isolation and thrust absorption); Industrial Suspension Systems; Large dryer (milk dryer); Foundry shaking sand system; centrifugal separator; Scales and weight control equipment; Press; Compressors, fans and blowers;  Rotary shaft actuator; Double acting actuators for sewing machines; Drain valve actuator; Start and disconnect power on the power roller conveyor; Power source of direct action molding press (metal and plastic); Power supply for compactor; Power supply for laminated plywood presses; Granite plate positioner; Pallet lift;  Lift pusher for hospital diagnostic tables; Reciprocating shaft seal; Underwater actuators for gate control; Wood positioner actuators for sawmills; Mechanical actuators for concrete blocks; Direction changing actuator in drum conveying system; The actuator for the sand box lift on the foundry's drop sand machine; Actuators for bottle and carton filling machines; tilting actuator (easy to operate); Actuators on the conveyer table; Actuators in the sand blasting chamber; Actuators in the glass grinding chamber; Industrial laundry equipment actuators; Energy storage device actuator; Can forming actuators (beverage and fuel industries); Car/truck front end alignment rack actuator

Other DUNLOP model replacement we could offer

8"X1 S08100
8"X1 S08101
9"X1/4X1 S09101
S0 9280
S09208
SP 1539(10X3)

12X3 9632 4PLY
