W01-358-7446 Industrial Air Springs Firestone Contitech FD 330-30 370 Goodyear 2B12-402 For HENDRICKSON TRAILER S3798
W01-358-7446 Firestone Contitech FD 330-30 370 Goodyear 2B12-402 Industrial Air Springs For HENDRICKSON TRAILER S3798
Cross Reference
Firestone style 22C-1.5; 22-1.5
Firestone W01-358-7446 / W01 358 7446 / W013587446
Firestone WO1-358-7446/ WO1 358 7446 / WO13587446
Firestone wo1-358-7446/ wo1 358 7446 / wo13587446
Contitech FD 330-30 370 / FD330-30 370 / FD330-30370 / FD 330 30 370 / FD33030370
Goodyear 2B12-402 / 2B12 402/ 2B12402
HENDRICKSON TRAILER S3798 / S-3798
R&S TRUCK & BODY 1082914
WATSON &CHALIN AS0005
Specifications and Technical Parameters
Type | industrial air springs |
Compressed Height | 3.50" |
Top Plate Width | 9.00" |
Base Width | 9.00" |
Bellows # | 22-1.5 |
Type | Double Bellows |
Max. Height | 13.5'' |
Max. OD | 13.5'' |
Top plate studs/bolts qty | 2pcs |
The screw center distance on top plate | 6.20'' |
Bottom plate blind nuts qty | 2pcs |
The screw center distance on bottom plate | 6.20'' |
Rubber bumper | With |
Girdle hoop | 1pcs |
| Application | Hendrickson Trailer S3798, R & S Truck & Body 1082914, Watson & Chalin AS-0005 |
Delivery time | 3-8 working days |
After-sales service | 1. Strict inspection during production 2. Re-check the product before shipment to ensure our packaging is in good condition 3. Track and receive feedback from customers |
About industrial air springs
Industrial air springs are commonly used in various industrial applications, including heavy equipment and machinery, vehicle suspension systems, and other applications that require vibration isolation or shock absorption. Air springs are essentially rubber bellows with compressed air inside, and they function by compressing and expanding as air pressure changes. This allows them to absorb shock and vibration, providing a smoother ride and less wear and tear on equipment. They are available in a variety of sizes and configurations to meet different requirements for load capacity, lift height, and other factors.
Features
Air springs are a type of suspension system used in vehicles and industrial applications that utilize compressed air to support a load or absorb shock. Some common features of air springs include their non-linear characteristic, which means their characteristic line can be designed into an ideal curve as needed , and their cushioning and anti-shock functions.
Air springs can be designed to provide a variable spring rate to accommodate different load ranges, and they have the ability to isolate vibrations and minimize noise in the suspension system. Additionally, some air springs may include features such as precision CNC-machined upper caps and piston assemblies, and hydraulic or remote lock-out controls to adjust the pressure and stiffness of the spring as needed.

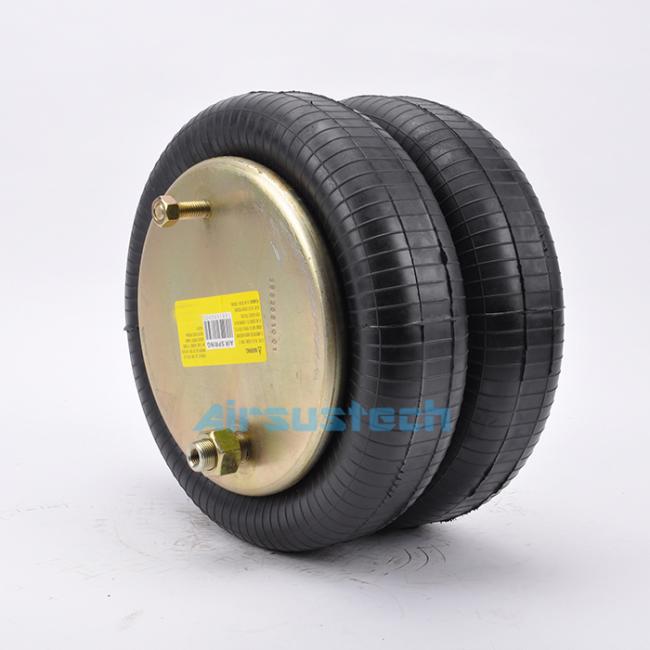

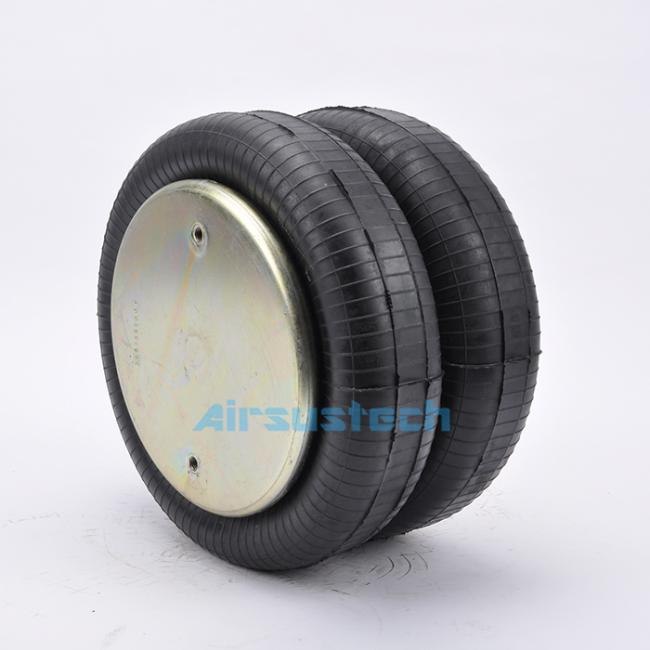

The picture of AIRSUSTECH suspension air springs/ industrial air springs
