3 Convoluted Industrial Air Springs Goodyear 3B14-452 Firestone W01-358-7850 WO13587850 Continental FT 530-35 441
Goodyear 3B14-452 Firestone W01-358-7850 WO13587850 Continental FT 530-35 441 3 Convoluted Industrial Air Springs
Cross Reference
Firestone W01-358-7850 / W01 358 7850 / W013587850
Firestone WO1-358-7850 / WO1 358 7850 / WO13587850
Contitech FT530-35 441 / FT 530-35 441 / FT 530 35 441 / FT530-35441/ FT53035441/ 64580
Goodyear 3B14-452/ 3B14 452 / 3B14452
Goodyear bellow number 566338335
Goodyear 3B14-370 / 3B14 370 / 3B14370
HISTEER 10301
SUSPENSIONSNC 200177
WATSON8 CHALIN AS-0086 / AS 0086 / AS0086
Link 1103-0001 / 1103 0001 / 11030001
Spring Valley AS-4441 / AS 4441 / AS4441
Triangle Part Number 4441
Triangle Bellows Number 6335
TRP. AS78500
AUTOMANN. SP3B32RA-7850 / SP3B32RA 7850 / SP3B32RA7850
AIRKRAFT 115066
AIRKRAFT 3B-357 / 3B 357 / 3B357
Specifications and Technical Parameters
|
Max. OD |
15.9 / 404 mm |
|
Min height |
4.6 / 117mm |
|
Max height |
20.1 / 518 mm |
|
Top/Bottom plate diameter |
11.31 / 287mm |
| Top plate screws qty | 1pc combo studs, one studs/bolts |
| The center distance on top plate | 6.20 / 157.5mm |
|
Bottom plate blind nuts qty |
2pcs |
| Bottom plate screw center distance | 6.20 / 157.5mm |
| Rubber bumper | With |
| Girdle hoop | 2 pieces |
|
HS Code |
8708809000 |
|
Sample |
Available |
|
Applications |
Industrial Mahines Or Others |
|
Material |
Rubber and Steel |
|
Type |
Triple Bellow Industrial Air Springs |
About us
Guangzhou GUOMAT Air Spring Co., Ltd. is a Chinese company that specializes in the production and development of air springs. It is over 15 years. GUOMAT air springs are widely used in the fields of commercial vehicles, bus and industrial machinery. Our products include gas springs, industrial air springs, bus air springs. bus air springs, cabin air springs, truck air springs, passenger car air suspension, air suspension compressor. We have a strong research and development team, as well as a complete quality management system, ensuring that their products meet international standards. The company also provides customization services to meet the unique needs of their customers.
The air springs cabe be used in industries, including agriculture, construction, mining, transportation, and more. Air springs are designed to provide a cushioning effect for heavy loads, reducing vibration and improving ride comfort.

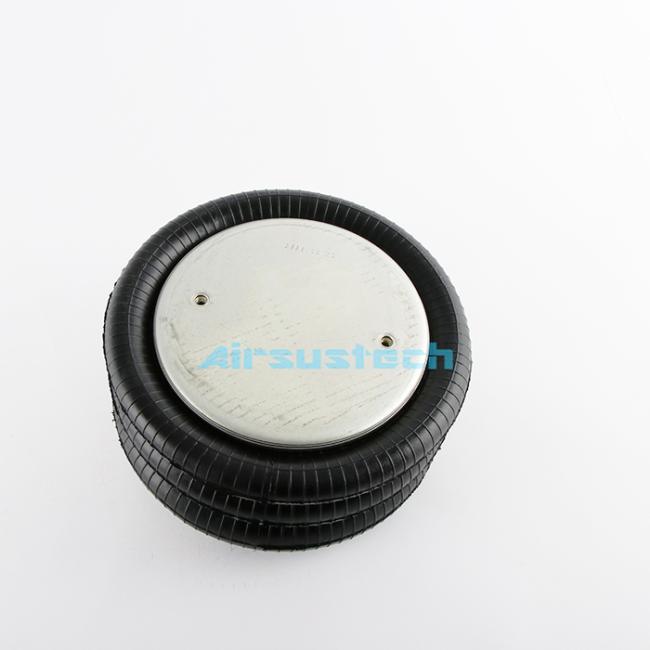

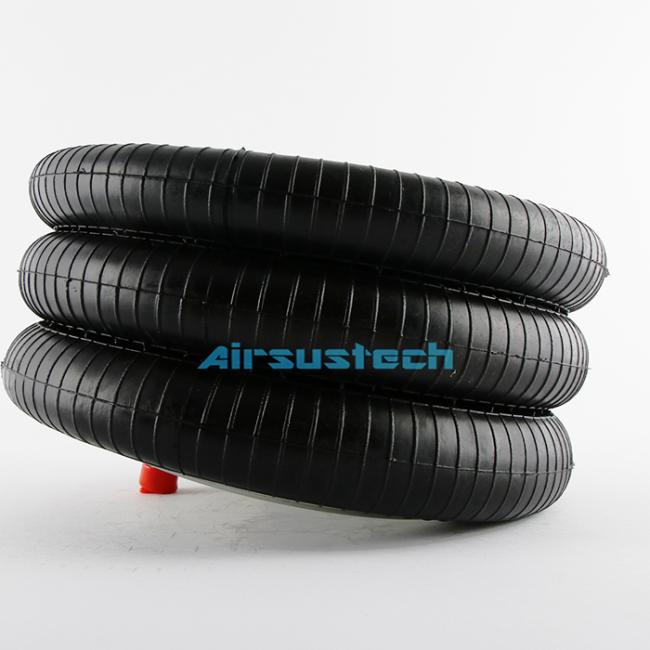

Industrial air springs photos
