Double Convoluted Industrial Air Springs Oria M-90 Crimped 1/4 NPT Blind Nuts Replacement
Oria M-90 Crimped 1/4 NPT Blind nuts Replacement Double Convoluted Industrial Air Springs
Cross reference
|
Brand |
Model number |
|
Oria |
M-90 / M 90 / M90 |
|
Firestone |
W01-358-7180, W01 358 7180 , W013587180 , WO1-358-7180, WO1 358 7180 , WO13587180 Firestone style 22 |
|
Contitech / Continental |
FD 330-22 363, FD 330 22 363, FD 330-22363, FD33022363 |
|
Goodyear |
2B12-425, 2B12 425, 2B12425, 2B12-311, 2B12 311, 2B12311 |
|
Goodyear bellow number |
578923309, 578 92 3 309, 578-92-3-309 |
|
Triangle |
6316/4363 |
|
Vibracoustic |
VSP2B22R7180 |
|
EI Ride |
8030190 |
|
Leland |
Sc2075, SC2075 |
|
Navistar |
1685179C1 |
|
Hendrickson |
1VA1816 |
|
Ridewell |
1003587180C |
|
SAF Holland |
57007180 |
|
Watson&Chalinl |
AS01541G/01881F |
|
Peerless |
0550 00001, 055000001 |
|
Kwiklok/Todco(Jifflox) |
|
|
Pirelli |
T22 / 94091 |
|
AIRKRAFT |
113490 11120123 2B - 301 / 2B-301 / 2B 301 / 2B301 |
Specifications and Detailed Technical Parameters
Air spring max. OD : 325mm
Air fittings: 1/4NPTF, Offset
Top/ Bottom plate blind nuts: 2x3/8-16UNC
The center distance between the two blind nuts: 157mm
Stroke : 81-305mm
Top/Bottom plate diameter: 231mm
Rubber bumper: No
Convolutions: Double
Type: Industrial air springs
Other model we could offer
Rubber Bellow Only
Cross reference
Oria M-90
Firestone style 22
Firestone W01-358-0226 / W01 358 0226 /W013580226 / WO13580226 /WO1-358-0226 / WO1 358 0226
Contitech FD 330-22 S VP / FD330-22SVP
Contitech 74199
Crimped, G1/4, Blind nuts
Oria M-90
Firestone style 22
Firestone W01-M58-6381 / W01 M58 6381 / W01M586381 / WO1-M58-6381 / WO1 M58 6381 / WO1M586381
Contitech FD 330-22 CI G 1/4 ; FD330-22CIG1/4
Contitech 60031
Crimped, G3/4, Blind nuts
Oria M-90
Firestone style 22
Firestone W01-M58-6200 / W01 M58 6200 / W01M586200 / WO1-M58-6200 / WO1 M58 6200 / WO1M586200
Contitech FD 330-22 CI G 3/4
Contitech 68674
Crimped, 3/4 NPT, Blind nuts
Oria M-90
Firestone style 22
Firestone W01-358-7184 / W01 358 7184 / W013587184 / WO1-358-7184 / WO1 358 7184 / WO13587184
Contitech FD 330-22 CI 3/4 NPT
Contitech 63561

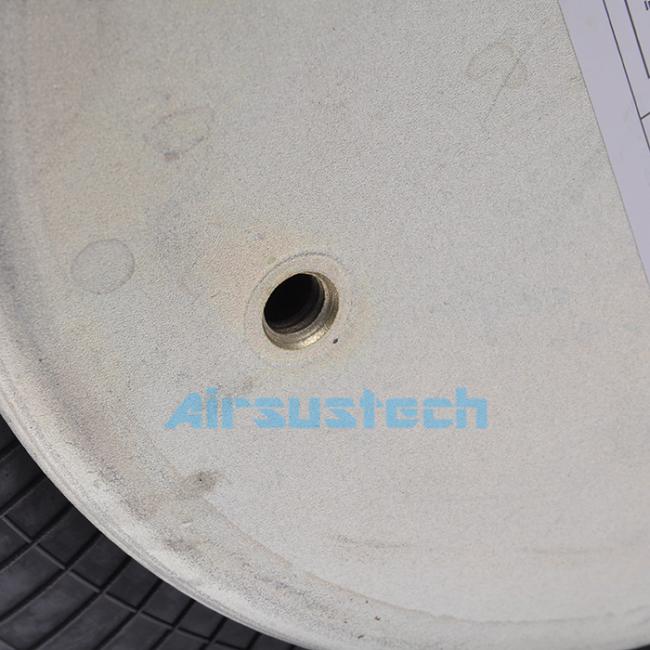

Product Picture
