Bellow Cyliders Festo EB-145-60 Replacement Single-acting Convoluted Industrial Air Springs


Cross Reference


Specifications and Detailed Technical Parameters



B1±0.2(Screw center distacne): 20mm
D1∅max.(Rubber bellow max outer diammeter):145mm
D2∅(Required fitting space):160mm
D3∅(Cover plate diameter):90mm
EE(Compressed air connection): G1/8
H2 min(Minimum installation height): 50mm
H3 max.(Maximum extended end position):110mm
Single-bellows cylinder


About Industrial air springs

Bellows cylinders not only serve a drive function, but can also be used as pneumatic spring elements. By pressurizing and exhausting, the bellows cylinder can realize the function as the driving element. As the stroke increases, the resulting force decreases relative to the retraction force of the bellows and can be used as a cushioning element if the bellows cylinder is supplied with a constant pressure. The structure of the cylinder is simple, consisting of two metal plates plus a reticulated airbag. There are no sealing elements, nor any moving mechanical elements. The airbag cylinder is a single-acting cylinder, but it does not need to be reset by spring force, but by external force.


Applications

Air springs, also known as pneumatic or air suspension systems, are used in a variety of applications for their ability to provide cushioning and vibration isolation. They are commonly used in vehicles, such as trucks and buses, as well as in industrial equipment and machinery. Air springs can also be used as actuators in amusement park rides , packaging equipment, conveyor belts, and scissor lifts, among others. In addition to their suspension and damping capabilities, air springs are also known for their ability to adjust to varying loads and provide a smooth ride.


Other replacement we could offer

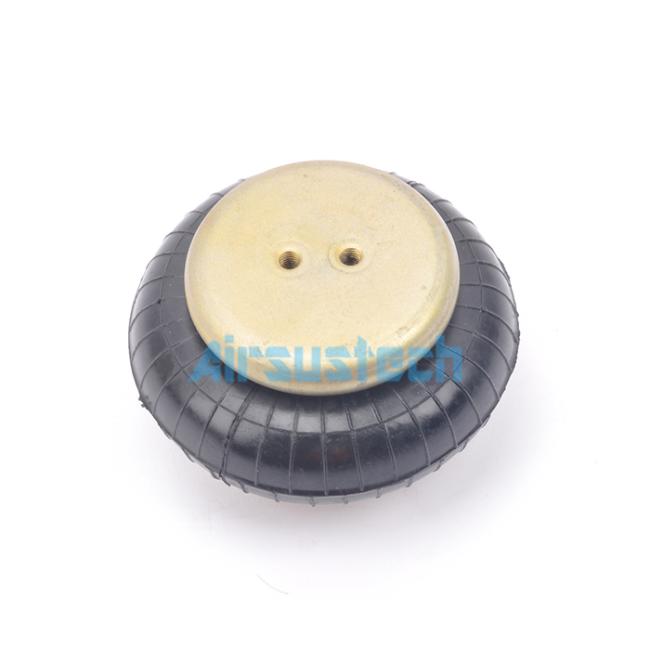

Industrial air springs product pictures
