Firestone W01-358-5135 Style 121 Industrial Air Springs Bellows Single Convoluted Air Bag For Shaker Test Systems

Firestone W01-358-5135 Style 121 Single Convoluted Air Bag Industrial Air Springs Bellows For Shaker Test Systems


Cross Reference

Specifications and Tecnical Data

Rubber bellow diameter: 480mm

Height: 122mm

Opnening diameter: 374mm

Single Convolution

Industrial air springs

Rubber material

HS Code 8708809000

Sample is available

100% Condition New

Without girdle ring

Without rubber bumper

Two Ply Bellows

Air spring assembly

We also could offer Firestone assembly number W01-358-6966

Firestone style 121

Two Ply Bellows

Ribbed neck aluminum bead rings, 45 mm bolts, nuts, washers

Firestone assembly order number:  W01-M58-6966 / W01 M58 6966 /W01M586966 /  WO1-M58-6966 / WO1 M58 6966 /WO1M586966

Ribbed neck aluminum 7/8 bolts, nuts, washers

Firestone assembly order number: W01-358-7197 / W01 358 7197 / W013587197 / WO1-358-7197 / WO1 358 7197 / WO13587197

Industrial air springs for shaker test systems

An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.
Our standard two ply air spring bellows is actually made up
of four layers:
a. An inner liner of calendered rubber.
b. One ply of fabric reinforced rubber.
c. A second ply of fabric-reinforced rubber (with the
cords at a specific bias angle to the first ply).
d. An outer cover of calendered rubber

Advantages

1. Low noise, low function loss and easy maintenance
2. Simple structure, reliable operation, light weight, small size, easy assembly

Except from shaker test systems, industrial air springs are also used in industrial machinery, mining equipment, and other heavy-duty applications. Some common applications of air springs include:

Vehicle suspension: Air springs are used in place of traditional metal springs to provide a smoother ride and better handling. They are commonly used in luxury cars, buses, and trucks.

Industrial machinery: Air springs are used to isolate vibration and provide cushioning in heavy-duty machinery such as stamping and pressing machines.

Mining equipment: Air springs are used in mining equipment to dampen vibration and shock, and to provide suspension for heavy loads.

Agricultural machinery: Air springs are used in agricultural machinery such as tractors and harvesting equipment to improve ride comfort and reduce operator fatigue

Overall, the versatility of air springs makes them a popular choice for many applications that require suspension, cushioning, and isolation from shock and vibration.

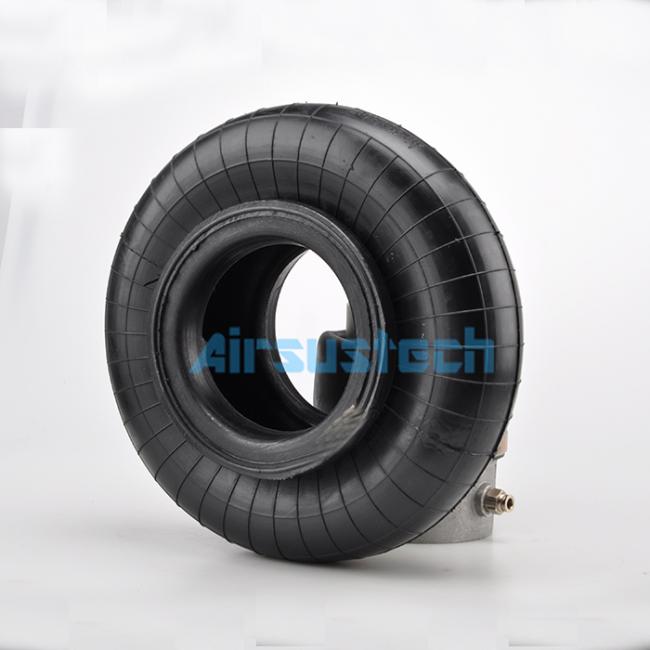

The image of industrial air springs
