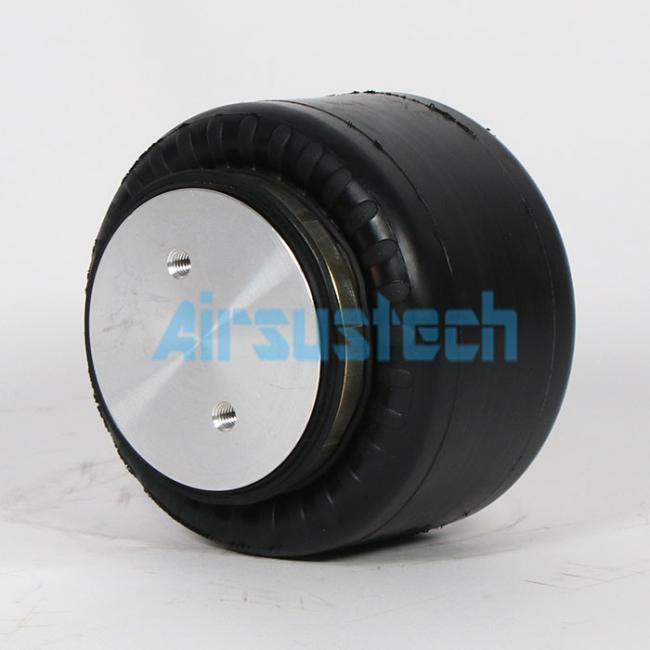

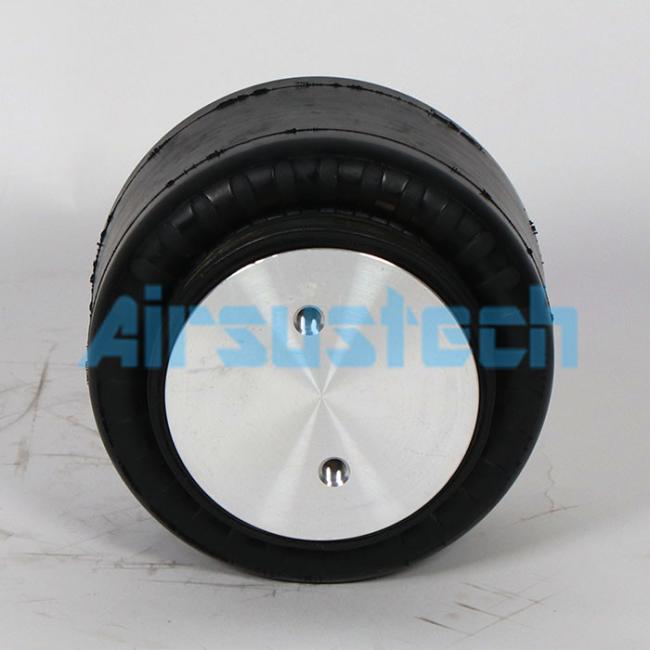

Goodyear 1B5-520 Single Convoluted Air Bags 579-912-520 Rubber Air Suspension Spring 55-90MM Stroke Length
Product Description:
55-90MM Stroke Length Goodyear 1B5-520 Single Convoluted Air Bags 579-912-520 Rubber Air Suspension Spring
Features:
- Product Name: Convoluted Air Spring
- Warranty: 1 Year
- Material: Rubber+Aluminum Alloy
- Shape: Curved
- Cover Plate Material: Aluminum Alloy
- Noise Level: Lowest
- Air Connections: G1/4
- Maximum Deflection: 2-3 Inches
- Air Suspension Bags: Provides reliable and stable air suspension
Technical Parameters:
| Parameters | Details |
|---|---|
| Stroke Length | 55-90 MM |
| Bolts | M8 |
| Maximum Deflection | 2-3 Inches |
| Package Size | 24*24*12CM |
| Pressure Range | 0-0.8MPA |
| Air Connections | G1/4 |
| Bumper Type | No |
| Air Port Thread Standard | UNC |
| End Plate Diameter | 3.4in |
OEM Numbers:
| Manufacturer | Part Number |
| Goodyear | 1B5-520 |
| Goodyear | 1B 5-520 |
| Goodyear | 1B5 520 |
| Goodyear | 1B 5520 |
| Goodyear | 579912520 |
| Goodyear | 579 912 520 |
| Goodyear | 579-912-520 |
| Enidine | YI-1B5-520 |
| Enidine | YI 1B5 520 |
Support and Services:
We offer technical support and service for Convoluted Air Spring products. Our knowledgeable team of experts are available to help you select the right product for your application and answer any questions you may have.
Our team can provide assistance in the following areas:
- Product selection and sizing
- Installation and maintenance advice
- Troubleshooting and repair
- Replacement parts identification and ordering
- Product design and customization
Packing and Shipping:
Packaging and Shipping for Convoluted Air Spring:
The Convoluted Air Spring is packaged in a secure box or pouch, depending on the size. The product is then placed inside a corrugated shipping box filled with packing peanuts or other cushioning material. The product is then shipped via a reliable carrier such as UPS, FedEx, or DHL.
