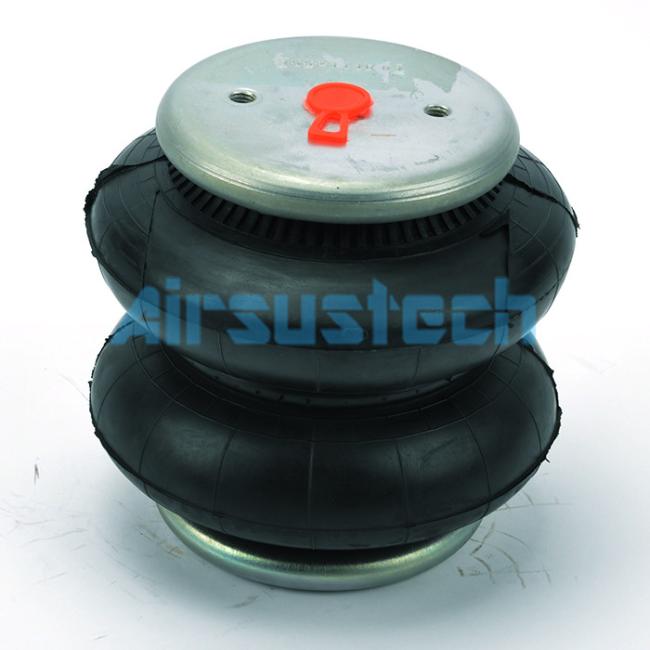

Cross Goodyear NO. 2B7-541 Air Suspension Kits 579923525 Double Convolution Rubber Air Spring
Cross Goodyear NO. 2B7-541 Air Suspension Kits 579923525 Double Convolution Rubber Air Spring
Product Description:
The AIRSUSTECH 2B7-541 is a high-quality air spring produced in the factory. Not only is it suitable for trucks and trailers, it is also a good choice for vibration conveyors, such as large dryers, centrifugal separators, coordinate measuring tables and machinery, and commercial washing machines. This particular airspring, the 2B7541 dual scroll airbag, can actually completely substitute for Goodyear's 2B7-541. The technical parameters remain the same - indicating how incredibly reliable the AIRSUSTECH 2B7-541 is.
This gas scroll industrial air spring is composed of flexible pieces connected to the end of the bracket. The pieces are clamped into place using a top plate and a bottom plate, then adjusted to a suitable diameter. As for what the specific dimensions are, Goodyear's rubber bellows is 579-92-3-525.
Features:
- Product Name: Suspension Air Springs
- Air Fitting: 1/4 NPTF
- Installation: Easy Installation
- Warranty: One Year
- Material: Rubber And Steel
- Specialized: Air Struts, Air Suspension Components
Technical Parameters:
| Parameter | Value |
|---|---|
| Packaging | Strong Carton Packaging |
| Warranty | One Year |
| Design Height | 6-7 Inches |
| Cross Goodyear Top Plate | ASC-92-8-171 |
| Pressure Range | 0.2-0.8 MPA |
| Color | Black Rubber And White Zinc Iron Cover Plate |
| Product Name | Suspension Air Springs |
| Top Cover Plate Screw (Nut) Tooth | 2 Pcs X 3/8-16UNC |
| The Working Stroke | MIN 75 Mm To MAX 230 Mm |
| Cover Plate Diameter (Width) | 132 Mm /5.31 Inches |
| Air Suspension Kits | Y |
| Suspension Air Bags | Y |
| Suspension Air Springs | Y |
Goodyear Air Spring:
| 2B6-530 | 579-92-3-510 | 2B6-535 | 579-92-3-515 |
| 2B7-540 | 579-92-3-525 | 2B7-542 | 79-92-3-525 |
| 2B7-548 | 579-92-3-526 | 2B8-550 | 579-92-3-530 |
| 2B14-479 | 578-92-3-356 | 2B14-476 | 578-92-3-356 |
| 2B14-470 | 578-92-3-356 | 2b14-462 | 578-92-3-356 |
