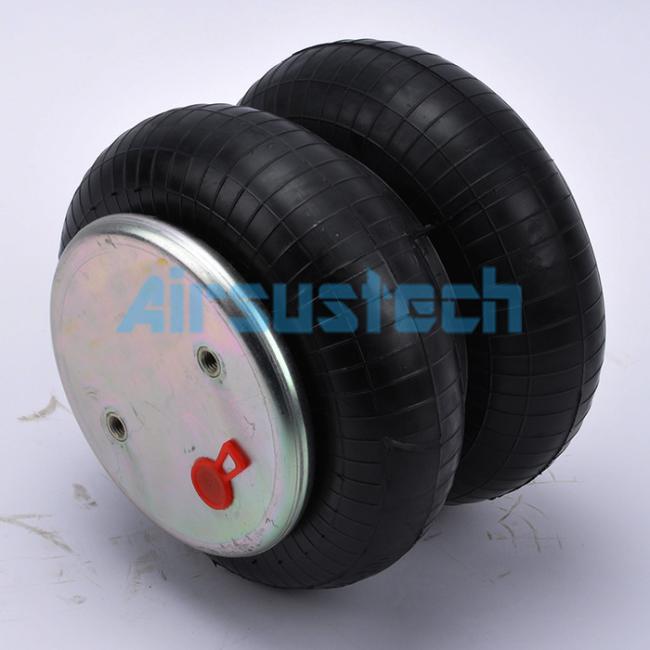

Rubber Air Ride Suspension 2B9-200 Goodyear W01-358-6910 Firestone Bellows Air Spring
Rubber Air Ride Suspension 2B9-200 Goodyear W01-358-6910 Firestone Bellows Air Spring
Product Description:
AIRSUSTECH 2B6910 repalce Goodyear 2B9-200,Made of high-quality rubber material, high performance and excellent shock absorption ability.
Features:
AIRSUSTECH Air Springs are designed to replace many uncommon OEM spring models to provide more convenience for automotive users. These OEM springs include:
- Goodyear – 2B9-200
- Automann – ABSP2B12R-6910
- Conti – 64267
- FD – 200-19 320
- Dayton – 354-6910
- Dina – A-8127-19
- Firestone – 6910
- W013586910 – W013586910
- Granning – 1371
- HDA – PMABG-6910B
- Hendrickson – 45843-3, B-8768
- Int’l/Navistar – 554783C1
- Load Guard – SC2011
- Masa – 227138412
- Prevost – 63-0173
- R&S Truck & Bodyr – 1027405
- Ridewell – 1003586910C
- S-4512-C
- Springride – 2B9-492
- Taurus – AS218-6910
- Triangle – 4320
- TRP – AS69100
- Watson & Chalin – AS-0001
AIRSUSTECH is dedicated to providing automotive users the most effective and reliable air springs available while eliminating the stress and hassle of searching for hard-to-find OEM springs.
Technical Parameters:
| Product Attribute | Specification |
|---|---|
| Assembly Weight | 3.5 KG |
| Air Fitting | 1/4 NPTF |
| Threaded Hole | 3/8-16UNC |
| Operating Temperature | -40℃ To +70℃ |
| Max Outer Diameter | 251mm |
| Min Outer Diameter | 224mm |
| Load Capacity | According To The Sizes |
| Cover Plate Diameter (Width) | 160 Mm |
| Pressure Range | 0.2-0.8 MPA |
| Stroke | 75mm-260mm |
Customization:
Support and Services:
We provide technical support and service for our Suspension Air Springs products. Our experienced technical teams are always available to provide timely help and advice, whether you need assistance with product selection, installation, maintenance or troubleshooting. Our customer service representatives are also available 24/7 to answer any questions you may have.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
