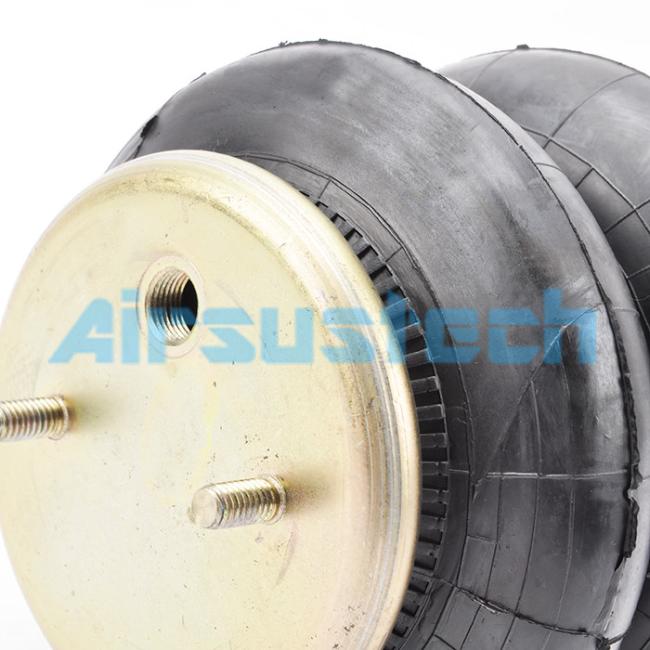

2B9-251 Goodyear Rubber Bellows W01-358-6948 Firestone Air Spring With 3/8-16 Tapped Hole

Product Description:

With a net weight of 3.5 kg, the product is lightweight and easy to handle. This air spring is ideal for a variety of applications, including heavy trucks, trailers and buses. It is designed to meet the needs of the most demanding applications and is durable. Goodyear air spring interchanges are compatible with a variety of other air springs, making it easy to find a replacement if needed.

Features:

Part Number: Goodyear 2B9-251

Bellows Number: 578-92-3-206

Here are some cross reference numbers for different air springs:

• Firestone Air Spring NO. W01-358-6948
• ContiTech Air Spring NO. FD 200-25 429
• AUTOMANN Air Spring NO. ABSP2B12RA-6948
• LOAD GUARD Air Spring NO. SC2123
• RIDEWELL Air Spring NO. 1003586948C
• TRIANGLE Air Spring NO. 4429
• TRP Air Spring NO. AS69480

Technical Parameters:

Applications:

The Goodyear Air Spring is ideal for use in air bag suspension systems, providing reliable and consistent performance. With a pressure range of 2-8 Bar, this air spring can handle a wide range of loads and weights, making it suitable for use in trucks, trailers, buses, and other heavy-duty vehicles.

The tapped hole on top retainers measures 3/8-16, ensuring a secure and stable fit with other components in your suspension system. The rubber bellows and steel plate construction of the Goodyear Air Spring ensures durability and longevity, even under heavy use and harsh conditions.

W01-358-6948 Firestone Airide Air Spring

Compressed Height: 4.10 inches
Top Plate Number:3101
Top Plate Width:6.31 inches
Piston Number:3100
Piston Width:6.31 inches

Part Number: W01-358-6948

Part Number: W01 358 6948

Part Number: W013586948
