W01-M58-6109 Double Convoluted Air Bags 3/4 BSP Rubber Air Spring For Trucks

Product Description:

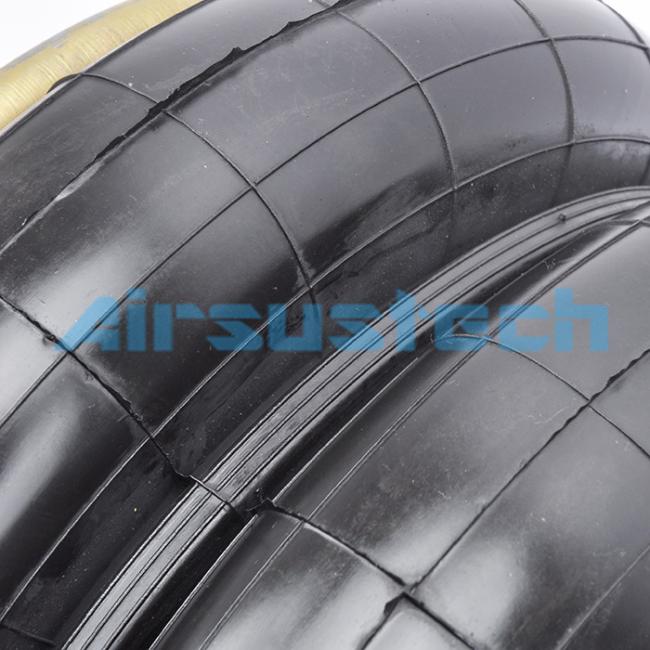

The air spring features a unique dual convolution shape that provides excellent load support and stability. It is designed to work with a variety of different vehicles and can be customized to your specific needs. Whether you are looking for a simple airbag system or a more complex setup, the air spring has what you need.

Features:

Cross Reference

Blind nuts of 3/4 BSP size are often used in the assembly of Firestone components. One such assembly can be identified by its unique Firestone assembly number, which is W01-M58-6109 (as well as several other variations). This assembly is also associated with the Firestone Style 233-2 and 233D2.

Another Firestone component is identified by the assembly number W01-M58-6107, which also has various other naming variations. This component is a Type 2 Bead Plate with (4) M8 Blind Nuts on 159MM Centers and features a 1/4 BSP Offset Port. It is also associated with the 233D2 Style AirSpring.

Generally speaking, these Firestone components rely on the use of Blind Nuts to ensure the components remain securely fastened together even under extreme conditions of use.

Technical Parameters:

Design Height: 286 mm

Load:

At 3 Bar (kN): 16.5

At 5 Bar (kN): 41.4

At 7 Bar (kN): 43.4

Natural Frequency:

At 5 Bar (fn(Hz)): 1.4

% of Isolation:

At Forced Frequency 7 Hz: 95.2%

At Forced Frequency 13 Hz: 98.8%

At Forced Frequency 25 Hz: 99.7%

Maximum Diameter: 394 mm

Maximum Height: 76 mm

Maximum Stroke: 264 mm

Minimum Usable Height: 340 mm

Force:

At 5 Bar, at Stroke of 25 mm (kN): 44.2

At 5 Bar, at Stroke of 50% of Max Stroke (kN): 39.8

At 5 Bar, at Stroke of Maximum Stroke (kN): 23.8

Applications:

• Heavy-duty trucks
• SUVs and pickup trucks
• Tow vehicles
• Recreational vehicles
• Trailers

These air bags provide a range of benefits, including improved ride quality, increased stability, and better load-carrying capability. They are particularly useful in situations where heavy loads are being carried or when towing a trailer.
