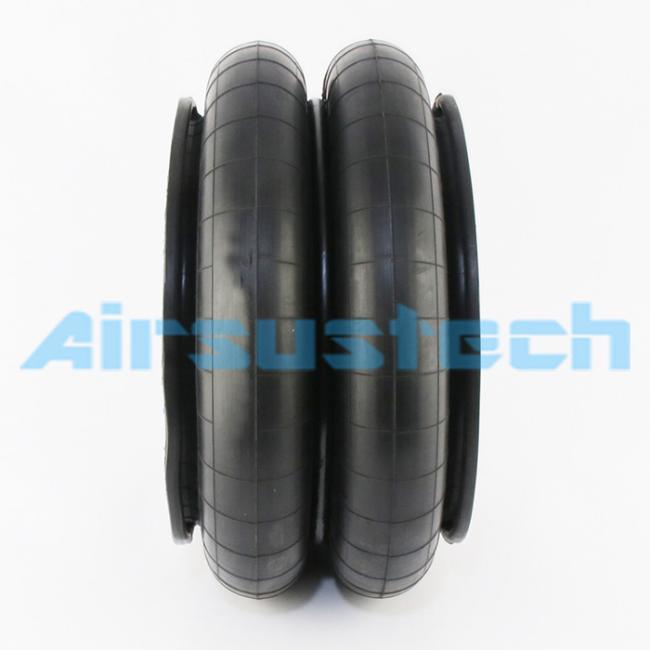

Firestone 246mm Stroke Air Bags W01-358-0219 Suspension Air Spring Rubber Bellows

Product Description:

Made from high-quality materials, these airbags are engineered to withstand extreme conditions. The burst pressure of these airbags is greater than 3.0 MPA, ensuring they can handle heavy loads without any problems. The maximum height of these airbags is 330 mm and the minimum height is 84 mm.

Features:

Technical Parameters:

2-Ply Standard Cord

Bead Ring Type: 4

Dim. C (Bolt Circle Diameter mm): 419

# of Bolts (each ring): 24

Design Height (mm): 241

Load (at Design Height) at 3 Bar (kN): 34.9

Load (at Design Height) at 5 Bar (kN): 80.6

Load (at Design Height) at 7 Bar (kN): 84.5

Natural Frequency (@5 Bar)(fn(Hz): 1.6

% of Isolation at Forced Frequency 7 Hz: 93.9

% of Isolation at Forced Frequency 13 Hz: 98.5

% of Isolation at Forced Frequency 25 Hz: 99.6

Maximum Diameter @ 7 Bar (mm): 508

Maximum Height (mm): 84

Maximum Stroke (mm): 183

Minimum Usable Height (mm): 267

Force in kN @ 5 Bar at Stroke of 25 mm: 86.3

Force in kN @ 5 Bar at Stroke of 50% of Max Stroke: 75.1

Force in kN @ 5 Bar at Stroke of Maximum Stroke: 52.1

Style Cross-Ref High Strength Style Number: 218

Applications:

Whether you need to lift heavy equipment, support a vehicle suspension system, or cushion machinery, AIRSUSTECH airbags can do the job. These airbags are designed to provide a smooth and stable ride, even over rough terrain.

AIRSUSTECH airbags are used in a variety of industries and applications, including construction, mining, transportation, and agriculture. They are also ideal for use in emergency vehicles and military equipment.

Packing and Shipping:

Product Packaging:

• Air Bags
• Installation Manual
• Mounting Hardware

Shipping:

• Shipping Method: Standard Ground
• Estimated Delivery Time: 5-7 Business Days
