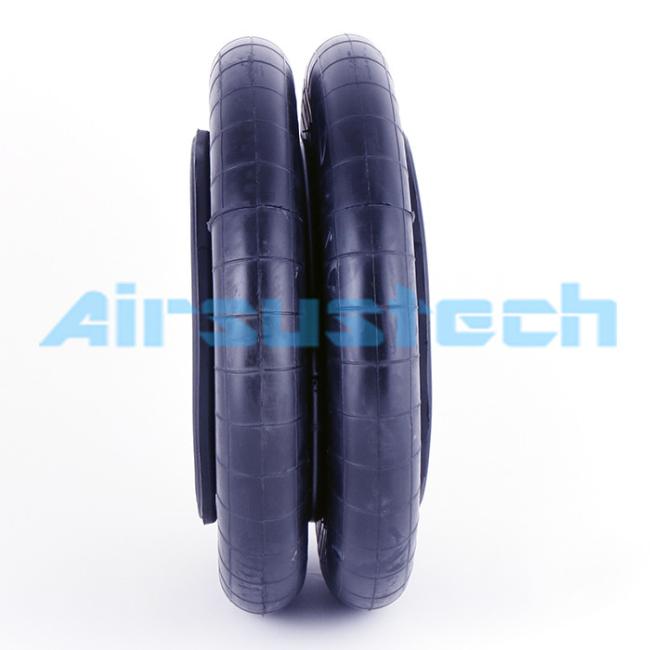

5.9Kg Rubber Bellows Only Firestone Air Springs W01-358-7928 Lift Airbag
Price:
USD159.9/PC-USD199.9/PC
MOQ:
2
Delivery Time:
5-8 Working Days
Brand:
AIRSUSTECH
Product Description
Product Description:
| Style 210 | Blind nuts, 1/4 BSP | W01-M58-6212 |
| Blind nuts, 3/4 BSP | W01-M58-6210 | |
| High Strength Constuction | Countersunk steel bead rings, bolts, nuts, washers | W01-M58-6976 |
| Rubber bellows only | W01-358-7928 |
Features:
| Product Name | Firestone Air Bags |
| AIR Presuss | 0.2 M PA-0.8 M PA |
| BLIND NUTS | M8 X 1.25 ；15 Mm DEEP |
| NET Weight | 5.6 Kg |
| Design Height | 193.0 MM |
Technical Parameters:
Here are the details for the end closure:
- Bead ring Type: 4
- Bolt Circle Diameter (inches): 9
As for the AIRMOUNT ISOLATOR, the following are its specifications:
- Design Height: 9.5
- Material: 4-Ply, High Strength Cord
- Maximum Diameter @ 100 PSIG (inches): 12.9
- Maximum Height (inches): 10.1
- Maximum Stroke (inches): 6.9
- Minimum Usable Height (inches): 3.2
FAQ :
1. Does the product have a warranty?
A:Yes, our products are equipped with a one-year warranty. If there are quality problems during the one-year period, you can contact customer service at any time.
2 .Can i use my own logo and design on products?
A:YES,OEM is welcomed.
3.I can not find out the items what i want for from your webdsite, can you offer the products i need?
A: YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
