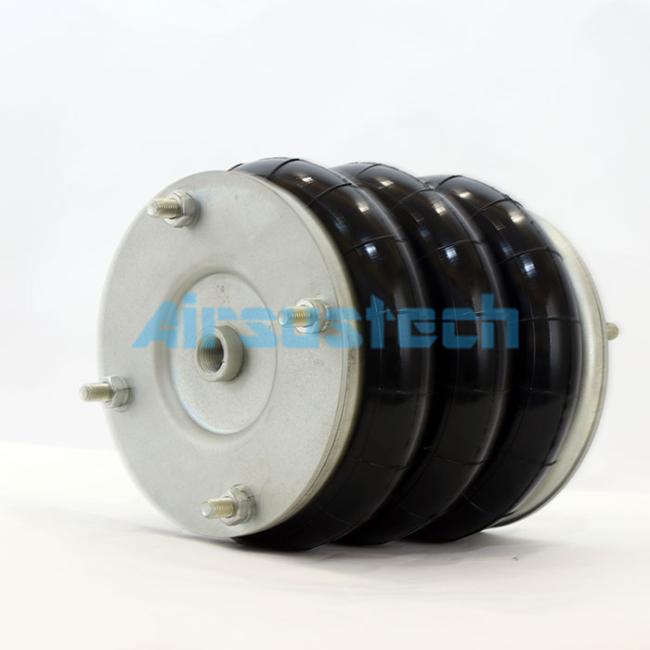

W01-R58-4056 Triple Convoluted Air Spring Contitech FT 138-26 DS for Industries

Industrial equipment for damping of the air spring technology application, effectively improving the work efficiency of equipment and the safe use of equipment life. Air spring is not like an ordinary cylinder type device having internal control rod, piston, or sliding type sealing device, thus greatly reducing the use of a pneumatic or hydraulic cylinder cost, for customers to win more economic benefits.

Features:

1. Product Name: Industrial Air Spring

2. Application: Industrial machine

3. MAX DIA. of Rubber Size: 215 MM

4. Space Required: 240 MM

5. Materials: Various rubbers-"Standard" and "Chlorobutyl"(high temperature); mild steel which was protected by zinc passivate and yellow chromate

Here are four different part numbers for various products:

Technical Parameters: AIRSUSTECH 3B8×3T

• The maximum stroke of these air springs is 250mm, while the maximum load they can handle is up to 23.5 daN.
• The diameter of the Air Spring can reach a maximum of 215mm, with a maximum height of 350mm and a minimum height of 100mm. It's recommended to operate the Air Spring at a maximum height of 305 mm for optimal performance.

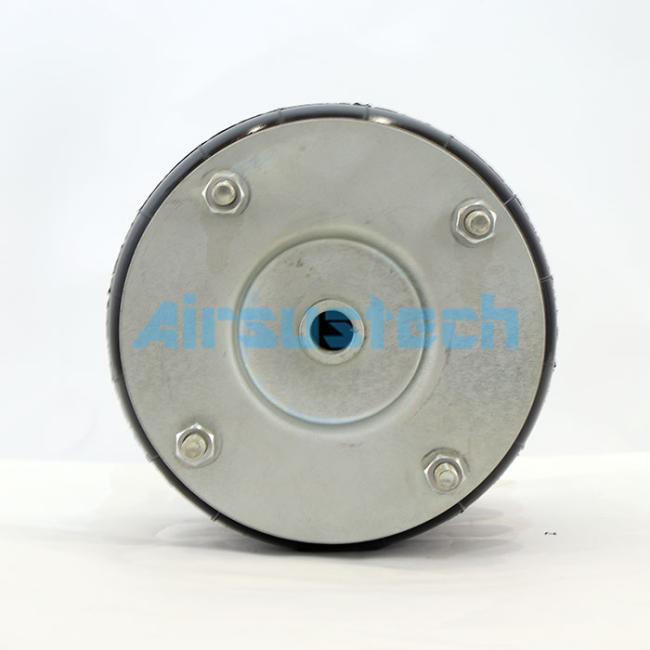

• The plate diameter is 184 mm and mounting bolts require a 4xM10 setup.
• These air springs have an air injection of 1/2" BSP.
• The temperature of these industrial air springs is from -40℃ to +70℃.
• The material of these air springs is made of various kinds of rubbers - "Standard" and "Chlorobutyl", and the metal parts are mild steel which are protected by zinc passivate and yellow chromate.This indicates the temperatures at which the product can operate reliably and safely without suffering any damage or performance degradation.
• The above features make the Air Spring FT 138-26 DS, FT138-26 DS, W01-R58-4056, W01R584056, W01 R58 4056, M/31083, M31083, SP 2863, SP2863 suitable for various working environments.

Applications:

PULP SIZING PRESS
GLUING MACHINE
CALENDER FORCE STICK
MISSILE ASSEMBLY FIXTURE

GATE VALVE OPERATOR
REEL ASSEMBLY MACHINE
FORMING PRESS
CABLE TENSIONER

MOLD SEPARATOR
KNIFE TYPE SRING REGULATOR
PLANISHING MACHINE
ROLLER FRICTION BRAKE

STRAIGHTENING MAHCINE
GOLD STAMPING MACHINE
BELT LIFT TENSIONER
SPECIAL PAPER PRESS STICK

LEATHER MACHINERY
HOPPER
CASE SEALER
INDUSTRIAL WASHING MACHINE

PRECISION INSTRUMENT TABLE
PIPE THREAD MAKING MACHINE
CONVEYER
FANS AND MOTORS

Why Choose Us?

1. The low cost, wide range of specifications.
2. The long life, no maintenance and lubrication, without the need for internal control rod or piston.
3. No friction effect, soft medium.
4. The bending capacity, lateral load capacity, compact original height.
